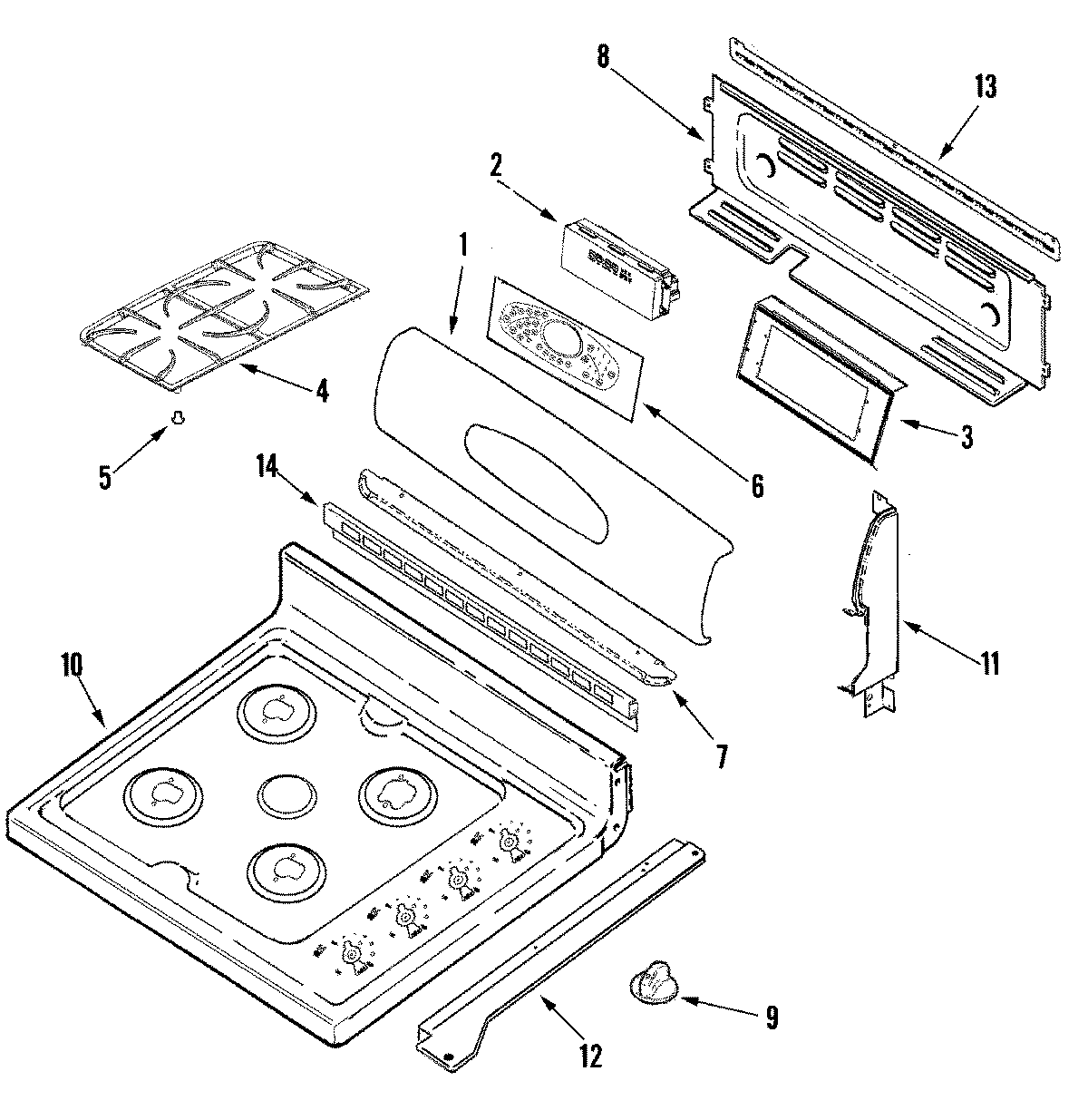

MGR6751BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 2602N352-09
2	WPW10166969 Whirlpool Electronic Control Board
3	BRACKET, CLOCK
4	MAY 74010075
5	W10919249 Whirlpool Burner Grate Foot
6	MAY 7728P497-60
7	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
7	MAY 74009800
8	MAY 74011109
8	MAY 71001394
8	WP400021-1 Whirlpool Screw
9	WPL 74010079
9	WP74005934 Whirlpool Grommet
10	MAY 2001N298-09
11	MAY 74010202
11	WP98008545 Whirlpool Screw
11	MAY 74010201
11	WP74003976 Whirlpool Screw
12	MAY 74007366
12	MAY 74007369
12	MAY 74007367
13	SCREW
13	MAY 74010084
14	MAY 7101P147-60
14	MAY 74009797
