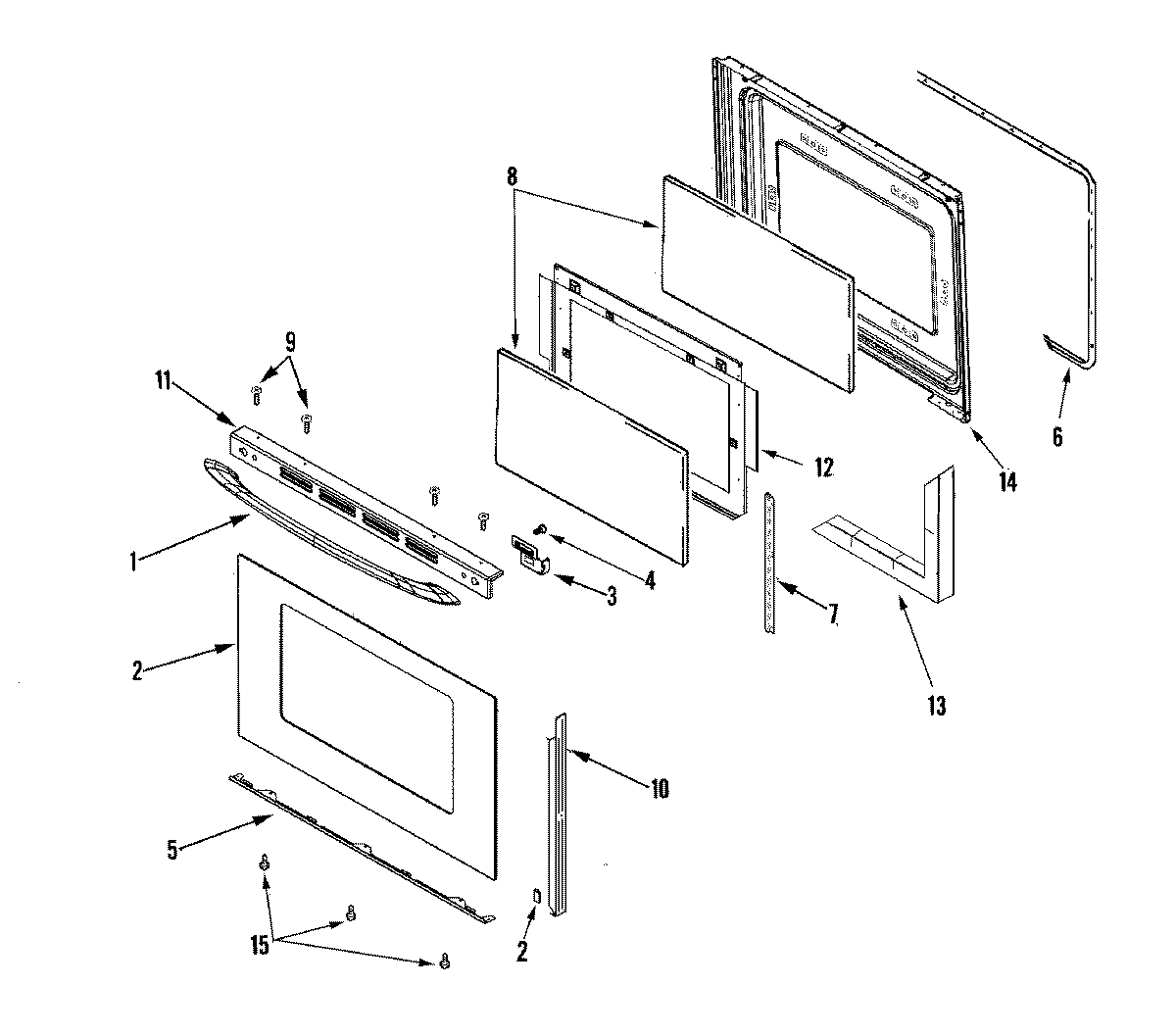

MGR6751BDB 03 – DOOR (LOWER)

MGR6751BDB 03 – DOOR (LOWER)

Written by

in

MGR6751BDB 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011767 Whirlpool Door Handle
2MAY 12002395
3WP74005546 Whirlpool RU Spacer
3WP74006515 Whirlpool Washer Screw
33801F832-45 Whirlpool Bracket
3SCREW (10ABX1/4P TR ZN)
33801F831-45 Whirlpool Bracket Assembly
5SUPPORT, GLASS (BLK)
6GASKT-DOOR OVEN
73801F886-51 Whirlpool Mounting Bracket
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F117-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
10WP98008545 Whirlpool Screw
10WP3608F116-70 Whirlpool Door Trim
11MAY 74009689
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14LINING, OVEN DOOR
14SCREW
14NUT, SNAP (ROUND-WHT)
14NUT, SNAP (ROUND-BLK)
15SCREW, 8 X 1/2
