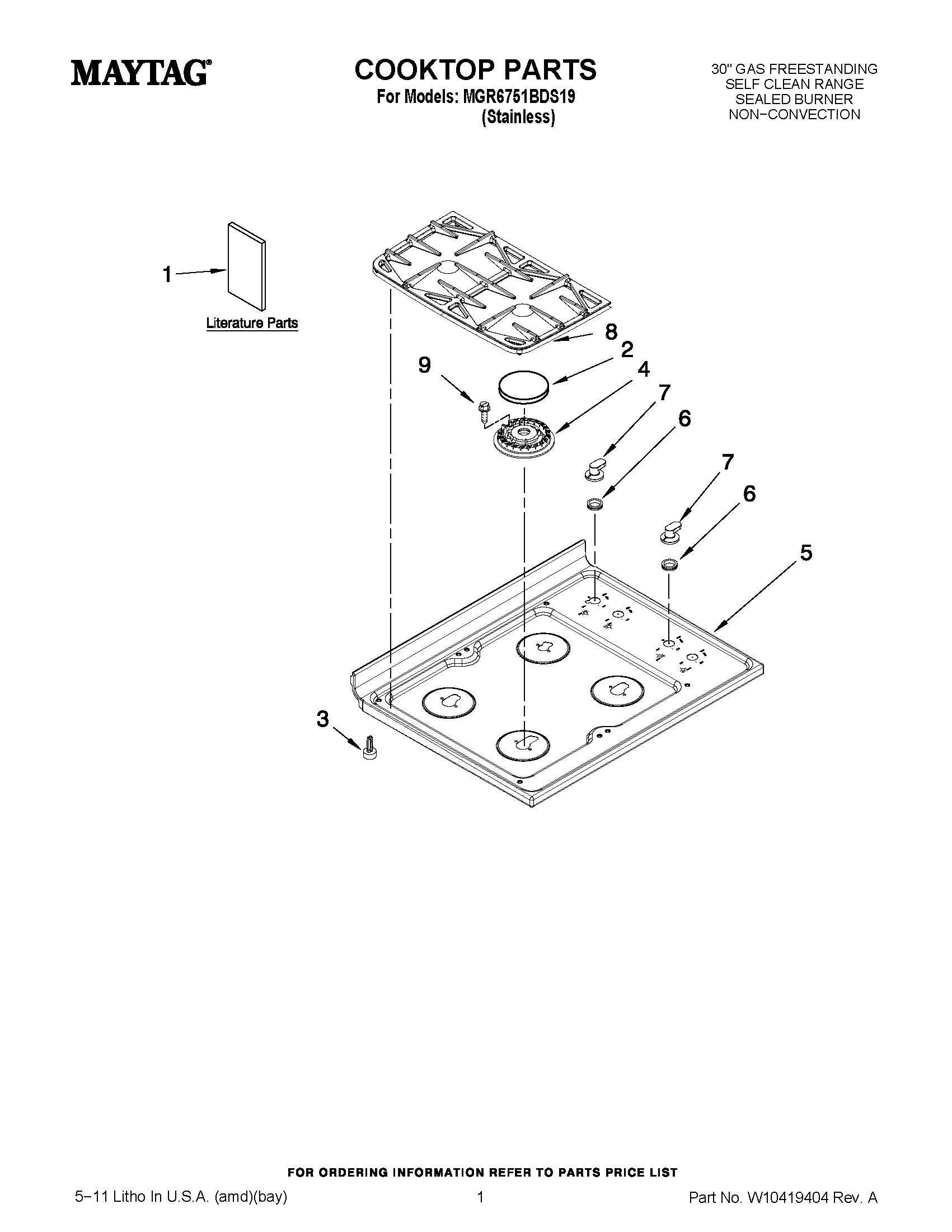

MGR6751BDS19 01 – COOKTOP PARTS

MGR6751BDS19 01 – COOKTOP PARTS

Written by

in

MGR6751BDS19 01 – COOKTOP PARTS

Products

PositionProduct
1MAY 8119P218-60
1MAY 8101P623-60
1MAY 8113P739-60
2CAP, BURNER (BLACK (LF))
2CAP, BURNER (BLACK (LR/RR/RF))
2CAP, BURNER (BLACK (1))
2CAP, BURNER (BLACK (3))
3GLIDE, MAIN TOP
4BURNER (LR/RR/RF)
4HEAD, BURNER (RF)
5COOKTOP
6GROMMET, KNOB (4)
7MAY 7733P423-60
8MAY 7518P321-60
9SCREW
