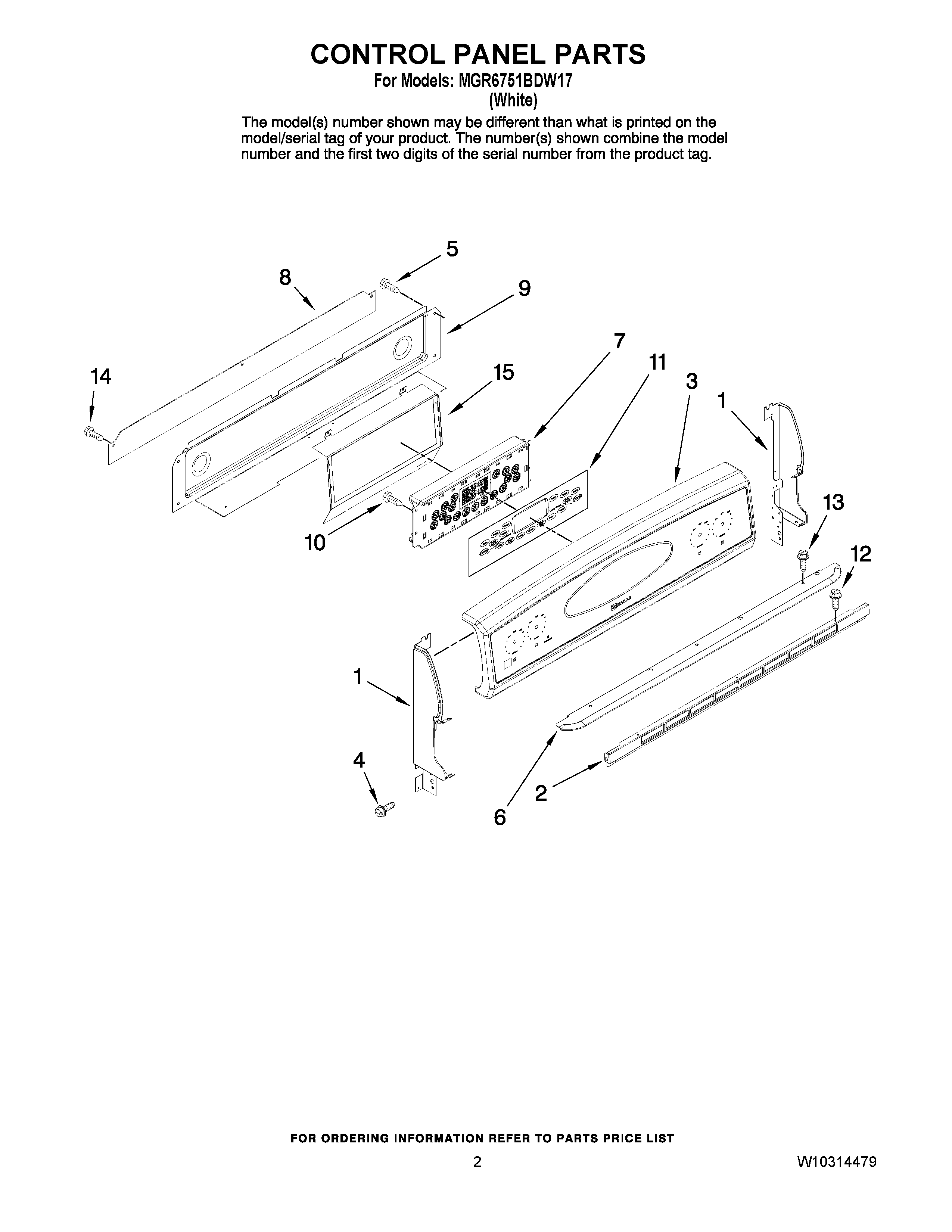

MGR6751BDW17 02 – CONTROL PANEL PARTS

MGR6751BDW17 02 – CONTROL PANEL PARTS

Written by

in

MGR6751BDW17 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY 3807F733-71
1	MAY 3807F734-71
2	MAY 3608F121-37
3	MAY 2602N352-81
4	Screw (2) (White)
5	MAY 7101P434-60
6	SHIELD, VENT (WHITE)
7	MAY W10166969
8	MAY 8036P025-60
9	MAY 4005F805-51
10	MAY 7101P500-60
11	OVERLAY, CONTROL (WHITE)
12	MAY 7101P313-60
13	MAY 7101P609-60
14	SCREW (8BX3/8-NI)
15	MAY 3801F844-51
