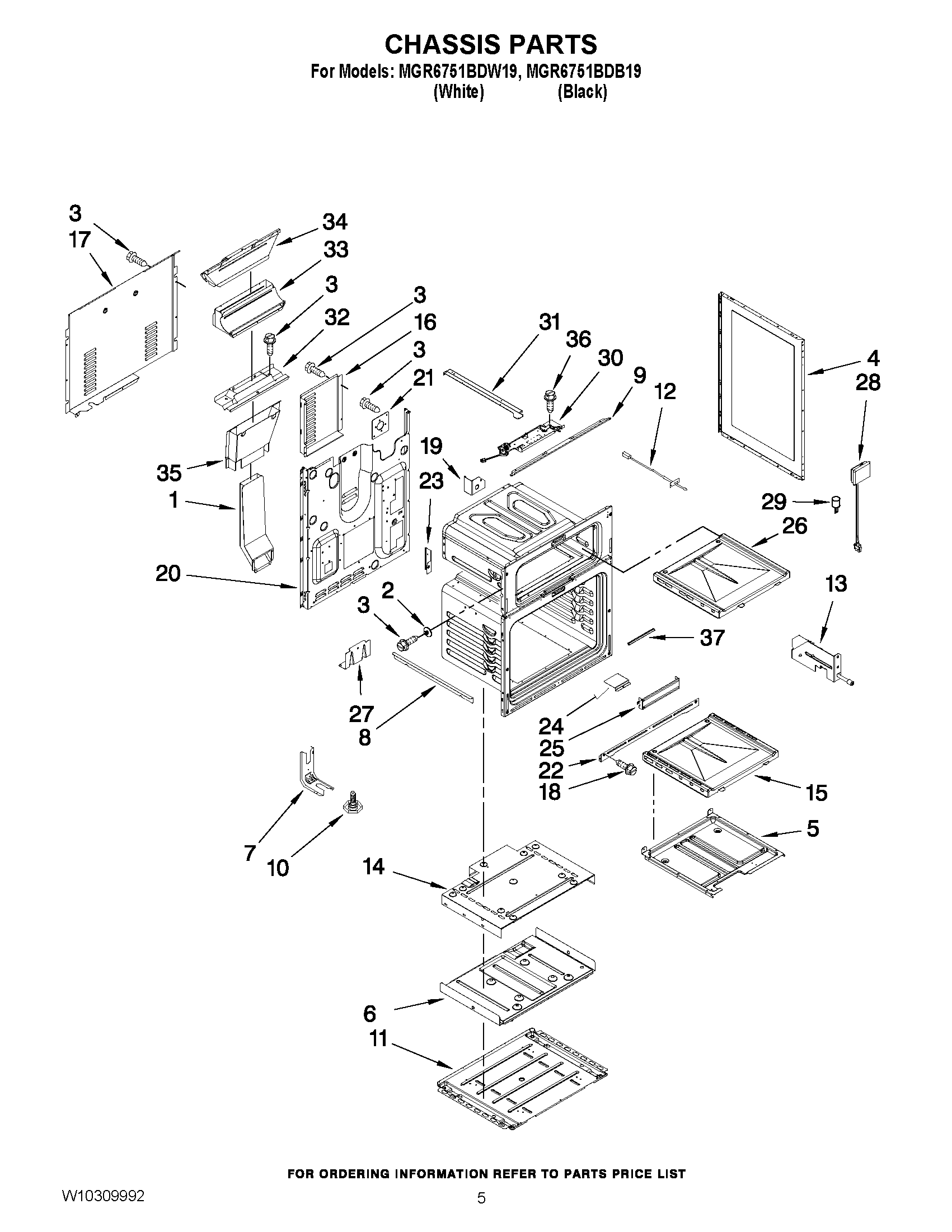

MGR6751BDW19 04 – CHASSIS PARTSadmin2025-04-26T09:14:28+00:00MGR6751BDW19 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P413-60 |
| NI | MAY 7002P310-60 |
| NI | MAY 7002P415-60 |
| NI | MAY 7002P419-60 |
| 1 | MAY 3826W047-45 |
| 2 | MAY 8004P024-60 |
| 3 | MAY 7101P388-60 |
| 4 | Panel, Side (White) (2) |
| 4 | Panel, Side (Black) (2) |
| 5 | MAY 3401F090-45 |
| 5 | MAY 3401F091-45 |
| 6 | RETAINER, INSUL BOTTOM |
| 7 | BRACKET, ANTI-TIP |
| 8 | MAY 3823F015-51 |
| 9 | MAY 3801F924-80 |
| 10 | Leg, Leveling |
| 11 | MAY W10312768 |
| 12 | Sensor, Oven |
| 12 | MAY 7430P045-60 |
| 13 | MAY 7450P108-60 |
| 14 | COVER, RETAINER |
| 15 | MAY 2205F051-19 |
| 16 | MAY 4005F743-51 |
| 17 | COVER, MAIN WIRE |
| 18 | MAY 7101P636-60 |
| 19 | MAY 3801F706-51 |
| 19 | MAY 3801F705-51 |
| 20 | MAY W10180198 |
| 21 | MAY 3807F647-45 |
| 22 | MAY 3608F088-71 |
| 22 | TRIM, KICKPLATE (BLACK) |
| 23 | MAY 3807F643-45 |
| 23 | MAY 3807F644-45 |
| 24 | MAY 4005F736-45 |
| 25 | MAY 3601F308-19 |
| 26 | MAY 2205F055-19 |
| 27 | MAY W10260703 |
| 28 | ASSEMBLY, LIGHT |
| 29 | BULB, OVEN |
| 30 | MAY 8002P077-60 |
| 31 | BOTTOM, BURNER BOX (RIGHT) |
| 31 | BOTTOM, BURNER BOX (LEFT) |
| 32 | MAY 3601F321-50 |
| 33 | MAY 3826W042-45 |
| 34 | MAY 4022W055-45 |
| 35 | MAY 3826W052-45 |
| 36 | Screw (Black) (2) |
| 37 | MAY 7212P066-60 |
