MGR6751BDW19 05 – UPPER DOOR PARTS – Aparts

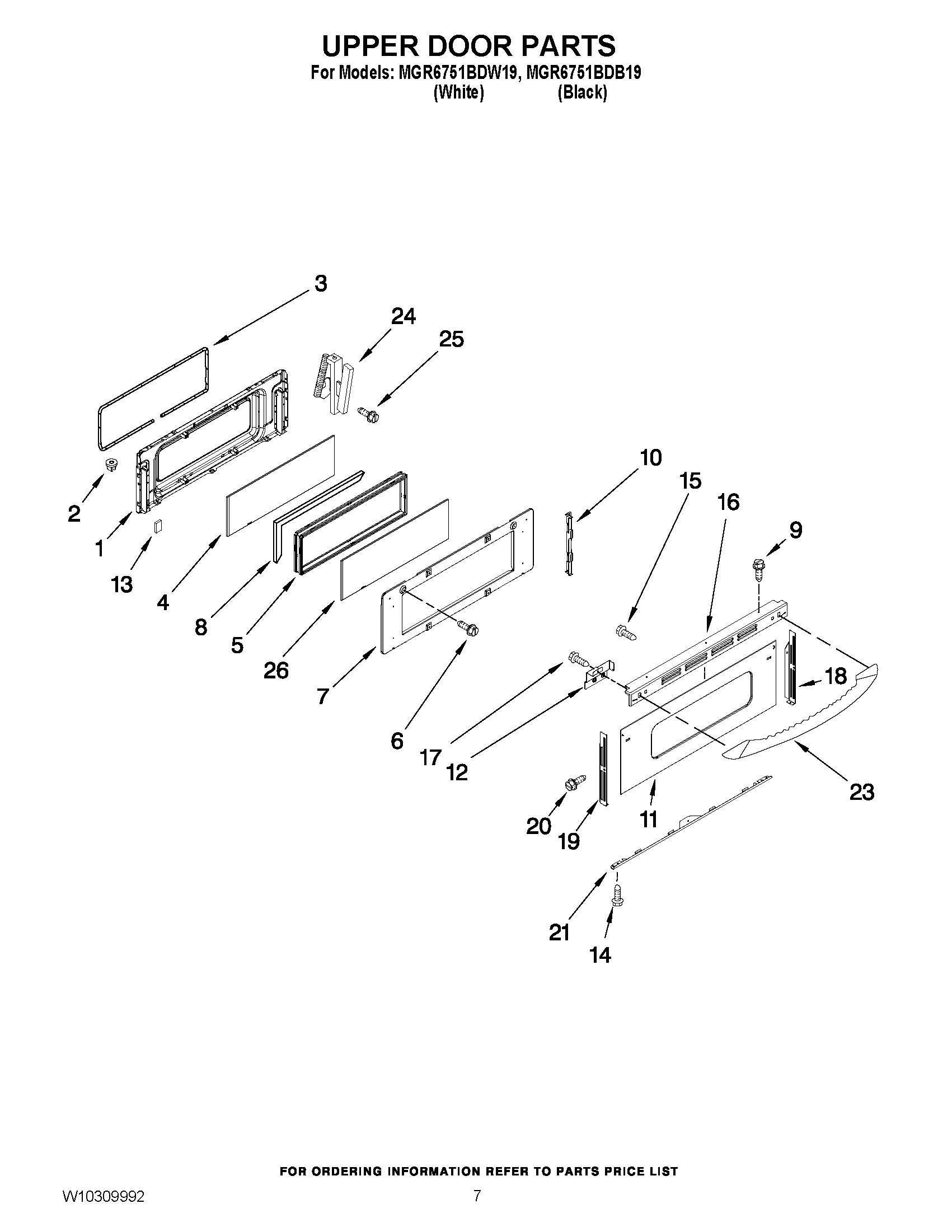

MGR6751BDW19 05 – UPPER DOOR PARTS

Products

Position	Product
1	MAY 2402W248-19
2	MAY 7103P141-60
3	MAY 7201P091-60
4	MAY 7902P521-60
5	MAY 7907P034-60
6	MAY 7101P388-60
7	Baffle, Door
8	MAY 7002P488-60
9	Screw (2) (Black)
10	MAY 3804F179-45
11	KIT, DOOR GLASS (INCL. FOIL TAPE)
11	KIT, DOOR GLASS (INCL. FOIL TAPE)
12	MAY 3801F831-45
12	MAY 3801F832-45
13	MAY 8010P130-60
15	MAY 7101P376-60
16	MAY 3608F141-71
16	MAY 3608F141-70
17	MAY 7101P681-60
18	MAY 3608F118-70
18	MAY 3608F118-71
19	MAY 3608F119-70
19	MAY 3608F119-71
20	MAY 7101P636-60
21	MAY 3807F708-71
21	MAY 3807F708-70
23	MAY 7701P516-60
23	MAY 7701P517-60
24	MAY 7106P148-60
25	SCREW (10-24X5/16-NI)
26	MAY 7902P520-60
