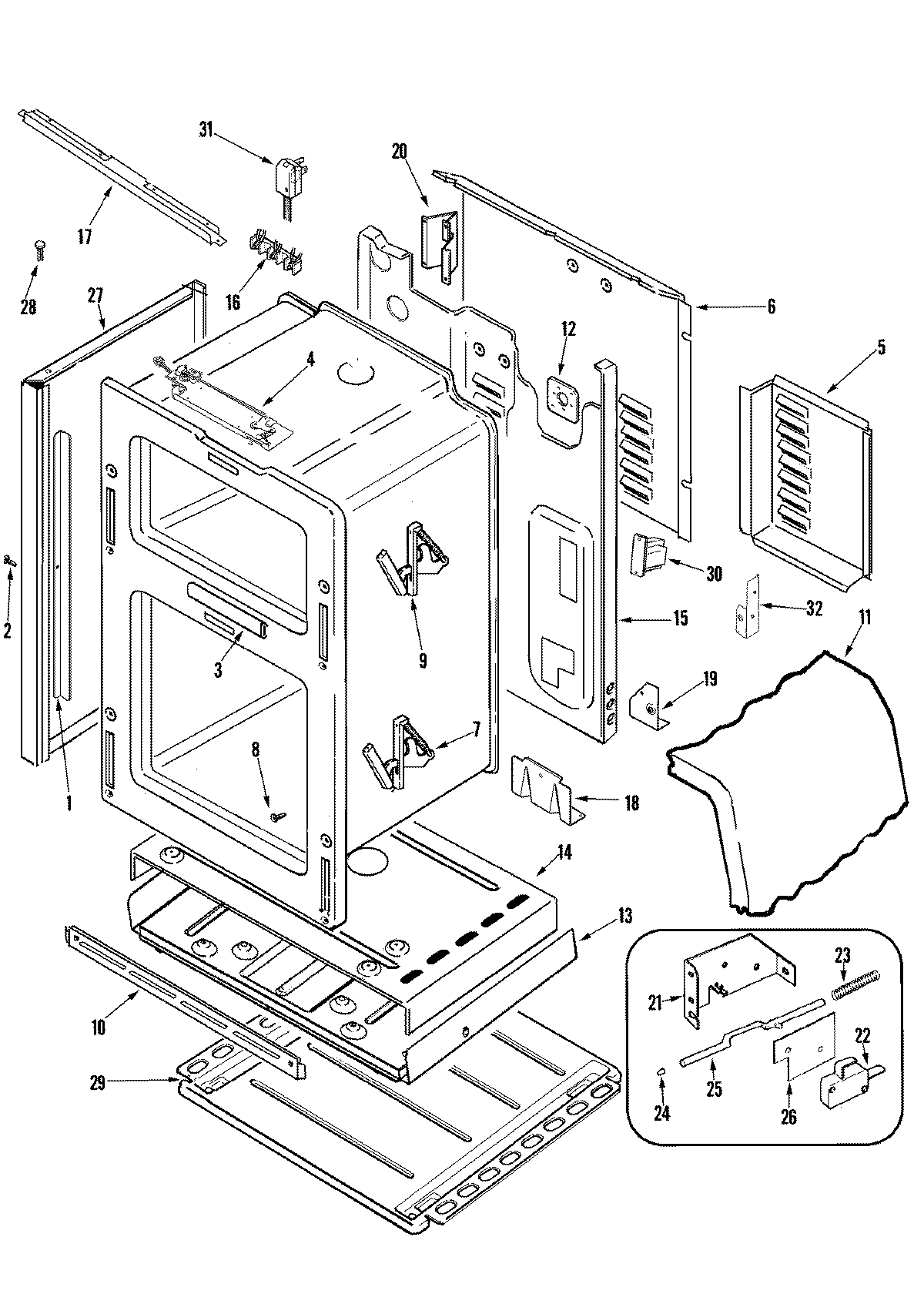

MGR6772BDB 01 – BODY

Products

Position	Product
1	3823F015-51 Whirlpool Spacer
3	MAY 74007428
4	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
4	74007429 Whirlpool Door Latch Assembly Primary Lock
5	MAY 74007430
6	MAY 74007431
6	MAY 74007964
7	HINGE-OVEN DOOR
8	SCREW (10-24X5/16-NI)
9	MAY 74004523
10	SCREW (8ABX1/2“-BLK)
10	MAY 74007436
11	74007440 Whirlpool Oven Upper Insulation Wrap
11	74010091 Whirlpool Lower Back Insulation
11	MAY 74007441
11	MAY 74007439
12	MAY 74007450
13	MAY 74007443
14	MAY 74007444
15	MAY 74007445
16	WPW10245259 Whirlpool Terminal Block
17	MAY 74003384
18	MAY 74005500
19	MAY 74007447
19	MAY 74007446
20	3801F691-51 Whirlpool Bracket
21	BRACKET, SWITCH ACTUATOR
21	WPY706189 Whirlpool Stove Screw
22	MAY 7101P330-60
24	MAY 74001631
25	ROD, DOOR LIGHT SWITCH
26	MAY 74001872
27	MAY 74003283
27	SCREW
28	MAY 74001663
29	MAY 74007449
30	MAY 74005456
30	SCREW (8BX3/8-NI)
31	MAY 74007373
32	MAY 74007500
32	MAY 74007499
33	MAY 8004P024-60
33	MAY 74007476
