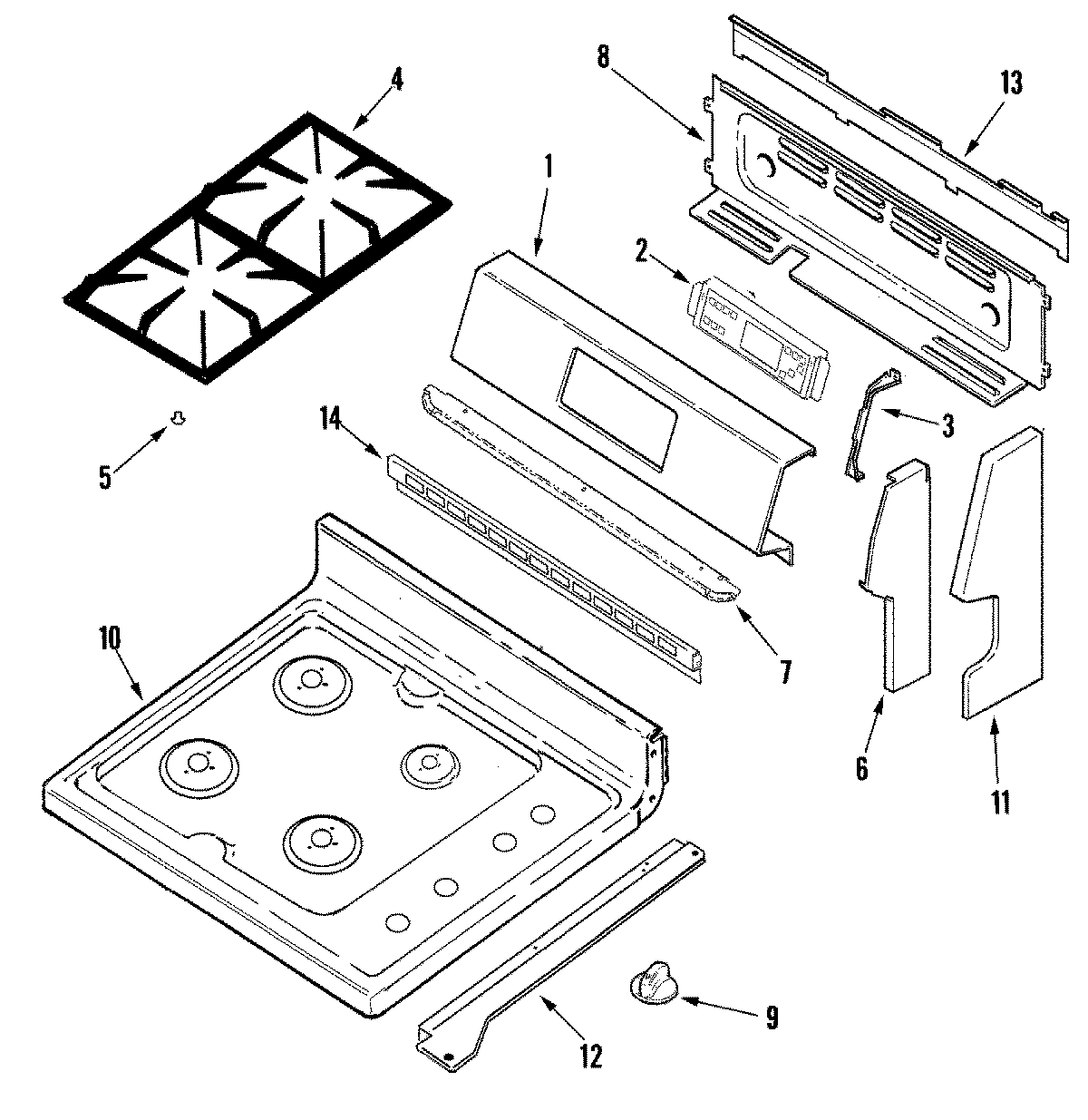

MGR6772BDB 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6772BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6772BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74007346
2MAY 74007350
2MAY 74007954
3MAY 74005388
3WPY706189 Whirlpool Stove Screw
4MAY 74007353
5W10919249 Whirlpool Burner Grate Foot
6MAY 74005393
6MAY 74005392
774003975 Whirlpool Screw P1 (8ABX3/8-BLK)
7MAY 74007357
8MAY 74004963
9MAY 74009232
9WP8008P071-60 Whirlpool Grommet
10MAY 74001663
10MAY 74007365
11MAY 74004547
11MAY 74004546
11WP98008545 Whirlpool Screw
11MAY 74002432
12MAY 74007366
12MAY 74007367
12MAY 74007369
12SCREW
13MAY 74006376
13SCREW (8BX3/8-NI)
14SCREW (6ABX.25-ZN)
14MAY 74007435
