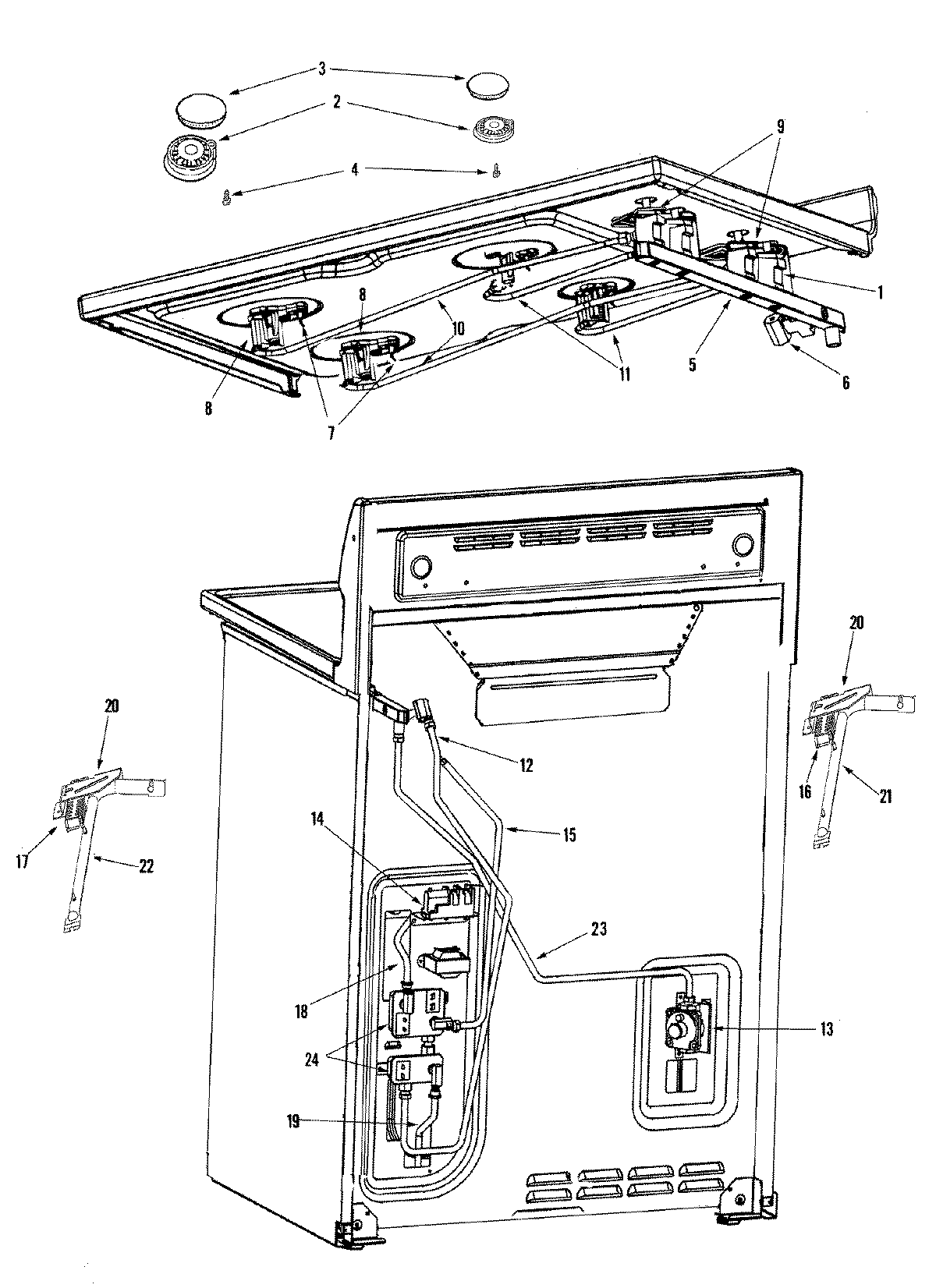

MGR6772BDB 05 – GAS CONTROLS

Products

Position	Product
1	MAY 12002268
1	MAY 12002269
1	MAY 74009238
1	MAY 71003231
1	MAY 74009237
1	MAY 74009236
1	MAY 74007386
1	MAY 74007384
1	12002270 Whirlpool Valve Kit and Screw 16K
1	MAY 74008812
2	WPW10406243 Whirlpool Burner Head Auxiliary 6K
2	WPW10406878 Whirlpool Burner Base (16K)
2	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3	WPW10154101 Whirlpool Burner Cap
3	WP3191898 Whirlpool Surface Burner Cap Black
3	WP74007415 Whirlpool Burner Cap
4	WP400021-1 Whirlpool Screw
5	MAY 74007423
5	MAY 74009235
6	MAY 74007388
6	MAY 74009239
6	MAY 12002271
7	WP8523793 Whirlpool Oven Surface Igniter
8	WP74007961 Whirlpool Holder
8	MAY 74007392
8	WP7527P021-60 Whirlpool Orifice Holder
8	WP7527P023-60 Whirlpool Orifice Holder
9	MAY 74006296
9	MAY 74007393
9	MAY 74007394
9	MAY 74009241
9	12002790 Whirlpool Igniter Switch with Shield AS
9	WP74006297 Whirlpool Wire Connector
9	12002788 Whirlpool Igniter Switch with Shield AS
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 74009240
10	MAY 74007402
11	MAY 74007403
12	MAY 74009243
12	MAY 74007401
13	MAY 74007387
14	SCREW
14	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15	MAY 74009910
15	MAY 74007400
15	MAY 74009244
16	WP74007966 Whirlpool Broil Igniter
17	WP74007399 Whirlpool Igniter B
17	IGNTR-OVEN
18	MAY 74007424
19	MAY 74007451
19	MAY 74007425
20	MAY 74007426
21	MAY 74007404
22	NUT, WING
22	MAY 74007405
23	MAY 74009248
23	MAY 74007409
24	MAY 74007408
25	MAY 12002435
25	MAY 12001986
25	MAY 74007389
25	MAY 74008223
