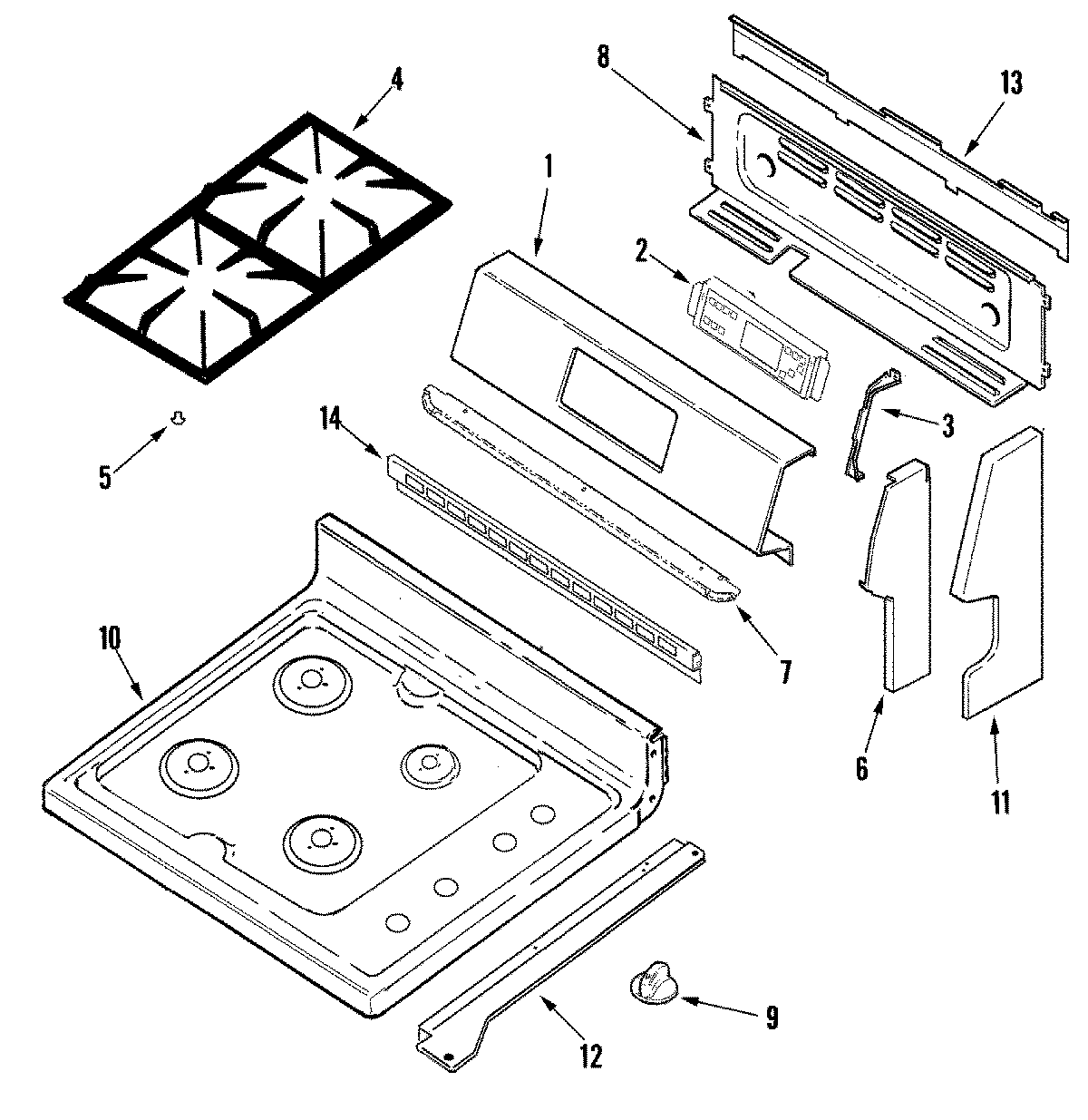

MGR6772BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6772BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6772BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74007347
2MAY 74007953
2MAY 74007351
3MAY 74004985
3MAY 74005388
4MAY 74007355
5W10919249 Whirlpool Burner Grate Foot
6MAY 74005393
6MAY 74005392
7MAY 74007583
7MAY 74007358
8MAY 74004963
9MAY 74009233
9WP8008P071-60 Whirlpool Grommet
9MAY 74007361
10MAY 74007363
10MAY 74001663
11MAY 74005237
11MAY 74005236
11MAY 74004982
11WP74009541 Whirlpool Screw Assembly
12MAY 74007367
12MAY 74007369
12SCREW
12MAY 74007366
13SCREW (8BX3/8-NI)
13MAY 74006376
14SCREW (6ABX.25-ZN)
14MAY 74007433
