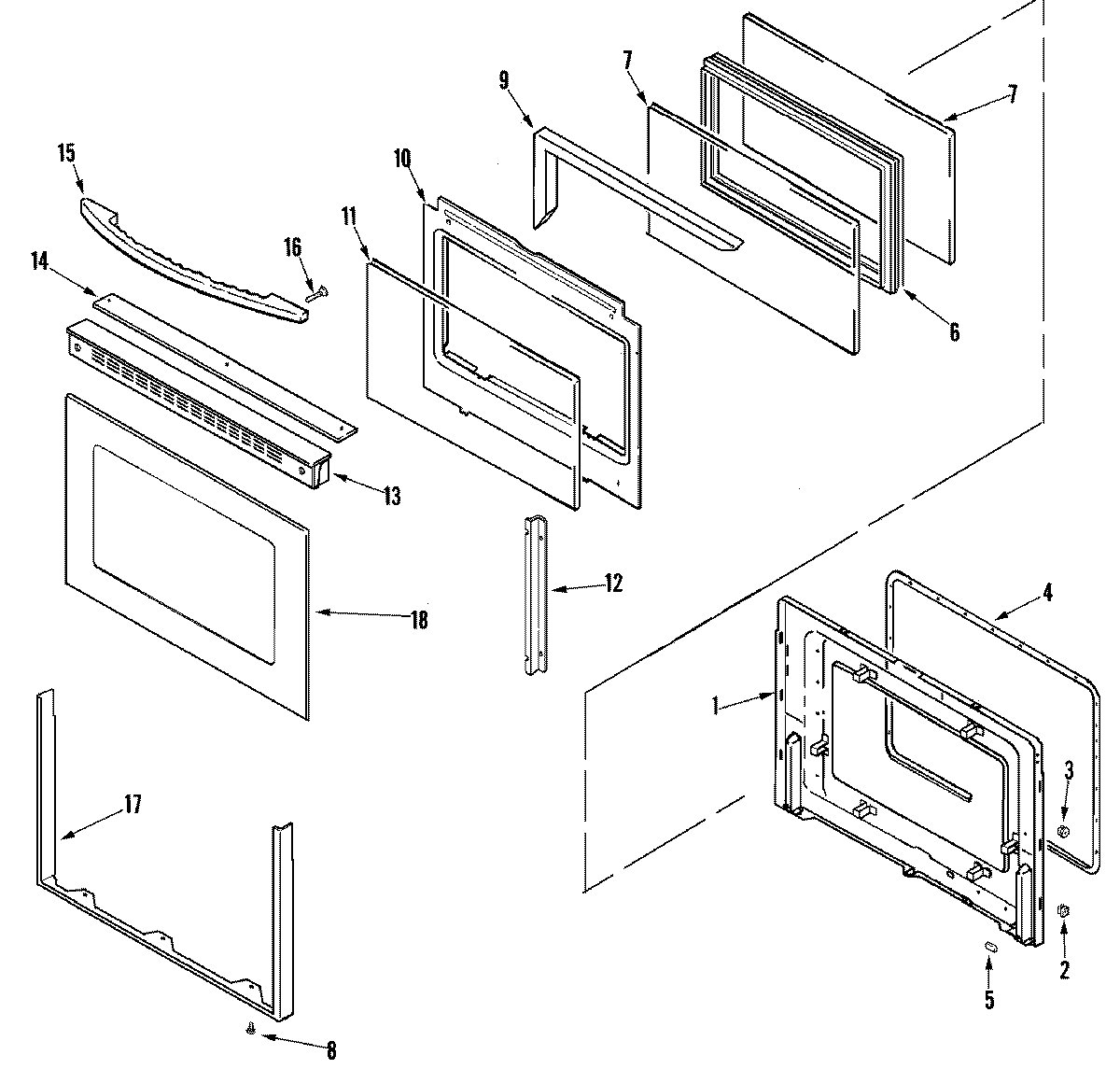

MGR6772BDQ 03 – DOOR (LOWER-BDB/BDQ/BDW)

MGR6772BDQ 03 – DOOR (LOWER-BDB/BDQ/BDW)

Written by

in

MGR6772BDQ 03 – DOOR (LOWER-BDB/BDQ/BDW)

Products

PositionProduct
1MAY 74003642
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74004857
12MAY 74003650
13MAY 74006634
13SCREW
14MAY 74004978
14MAY 74005245
15MAY 74006377
16WP74006515 Whirlpool Washer Screw
17WP74009541 Whirlpool Screw Assembly
17MAY 74005162
18MAY 74006637
