MGR6772BDQ 04 – DOOR (UPPER-BDB/BDQ/BDW) – Aparts

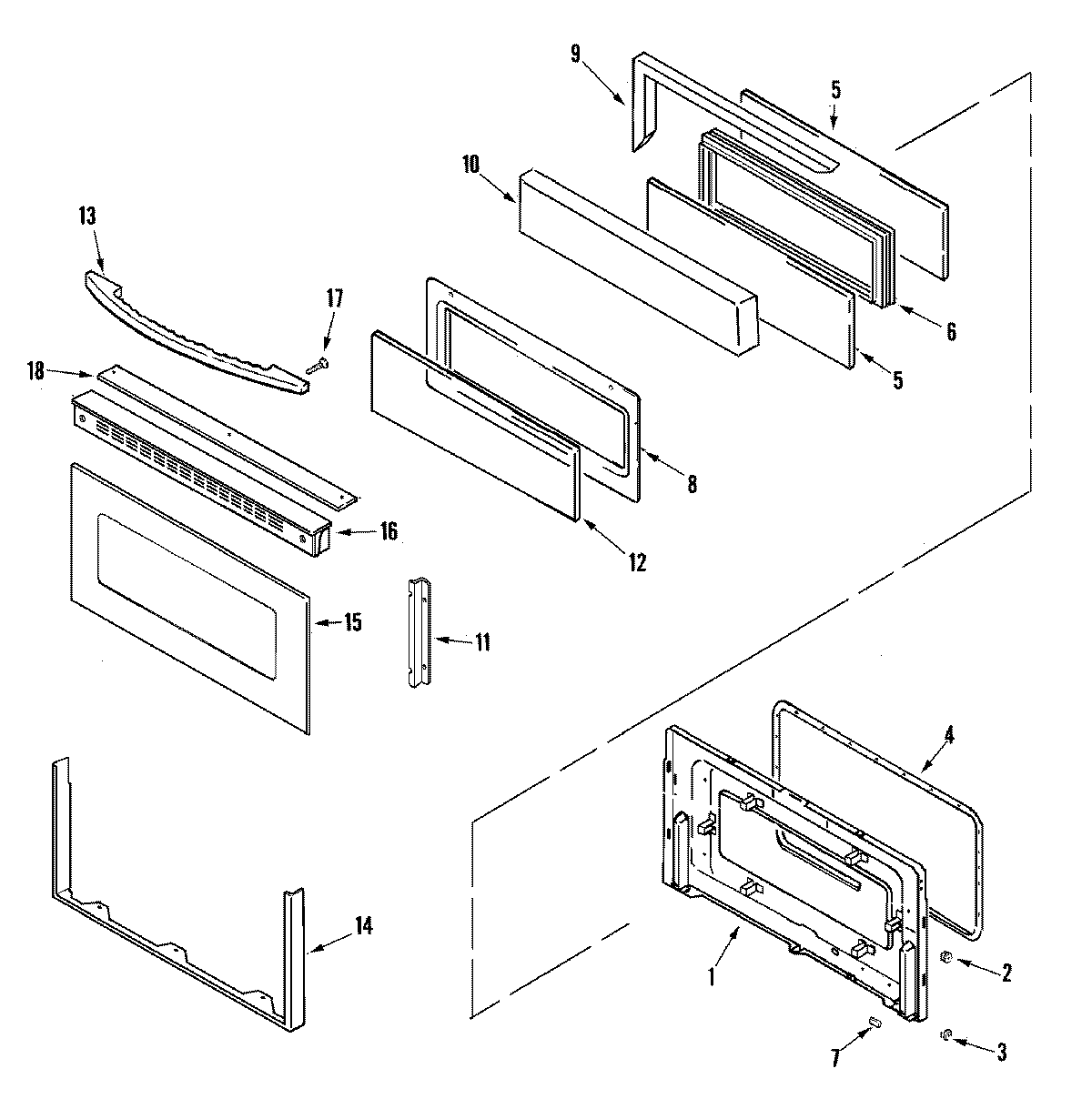

MGR6772BDQ 04 – DOOR (UPPER-BDB/BDQ/BDW)

Products

Position	Product
1	MAY 74004564
2	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	WP7201P091-60 Whirlpool Door Gasket
5	MAY 74004566
6	MAY 74004567
7	WP74005546 Whirlpool RU Spacer
8	MAY 74004568
9	MAY 74004569
10	INSULATION, DOOR (3 X 8.7)
11	MAY 74004592
12	MAY 74004571
13	MAY 74006377
14	MAY 74005242
15	MAY 74006632
16	MAY 74006634
17	WP74006515 Whirlpool Washer Screw
17	SCREW
18	MAY 74004978
18	WP74009541 Whirlpool Screw Assembly
