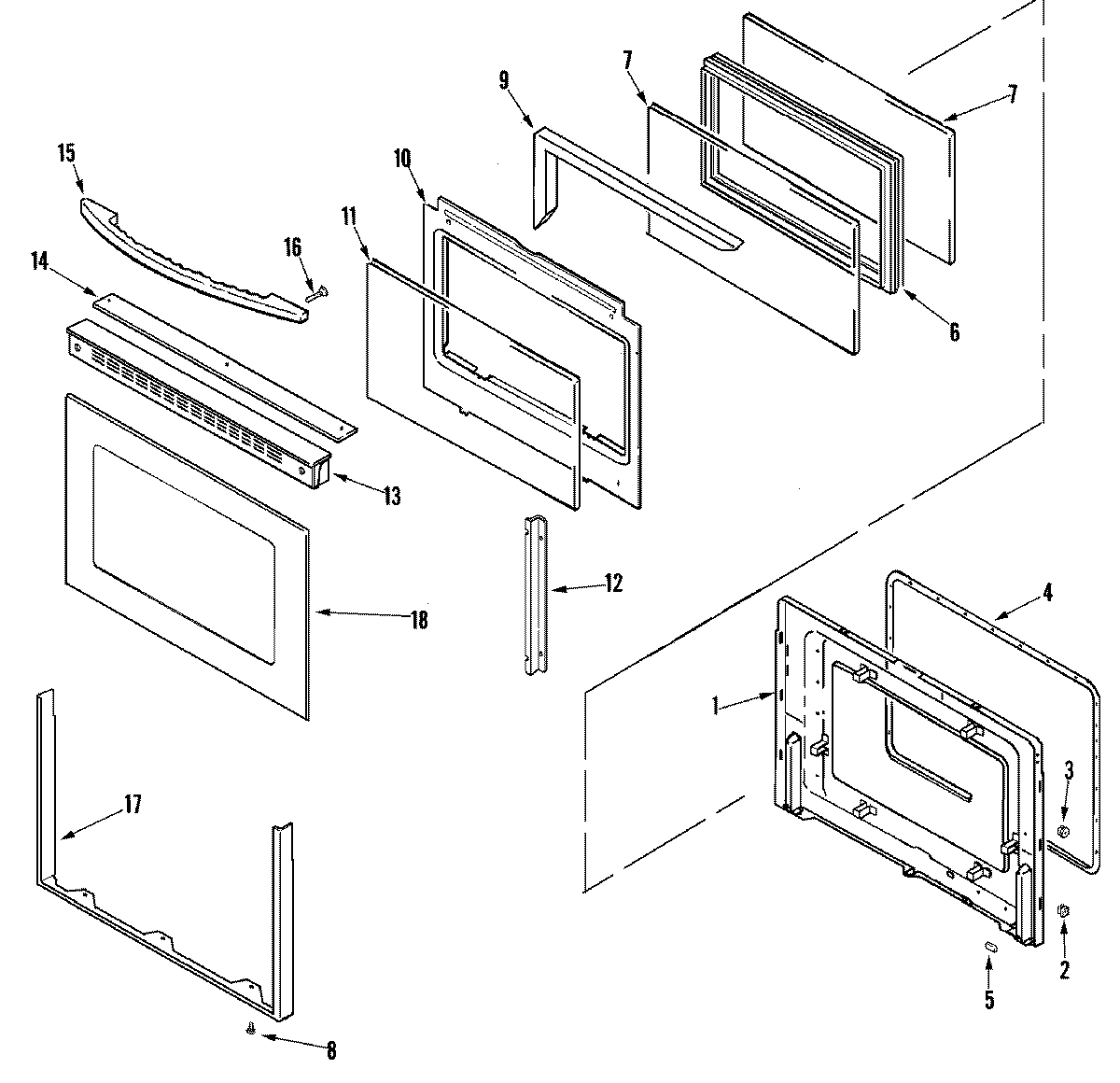

MGR6772BDW 03 – DOOR (LOWER-BDB/BDQ/BDW)

MGR6772BDW 03 – DOOR (LOWER-BDB/BDQ/BDW)

Written by

in

MGR6772BDW 03 – DOOR (LOWER-BDB/BDQ/BDW)

Products

PositionProduct
1MAY 74003642
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74004857
12MAY 74003650
13SCREW
13MAY 74006633
14MAY 7728P094-60
14MAY 74001278
15WP74006381 Whirlpool Door Handle
16WP74006515 Whirlpool Washer Screw
17WP98008544 Whirlpool Screw Assembly
17MAY 74004325
18MAY 74006636
