MGR6772BDW 04 – DOOR (UPPER-BDB/BDQ/BDW)

MGR6772BDW 04 – DOOR (UPPER-BDB/BDQ/BDW)

Written by

in

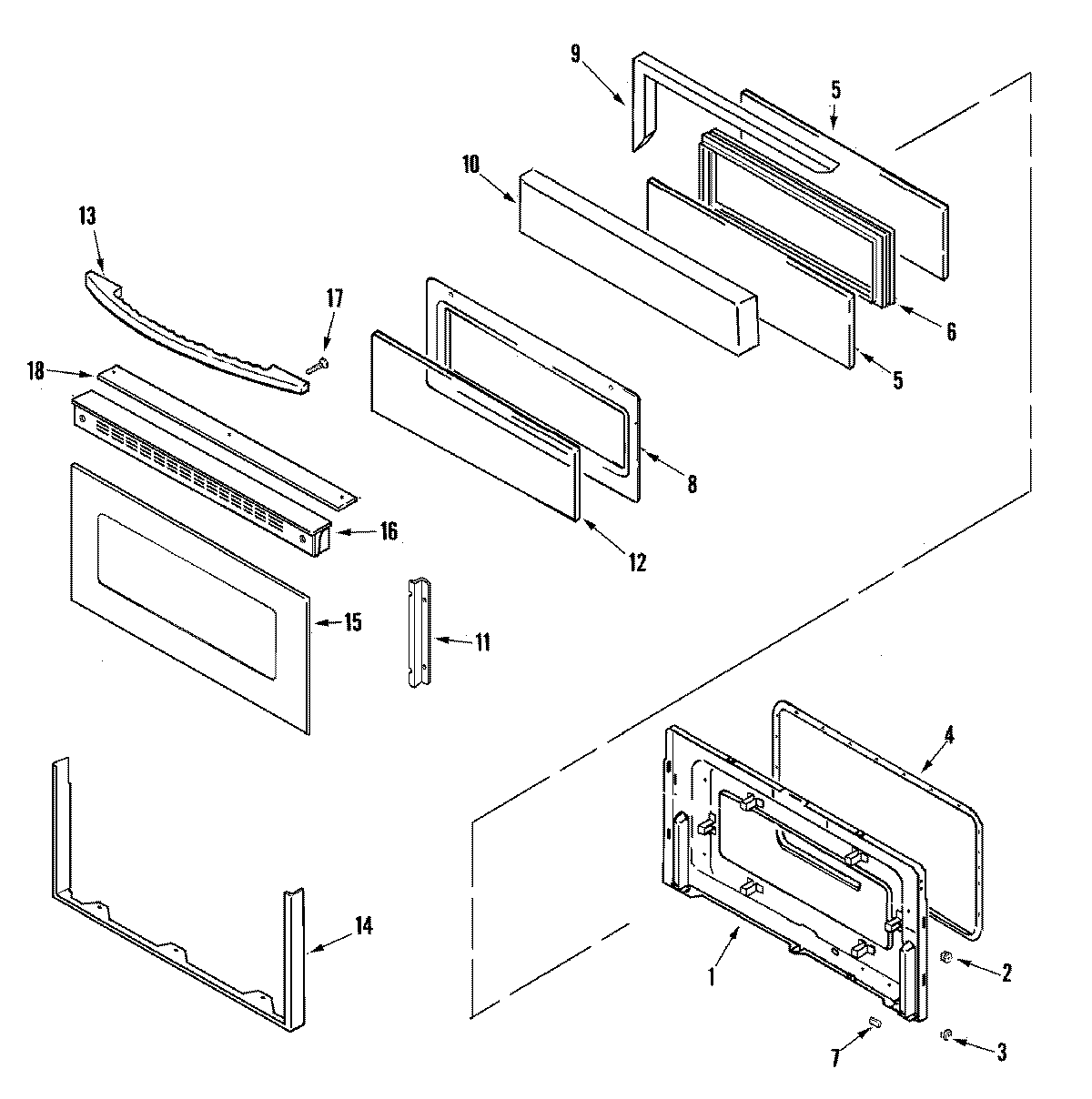

MGR6772BDW 04 – DOOR (UPPER-BDB/BDQ/BDW)

Products

PositionProduct
1MAY 74004564
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4WP7201P091-60 Whirlpool Door Gasket
5MAY 74004566
6MAY 74004567
7WP74005546 Whirlpool RU Spacer
8MAY 74004568
9MAY 74004569
10INSULATION, DOOR (3 X 8.7)
11MAY 74004592
12MAY 74004571
13WP74006381 Whirlpool Door Handle
14MAY 74004573
15MAY 74006631
16MAY 74006633
16WP98008544 Whirlpool Screw Assembly
17WP74006515 Whirlpool Washer Screw
17SCREW
18MAY 7728P094-60
18MAY 74001278
