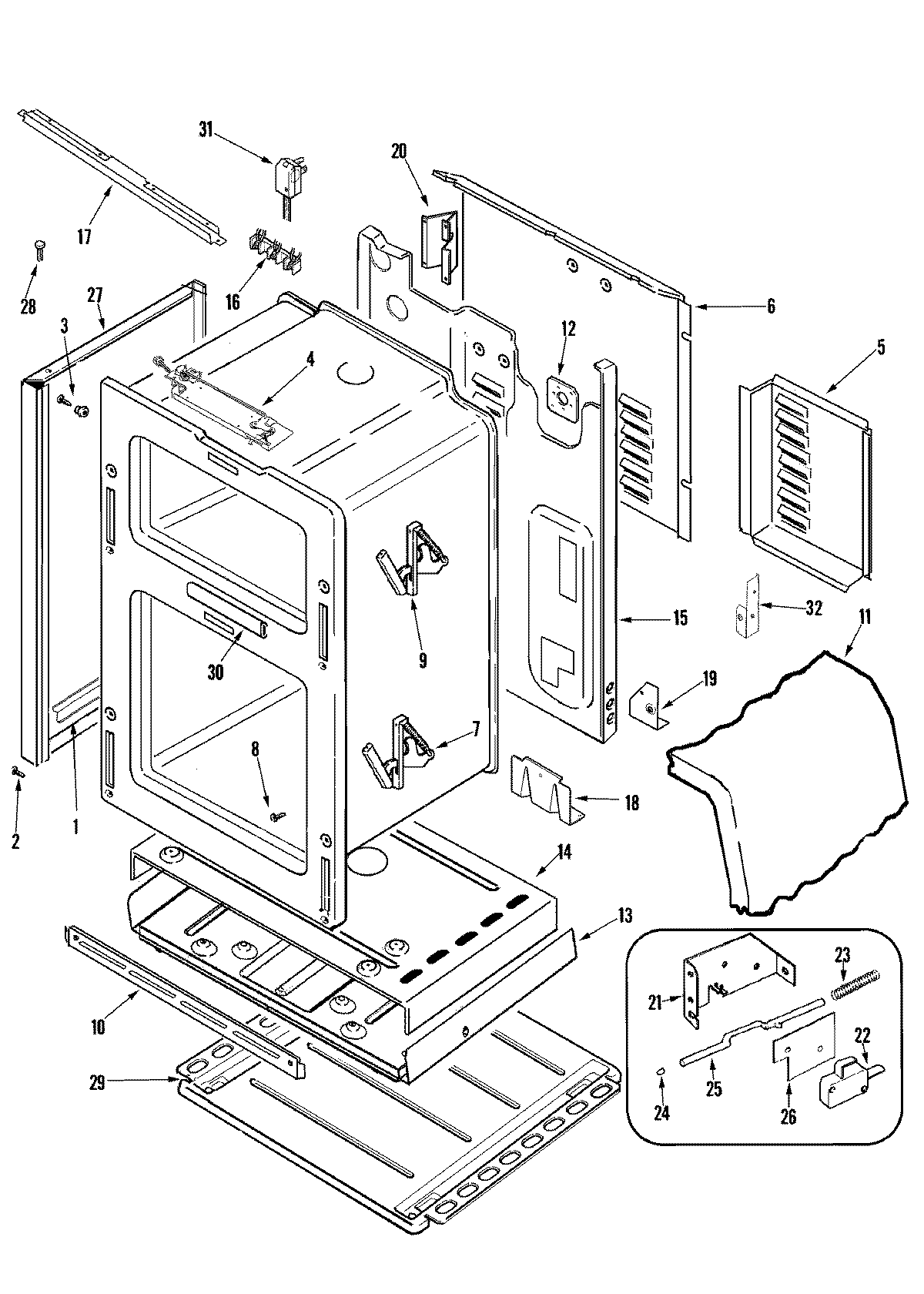

MGR6775ADQ 01 – BODY

MGR6775ADQ 01 – BODY

Written by

in

MGR6775ADQ 01 – BODY

Products

PositionProduct
13823F015-51 Whirlpool Spacer
3MAY 74007476
3MAY 8004P024-60
474003975 Whirlpool Screw P1 (8ABX3/8-BLK)
474007429 Whirlpool Door Latch Assembly Primary Lock
5MAY 74007430
6MAY 74007431
7HINGE-OVEN DOOR
8SCREW (10-24X5/16-NI)
9MAY 74007830
10MAY 74007438
10WP74009541 Whirlpool Screw Assembly
1174007440 Whirlpool Oven Upper Insulation Wrap
11MAY 74010090
11MAY 74010089
1174010091 Whirlpool Lower Back Insulation
12MAY 74007450
13MAY 74007443
14MAY 74007577
15MAY 74010104
16WPW10245259 Whirlpool Terminal Block
17MAY 74003384
18MAY 74005500
19MAY 74007446
19MAY 74007447
203801F691-51 Whirlpool Bracket
21BRACKET, SWITCH ACTUATOR
21WPY706189 Whirlpool Stove Screw
22MAY 7101P330-60
24MAY 74001631
25ROD, DOOR LIGHT SWITCH
26MAY 74001872
27MAY 74004965
27SCREW
28MAY 74001663
29MAY 74009962
30MAY 74007428
31MAY 74007373
32MAY 74007499
32MAY 74007500
