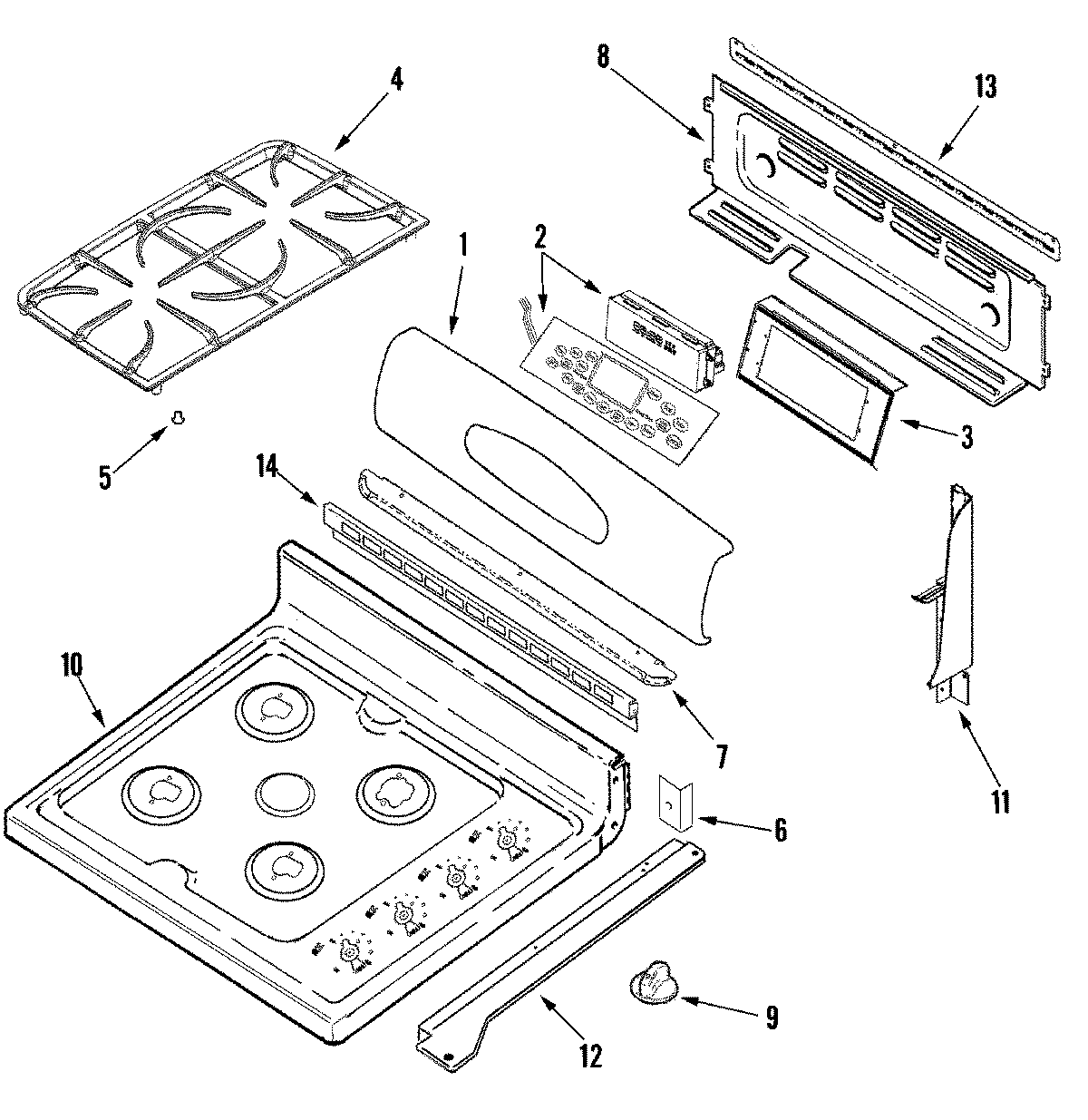

MGR6775ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6775ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6775ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010071
2WPW10166969 Whirlpool Electronic Control Board
2MAY 74010078
2MAY 74010083
3BRACKET, CLOCK
4MAY 74010074
5W10919249 Whirlpool Burner Grate Foot
6MAY 74010106
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7MAY 74007583
7MAY 74010100
8WP400021-1 Whirlpool Screw
8MAY 74010087
9WP74005934 Whirlpool Grommet
9MAY 74010080
10MAY 74010068
11WP74009541 Whirlpool Screw Assembly
11WP74003976 Whirlpool Screw
11MAY 74009671
11MAY 74009668
12MAY 74007366
12MAY 74007369
12MAY 74007367
13MAY 74010084
13SCREW
14MAY 74009796
14MAY 7101P147-60
