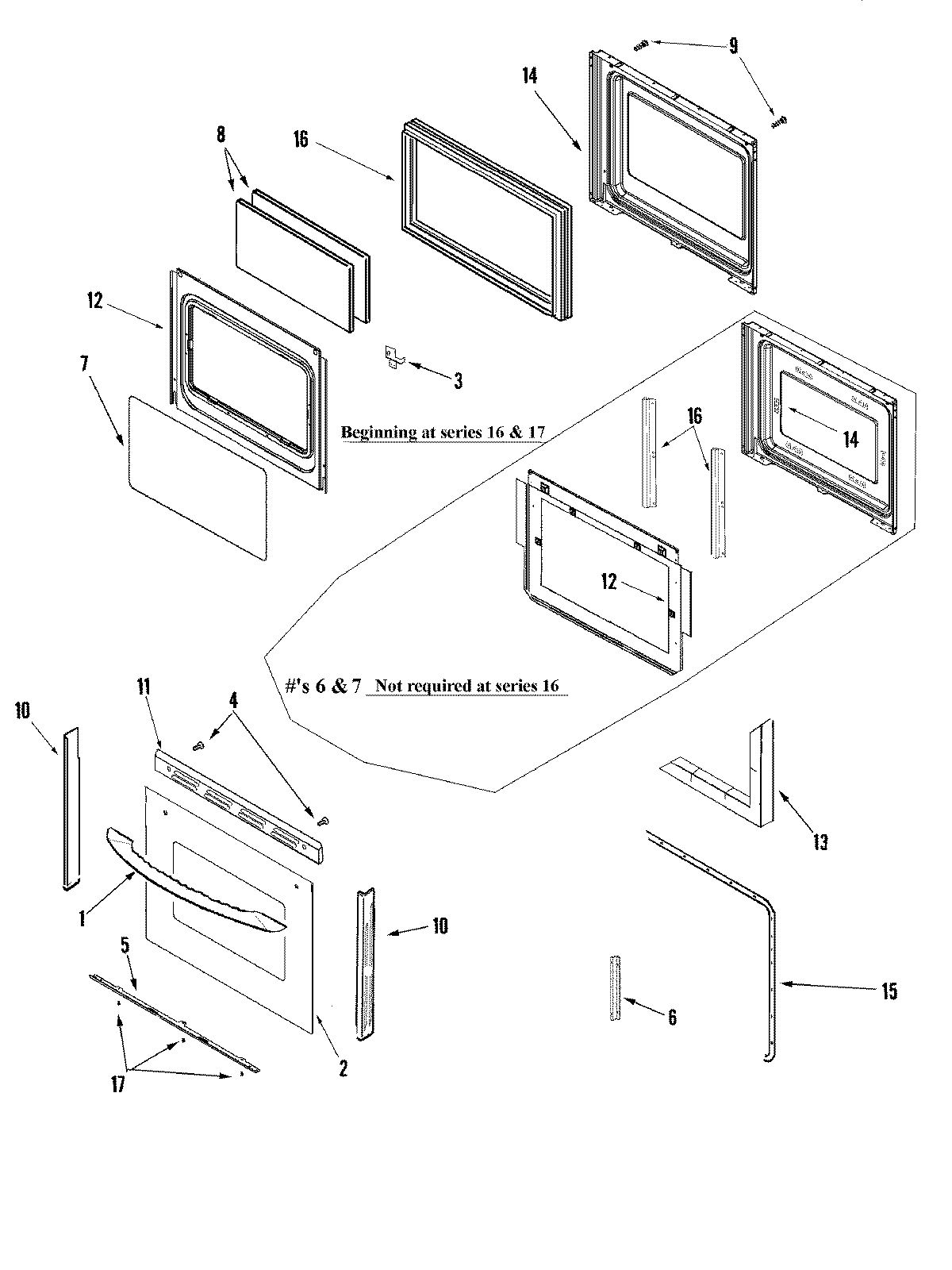

MGR6775ADQ 03 – DOOR (LOWER)

MGR6775ADQ 03 – DOOR (LOWER)

Written by

in

MGR6775ADQ 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011778 Whirlpool Door Handle
212002397 Whirlpool Oven Door Glass Kit (Bisque)
3SCREW (10ABX1/4P TR ZN)
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
3WP74005546 Whirlpool RU Spacer
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7GLASS, DOOR
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
874003645 Whirlpool Range Oven Door Inner Glass
10TRIM, DOOR (BSQ-RT)
10TRIM, DOOR (BSQ-LT)
10WP74009014 Whirlpool Double Tape
11MAY 74009691
11WP74009541 Whirlpool Screw Assembly
12MAY 7101P356-60
123601F373-51 Whirlpool Baffle
12MAY 74009502
13INSULATION, OVEN DOOR
14MAY 74003642
14NUT, SNAP (ROUND-WHT)
14NUT, SNAP (ROUND-BLK)
14LINING, DOOR
15GASKT-DOOR OVEN
163801F886-51 Whirlpool Mounting Bracket
16SCREW, 8 X 1/2
16FRAME, GLASS
16SCREW
