MGR6775ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

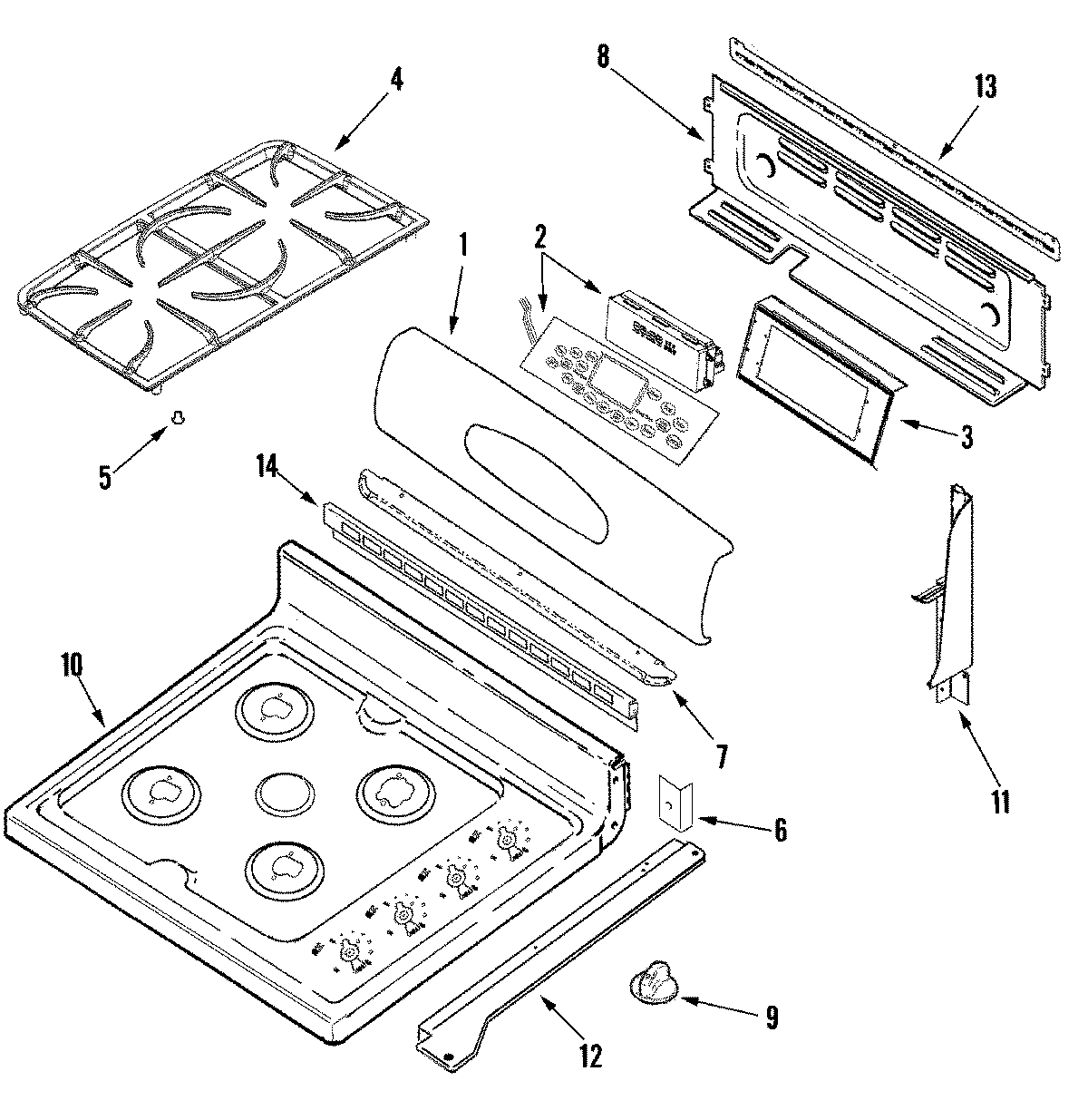

Position	Product
1	MAY 74010072
2	MAY 74010083
2	MAY 74010077
2	WPW10166969 Whirlpool Electronic Control Board
3	BRACKET, CLOCK
4	MAY 74010075
5	W10919249 Whirlpool Burner Grate Foot
6	MAY 74010106
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 74009656
7	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8	WP400021-1 Whirlpool Screw
8	MAY 74010087
9	WPL 74010079
9	WP74005934 Whirlpool Grommet
10	MAY 74010066
11	WP74003976 Whirlpool Screw
11	MAY 74009670
11	WP98008545 Whirlpool Screw
11	MAY 74009673
12	MAY 74007367
12	MAY 74007366
12	MAY 74007369
13	MAY 74010084
13	SCREW
14	MAY 74009797
14	MAY 7101P147-60
