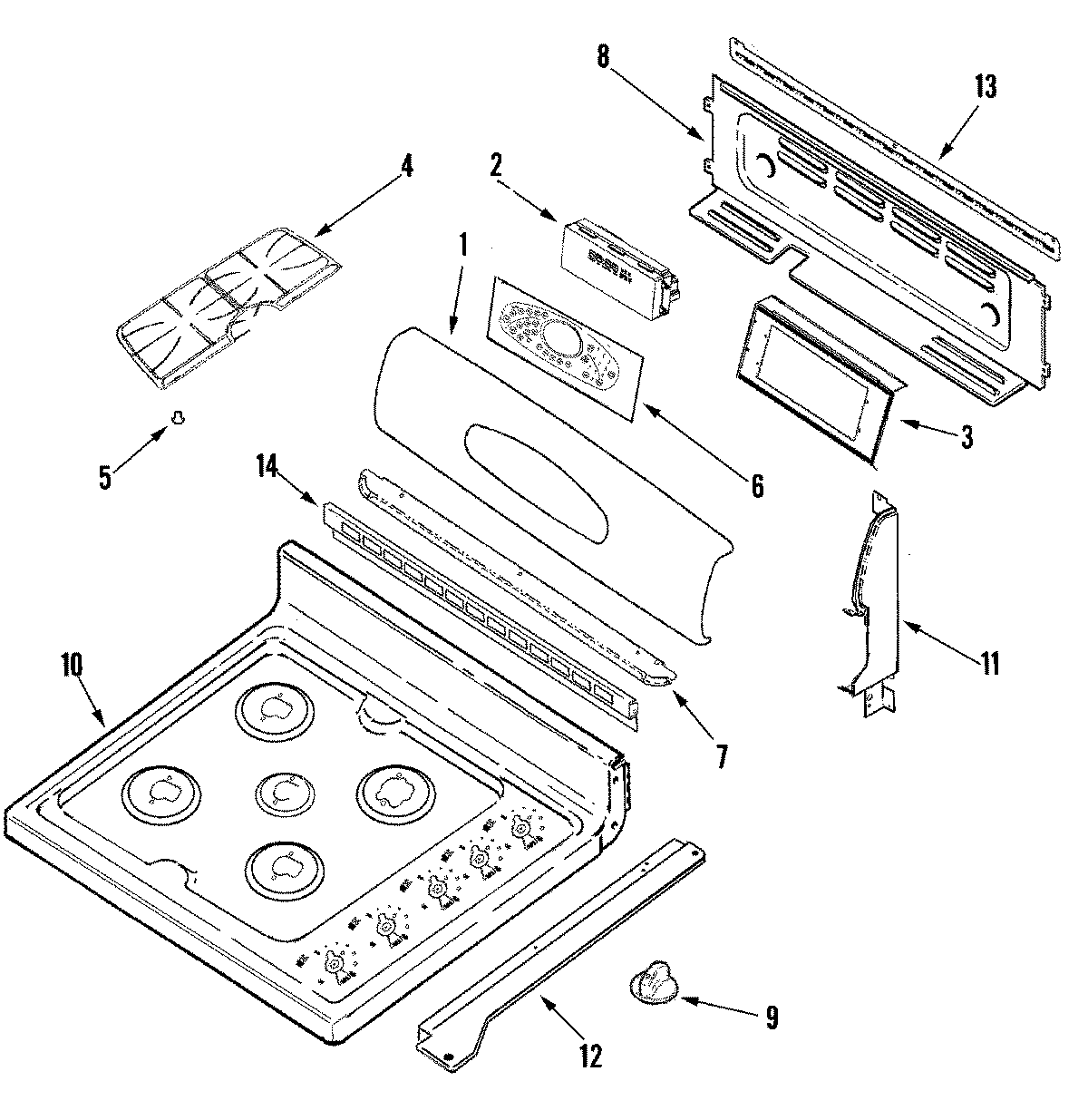

MGR6775BDB 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6775BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6775BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 2602N352-09
2WPW10166969 Whirlpool Electronic Control Board
3BRACKET, CLOCK
4MAY 74010125
5W10919249 Whirlpool Burner Grate Foot
6MAY 7728P497-60
7MAY 74009800
774003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8WP400021-1 Whirlpool Screw
8MAY 71001394
8MAY 74011109
9WP74005934 Whirlpool Grommet
9WPL 74010079
10COOKTOP
11WP98008545 Whirlpool Screw
11MAY 74010202
11WP74003976 Whirlpool Screw
11MAY 74010201
12MAY 74007367
12MAY 74007369
12MAY 74007366
13SCREW
13MAY 74010084
14MAY 7101P147-60
14MAY 74009797
