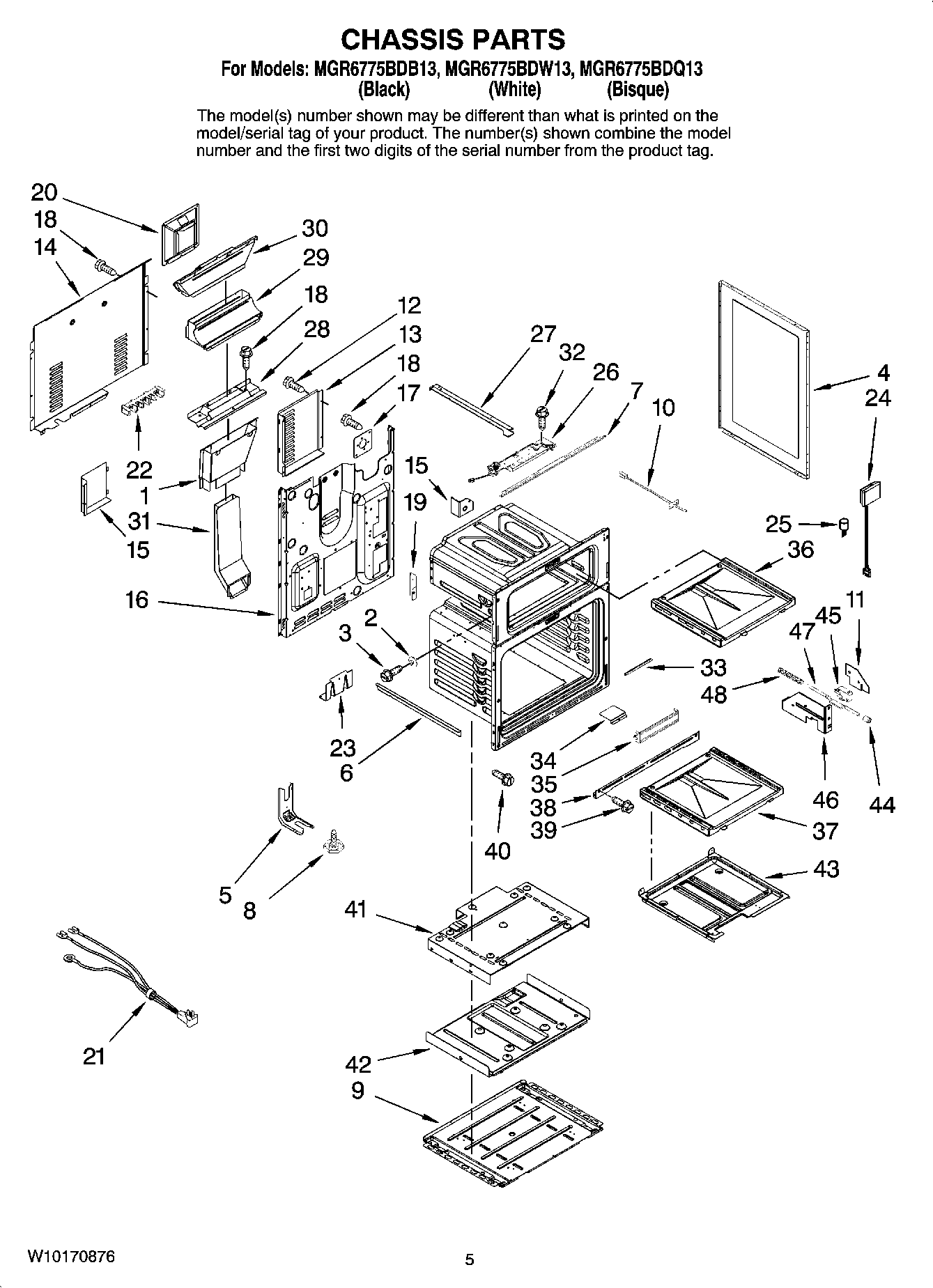

MGR6775BDB13 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 74010089
NI	MAY 74010090
NI	74010091 Whirlpool Lower Back Insulation
NI	74007440 Whirlpool Oven Upper Insulation Wrap
1	MAY 74007374
2	MAY 8004P024-60
3	SCREW W/SHOULDER (No.8)
4	MAY 74003236
4	MAY 74003283
4	MAY 74004965
5	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
6	3823F015-51 Whirlpool Spacer
7	MAY 74003384
8	W11665456 Whirlpool Range Level Foot
9	MAY W10170904
10	WP74011433 Whirlpool Sensor
10	12001655 Whirlpool Oven Sensor
11	MAY 74001872
13	MAY 74010121
14	MAY 74007431
15	MAY 74007446
15	MAY 74007447
16	MAY 74011298
17	MAY 74007450
18	SCREW
19	MAY 74007499
19	MAY 74007500
20	MAY 74011858
21	MAY 74011890
22	WPW10245259 Whirlpool Terminal Block
23	MAY 74005500
24	MAY 74009970
25	WP74009925 Whirlpool Halogen Light Bulb
26	74007429 Whirlpool Door Latch Assembly Primary Lock
27	MAY W10163332
27	MAY W10163331
28	MAY 74007377
29	MAY 74007376
30	MAY 74007955
31	MAY 74007956
32	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
33	MAY 74007428
34	MAY 74010102
35	MAY 74007383
36	MAY 74010085
37	2205F051-19 Whirlpool Oven Bottom
38	Trim, Kickplate (White)
38	MAY 74007438
38	MAY 74007436
39	WP98008545 Whirlpool Screw
41	MAY 74007577
42	MAY 74007443
43	MAY W10170906
43	MAY W10172248
44	MAY 74001631
46	BRACKET, SWITCH ACTUATOR
47	ROD, DOOR LIGHT SWITCH
