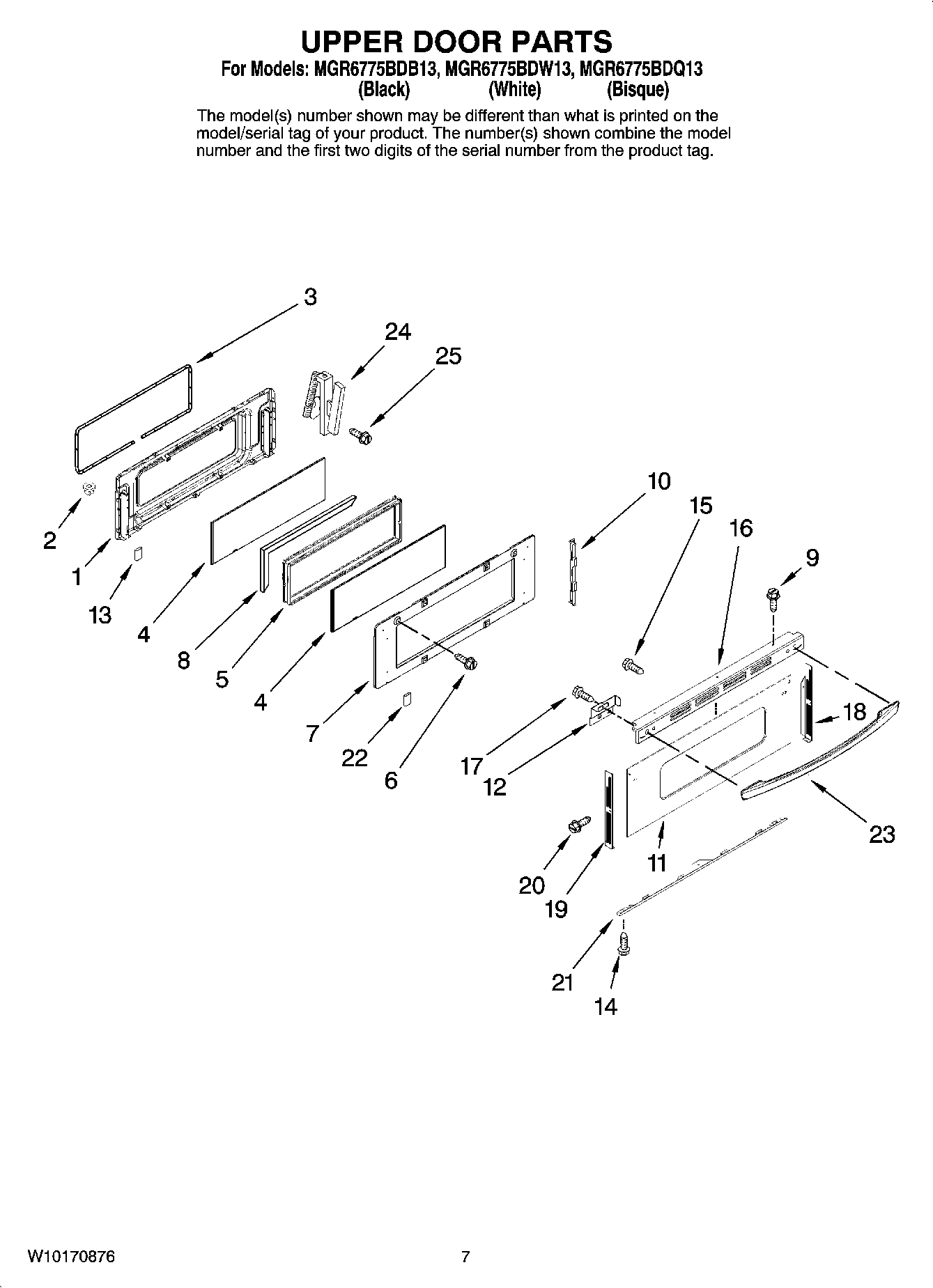

MGR6775BDB13 05 – UPPER DOOR PARTS

Products

Position	Product
1	MAY 74004564
2	NUT, SNAP (ROUND-WHT)
2	NUT, SNAP (ROUND-BLK)
3	WP7201P091-60 Whirlpool Door Gasket
4	MAY 74004566
5	MAY 74004567
6	SCREW
7	MAY 74009976
8	MAY 74004569
9	WP98008544 Whirlpool Screw Assembly
9	WP98008545 Whirlpool Screw
10	MAY 74004592
11	MAY 12002454
11	MAY 12002456
11	MAY 12002455
12	3801F832-45 Whirlpool Bracket
12	3801F831-45 Whirlpool Bracket Assembly
13	WP74005546 Whirlpool RU Spacer
14	WP74006515 Whirlpool Washer Screw
15	SCREW (10ABX1/4P TR ZN)
16	WP3608F141-71 Whirlpool Door Trim
16	MAY 74009691
16	MAY 74009689
18	MAY 74009749
18	MAY 74009745
18	MAY 74009747
19	MAY 74009746
19	MAY 74009748
19	MAY 74009750
20	WP74009541 Whirlpool Screw Assembly
21	SUPPORT, GLASS (BSQ)
21	WP3807F708-71 Whirlpool Support
21	SUPPORT, GLASS (BLK)
22	WP74009014 Whirlpool Double Tape
22	WP74009025 Whirlpool Double Sided Tape
23	WP74011768 Whirlpool Door Handle
23	WP74011778 Whirlpool Door Handle
23	WP74011767 Whirlpool Door Handle
24	MAY 74007830
25	SCREW (10-24X5/16-NI)
