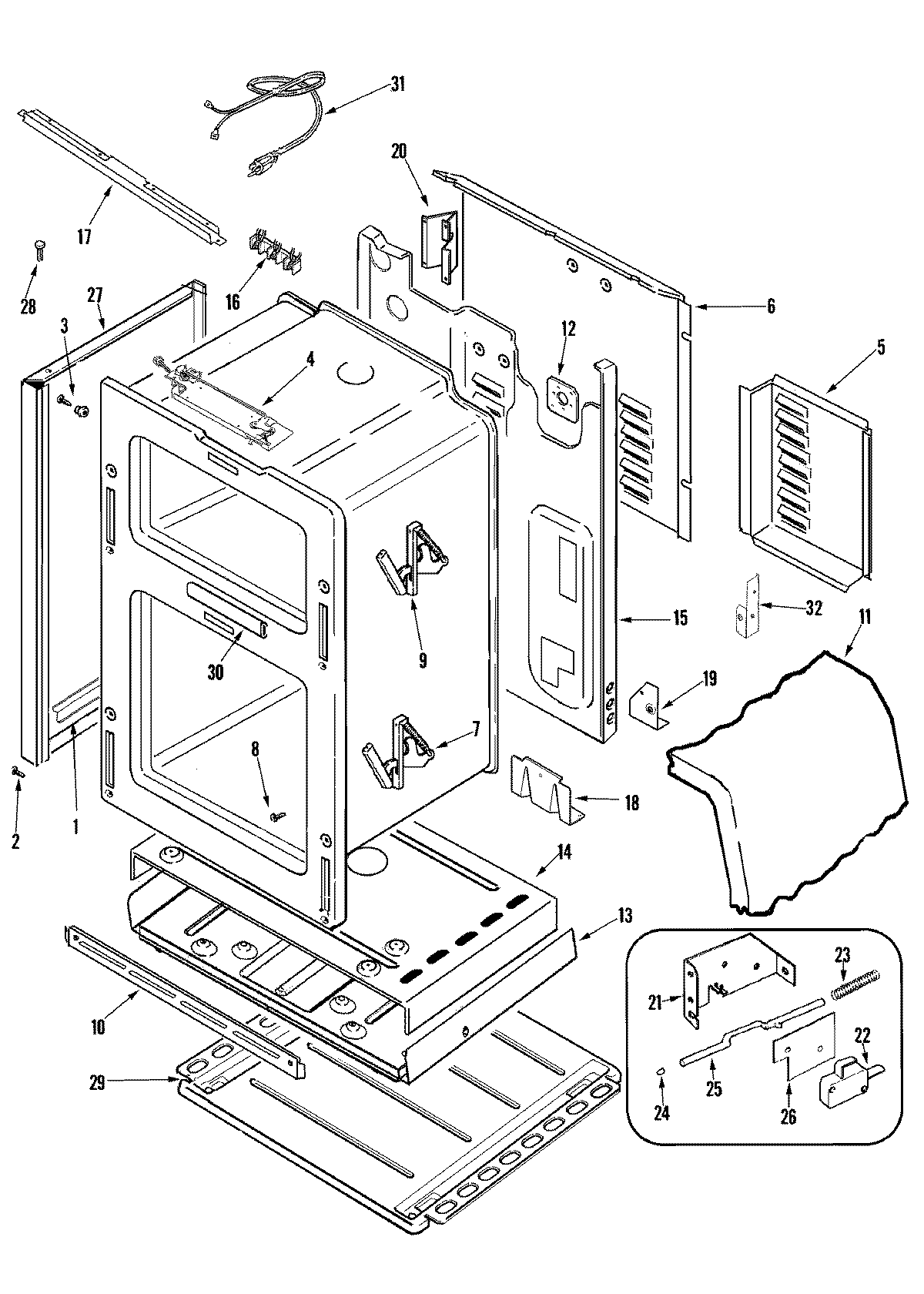

| 1 | 3823F015-51 Whirlpool Spacer |
| 3 | MAY 8004P024-60 |
| 3 | MAY 74007476 |
| 4 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 4 | 74007429 Whirlpool Door Latch Assembly Primary Lock |
| 5 | MAY 74010121 |
| 6 | MAY 74007431 |
| 7 | 74011475 Whirlpool Range Oven Door Hinge Assembly |
| 8 | SCREW (10-24X5/16-NI) |
| 9 | MAY 74007830 |
| 10 | MAY 74007436 |
| 10 | WP98008545 Whirlpool Screw |
| 11 | MAY 74010090 |
| 11 | MAY 74010089 |
| 11 | 74007440 Whirlpool Oven Upper Insulation Wrap |
| 11 | 74010091 Whirlpool Lower Back Insulation |
| 12 | MAY 74007450 |
| 13 | MAY 74007443 |
| 14 | MAY 74007577 |
| 15 | MAY 74011298 |
| 16 | WPW10245259 Whirlpool Terminal Block |
| 17 | MAY 74003384 |
| 18 | MAY 74005500 |
| 19 | MAY 74007446 |
| 19 | MAY 74007447 |
| 20 | 3801F691-51 Whirlpool Bracket |
| 21 | BRACKET, SWITCH ACTUATOR |
| 21 | WPY706189 Whirlpool Stove Screw |
| 22 | MAY 7101P330-60 |
| 24 | MAY 74001631 |
| 25 | ROD, DOOR LIGHT SWITCH |
| 26 | MAY 74001872 |
| 27 | MAY 74004965 |
| 27 | SCREW |
| 28 | MAY 74001663 |
| 29 | MAY 74009962 |
| 30 | MAY 74007428 |
| 31 | MAY 74011890 |
| 32 | MAY 74007499 |
| 32 | MAY 74007500 |
