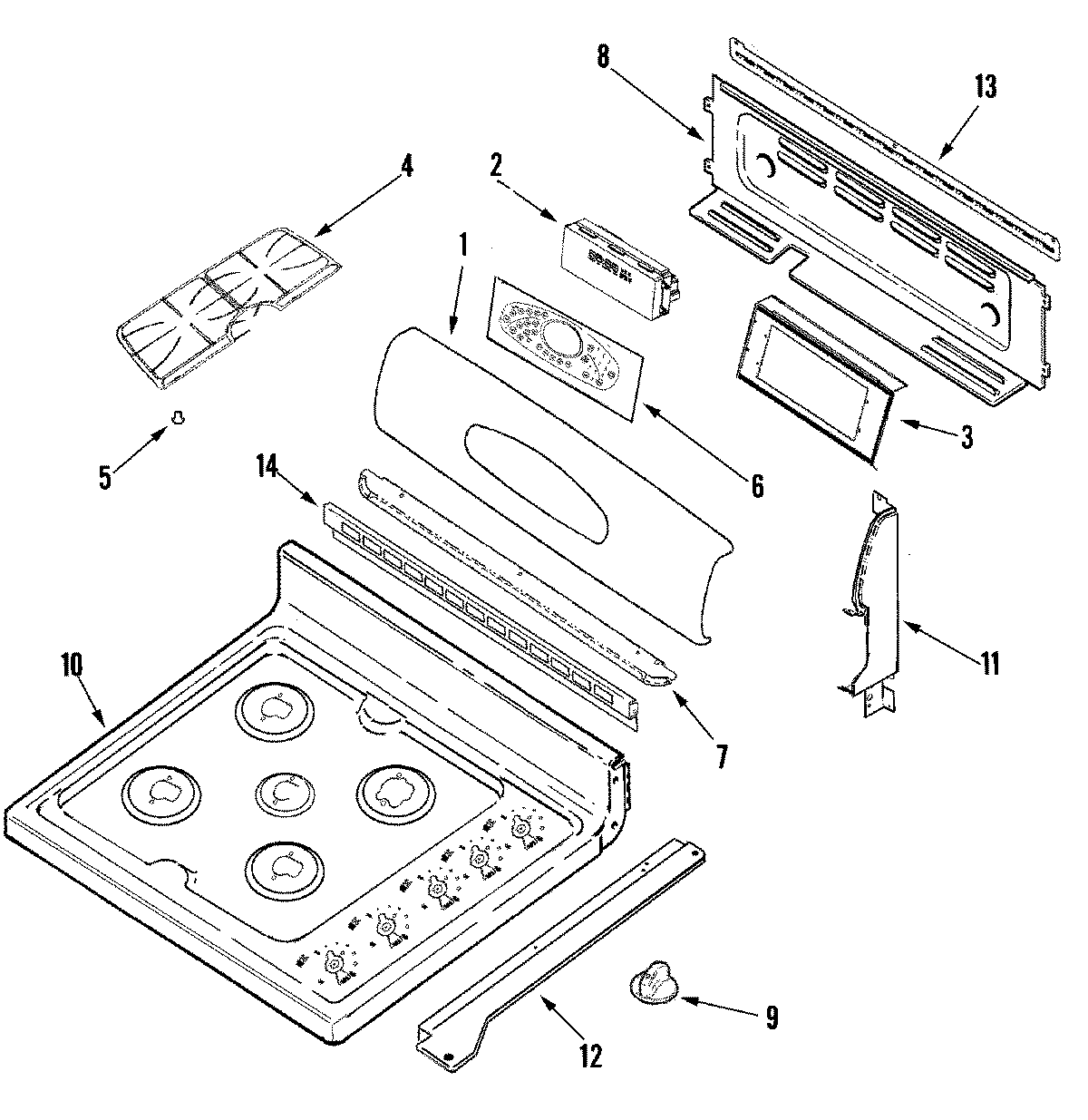

MGR6775BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6775BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6775BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 2602N352-88
2WPW10166969 Whirlpool Electronic Control Board
3BRACKET, CLOCK
4MAY 74010127
5W10919249 Whirlpool Burner Grate Foot
6MAY 7728P498-60
7MAY 74007583
7MAY 74009798
8MAY 71001394
8WP400021-1 Whirlpool Screw
8MAY 74011109
9MAY 74010080
9WP74005934 Whirlpool Grommet
10MAY 2001N219-88
11WP74009541 Whirlpool Screw Assembly
11WP74003976 Whirlpool Screw
11MAY 74010712
11MAY 74010714
12MAY 74007369
12MAY 74007366
12MAY 74007367
13MAY 74010084
13SCREW
14MAY 7101P147-60
14MAY 74009796
