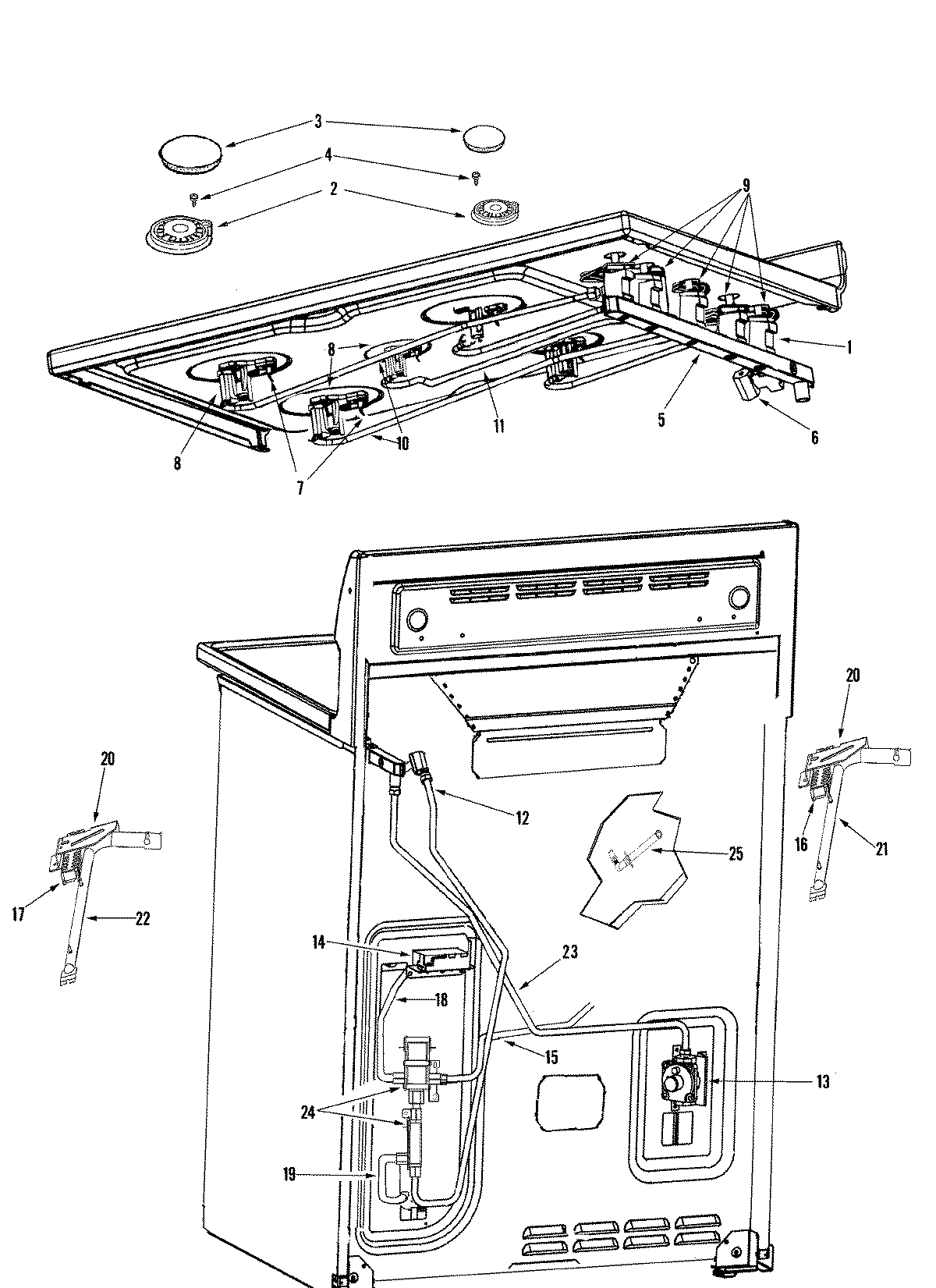

MGR6775BDQ 05 – GAS CONTROLS

MGR6775BDQ 05 – GAS CONTROLS

Written by

in

MGR6775BDQ 05 – GAS CONTROLS

Products

PositionProduct
1MAY 12002269
1MAY 12002268
1MAY 74009416
2WPW10406878 Whirlpool Burner Base (16K)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3WP74007751 Whirlpool Burner Cap
3WP74007418 Whirlpool Burner Cap
3WP74007417 Whirlpool Burner Cap
3WP74007419 Whirlpool Burner Cap
4WP400021-1 Whirlpool Screw
5MAY 7513D535-60
5MAY 74009904
6MAY 12002271
7WP8523793 Whirlpool Oven Surface Igniter
8WP7527P021-60 Whirlpool Orifice Holder
8WP7527P023-60 Whirlpool Orifice Holder
8WP7527P028-60 Whirlpool Dishwasher Orifice Holder
8WP74007961 Whirlpool Holder
9MAY W10136715
912002791 Whirlpool Igniter Switch Set
9WP74008212 Whirlpool Seal Switch
11MAY 74009240
12MAY 74011291
13MAY 74007387
1474009098 Whirlpool Spark Module
15MAY 74011292
16WP74007966 Whirlpool Broil Igniter
17SCREW (10-24X5/16-NI)
17IGNTR-OVEN
18MAY 74011293
19MAY 74011296
19MAY 74007451
20MAY 74007426
21MAY 74010093
22NUT, WING
22MAY 74010094
23MAY 74010098
24WP74011290 Whirlpool Bake Valve
24MAY 74011297
25MAY 74010612
25WP3387230 Whirlpool Screw
