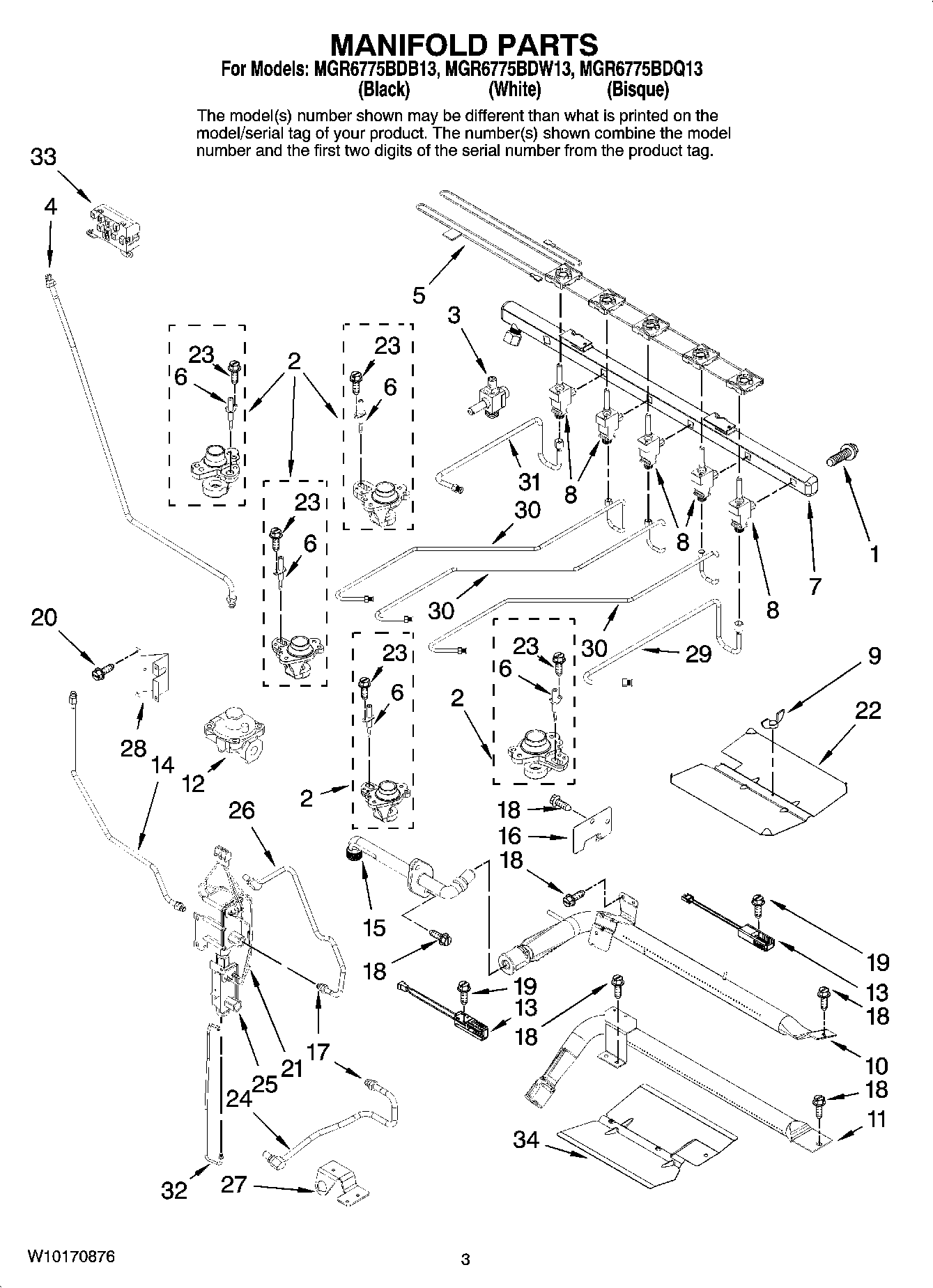

MGR6775BDQ13 03 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP
1	MAY 74009416
2	WP7527P021-60 Whirlpool Orifice Holder
2	WP74007961 Whirlpool Holder
2	WP7527P028-60 Whirlpool Dishwasher Orifice Holder
2	WP7527P023-60 Whirlpool Orifice Holder
3	MAY W10171166
4	MAY 74010098
5	12002791 Whirlpool Igniter Switch Set
6	WP8523793 Whirlpool Oven Surface Igniter
7	MAY 74009904
8	MAY W10171161
8	MAY W10171164
8	MAY W10171165
9	Nut
10	MAY 74010093
11	MAY 74010094
12	MAY 74007387
13	WP74007966 Whirlpool Broil Igniter
13	Igniter (Bake)
14	MAY 74011292
15	MAY 74010612
16	MAY 4005F421-45
17	MAY 74007451
19	SCREW (10-24X5/16-NI)
20	SCREW
21	MAY 74011297
22	MAY 74010086
23	MAY 8273062
24	MAY 74011296
25	WP74011290 Whirlpool Bake Valve
26	MAY 74011293
27	MAY 74007426
28	3801F691-51 Whirlpool Bracket
29	MAY 74009240
31	Tubing, (Center)
32	MAY 74011291
33	74009098 Whirlpool Spark Module
34	MAY 74007406
