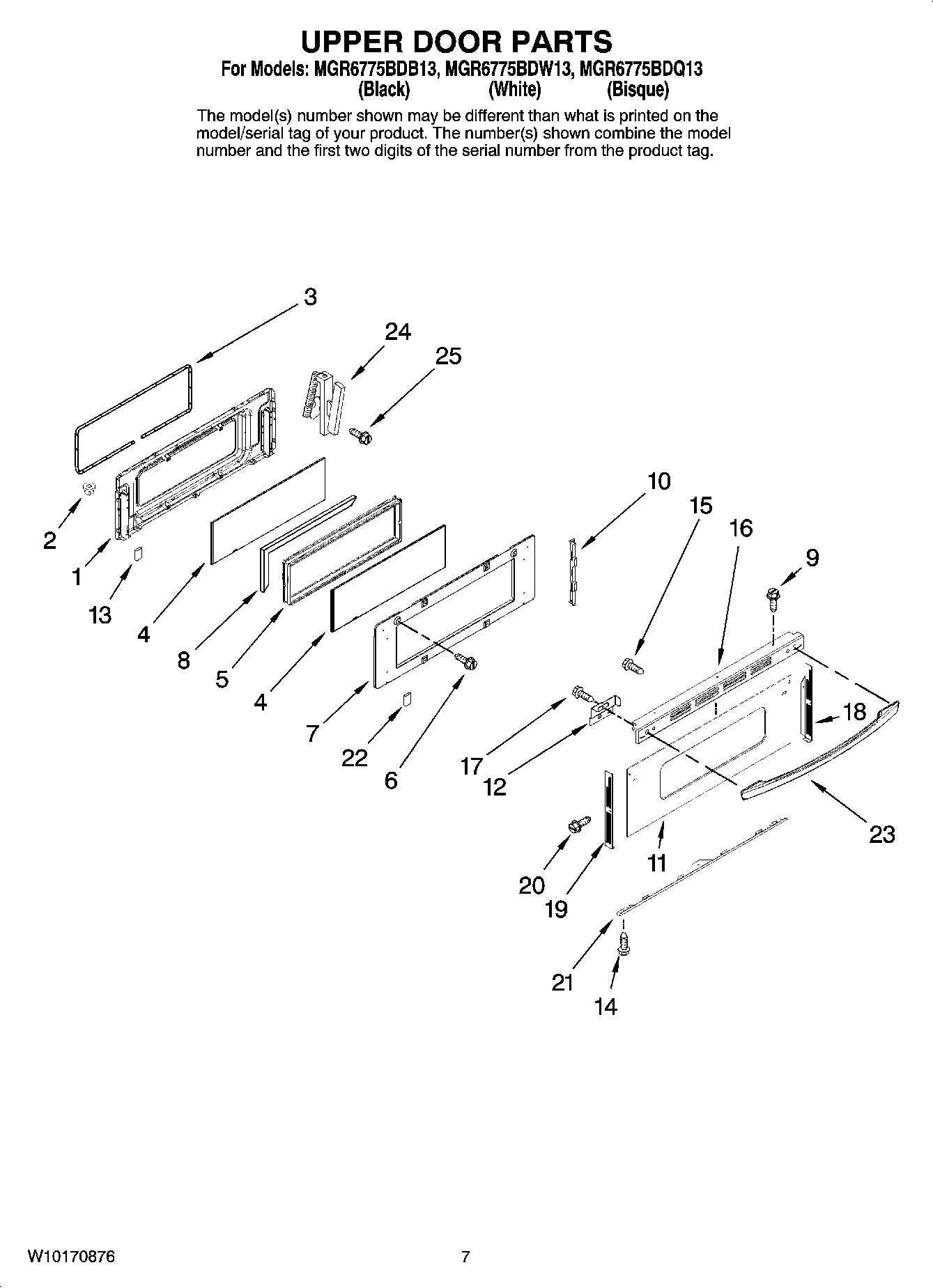

MGR6775BDQ13 05 – UPPER DOOR PARTS

MGR6775BDQ13 05 – UPPER DOOR PARTS

Written by

in

MGR6775BDQ13 05 – UPPER DOOR PARTS

Products

PositionProduct
1MAY 74004564
2NUT, SNAP (ROUND-WHT)
2NUT, SNAP (ROUND-BLK)
3WP7201P091-60 Whirlpool Door Gasket
4MAY 74004566
5MAY 74004567
6SCREW
7MAY 74009976
8MAY 74004569
9WP98008544 Whirlpool Screw Assembly
9WP98008545 Whirlpool Screw
10MAY 74004592
11MAY 12002454
11MAY 12002456
11MAY 12002455
123801F832-45 Whirlpool Bracket
123801F831-45 Whirlpool Bracket Assembly
13WP74005546 Whirlpool RU Spacer
14WP74006515 Whirlpool Washer Screw
15SCREW (10ABX1/4P TR ZN)
16WP3608F141-71 Whirlpool Door Trim
16MAY 74009691
16MAY 74009689
18MAY 74009749
18MAY 74009745
18MAY 74009747
19MAY 74009746
19MAY 74009748
19MAY 74009750
20WP74009541 Whirlpool Screw Assembly
21SUPPORT, GLASS (BSQ)
21WP3807F708-71 Whirlpool Support
21SUPPORT, GLASS (BLK)
22WP74009014 Whirlpool Double Tape
22WP74009025 Whirlpool Double Sided Tape
23WP74011768 Whirlpool Door Handle
23WP74011778 Whirlpool Door Handle
23WP74011767 Whirlpool Door Handle
24MAY 74007830
25SCREW (10-24X5/16-NI)
