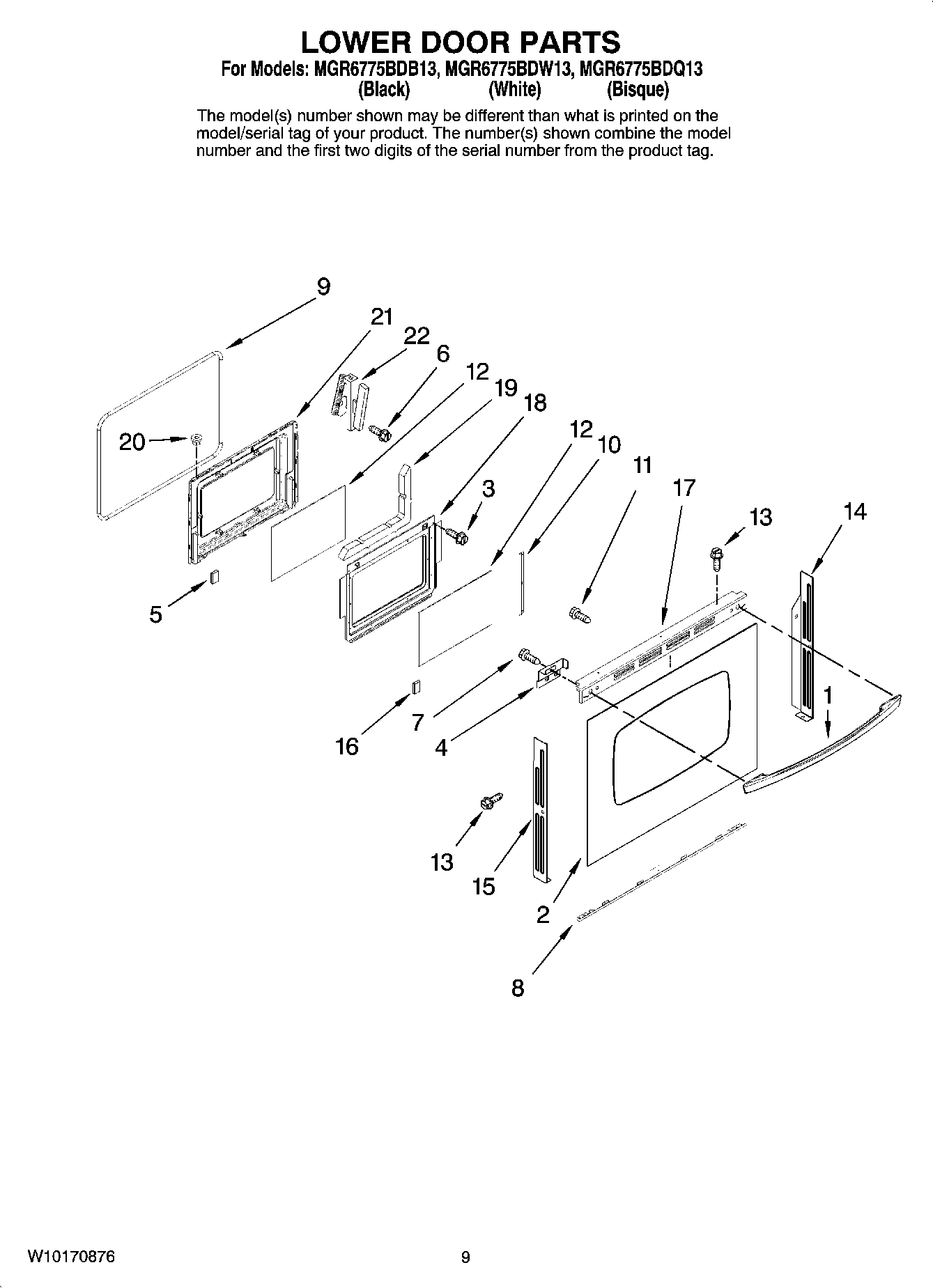

MGR6775BDQ13 06 – LOWER DOOR PARTS

Products

Position	Product
1	WP74011768 Whirlpool Door Handle
1	WP74011778 Whirlpool Door Handle
1	WP74011767 Whirlpool Door Handle
2	12002397 Whirlpool Oven Door Glass Kit (Bisque)
2	MAY 12002396
2	MAY 12002395
3	SCREW
4	3801F832-45 Whirlpool Bracket
4	3801F831-45 Whirlpool Bracket Assembly
5	WP74005546 Whirlpool RU Spacer
6	SCREW (10ABX1/4P TR ZN)
7	WP74006515 Whirlpool Washer Screw
8	WP3807F708-71 Whirlpool Support
8	SUPPORT, GLASS (BSQ)
8	SUPPORT, GLASS (BLK)
9	GASKT-DOOR OVEN
10	3801F886-51 Whirlpool Mounting Bracket
11	SCREW, 8 X 1/2
12	74003645 Whirlpool Range Oven Door Inner Glass
13	WP98008545 Whirlpool Screw
14	WP3608F116-70 Whirlpool Door Trim
14	WP3608F116-71 Whirlpool Door Trim
14	TRIM, DOOR (BSQ-RT)
15	TRIM, DOOR (BSQ-LT)
15	WP3608F117-71 Whirlpool Door Trim
15	WP3608F117-70 Whirlpool Door Trim
16	WP74009025 Whirlpool Double Sided Tape
16	WP74009014 Whirlpool Double Tape
17	MAY 74009689
17	WP3608F141-71 Whirlpool Door Trim
17	MAY 74009691
18	3601F373-51 Whirlpool Baffle
19	INSULATION, OVEN DOOR
20	NUT, SNAP (ROUND-WHT)
20	NUT, SNAP (ROUND-BLK)
21	LINING, DOOR
22	74011475 Whirlpool Range Oven Door Hinge Assembly
