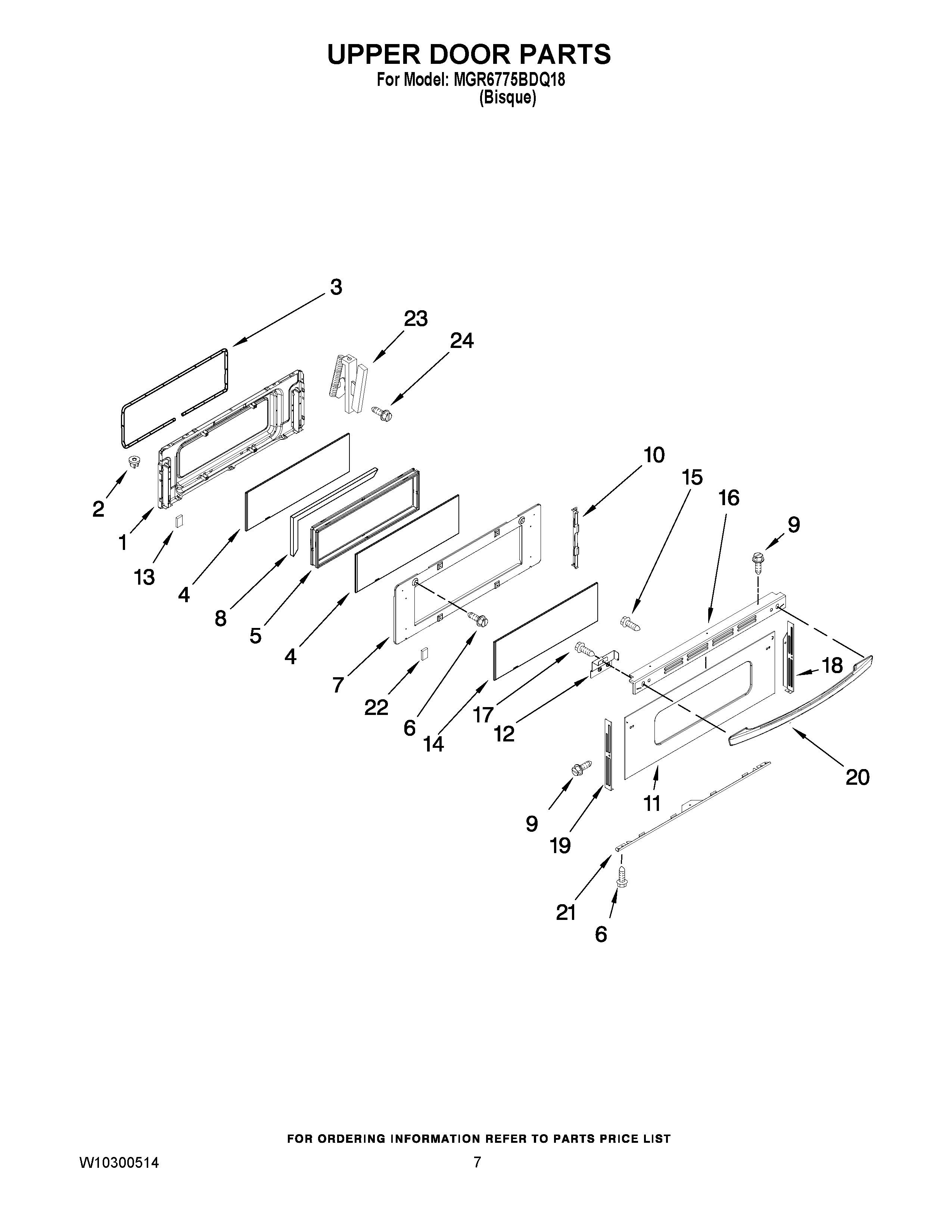

MGR6775BDQ18 05 – UPPER DOOR PARTS

Products

Position	Product
1	MAY 2402W248-19
2	NUT, SNAP (ROUND-WHT)
2	MAY 7103P141-60
3	MAY 7201P091-60
4	MAY 7902P521-60
5	MAY 7907P034-60
6	MAY 7101P376-60
7	Baffle, Door
8	MAY 7002P488-60
9	SCREW, HANDLE (BISQUE)
10	MAY 3804F179-45
11	GLASS, DOOR (INCL. FOIL TAPE) (BISQUE)
12	MAY 3801F831-45
12	MAY 3801F832-45
13	MAY 8010P130-60
14	MAY 7902P520-60
15	SCREW (10ABX1/4P TR ZN)
16	Trim, Door Top (Bisque)
17	MAY 7101P681-60
18	MAY 3608F118-78
19	MAY 3608F119-78
20	MAY 7701P518-60
21	Support, Glass (Bisque)
22	SPACER, RUBBER
23	MAY 7106P148-60
24	SCREW (10-24X5/16-NI)
