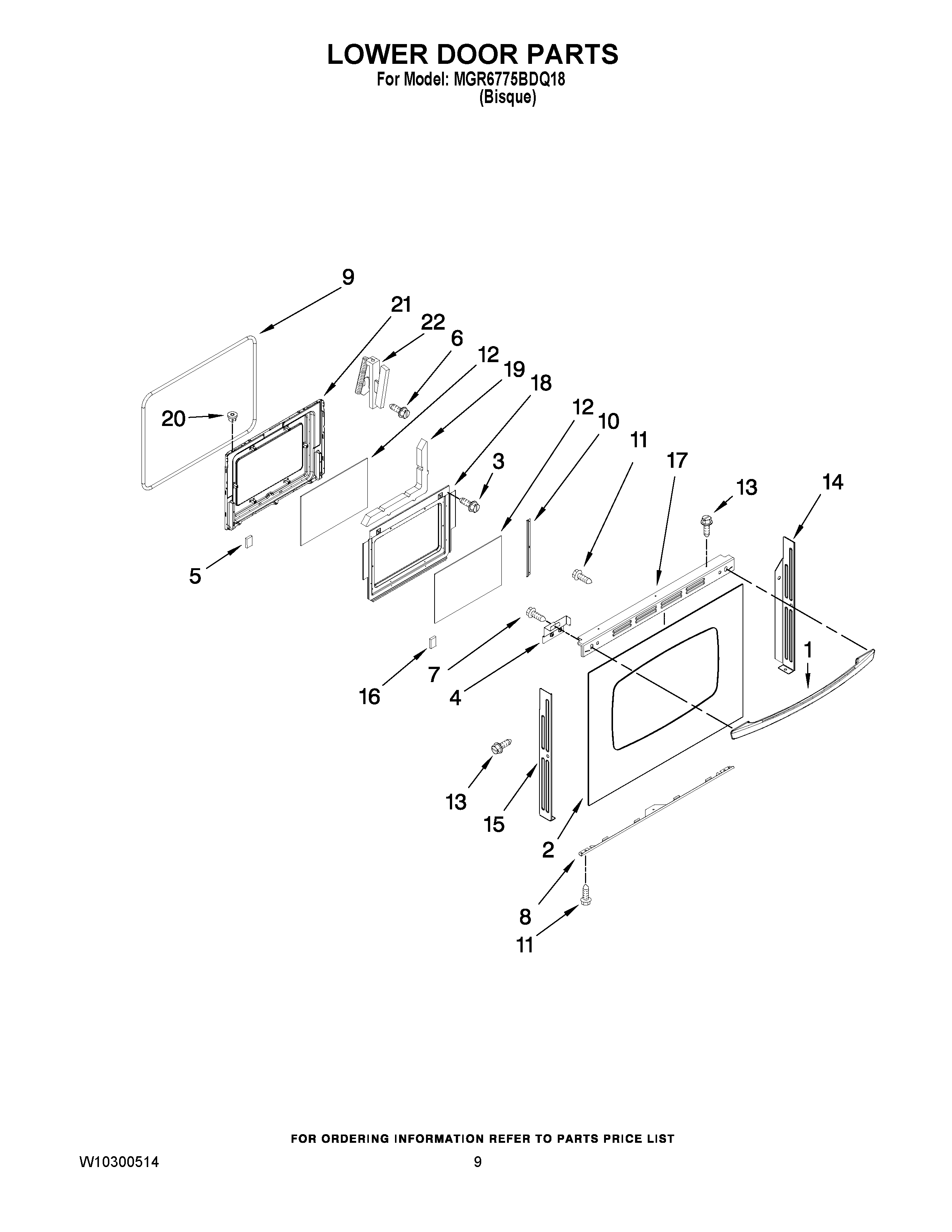

MGR6775BDQ18 06 – LOWER DOOR PARTS

Products

Position	Product
1	MAY 7701P518-60
2	GLASS, DOOR (INCL. FOIL TAPE) (BISQUE)
3	MAY 7101P426- 60
4	MAY 3801F832-45
4	MAY 3801F831-45
5	MAY 8010P130-60
6	SCREW (10ABX1/4P TR ZN)
7	MAY 7101P681-60
8	Support, Glass (Bisque)
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	SCREW, HANDLE (BISQUE)
14	Trim, Door (Rt) (Bisque)
15	Trim, Door (Lt) (Bisque)
16	SPACER, RUBBER
17	Trim, Door Top (Bisque)
18	MAY 3601F373-51
19	MAY 7002P246-60
20	MAY 7103P141-60
20	NUT, SNAP (ROUND-WHT)
21	MAY 2402W312-19
22	MAY 7106P141-60
