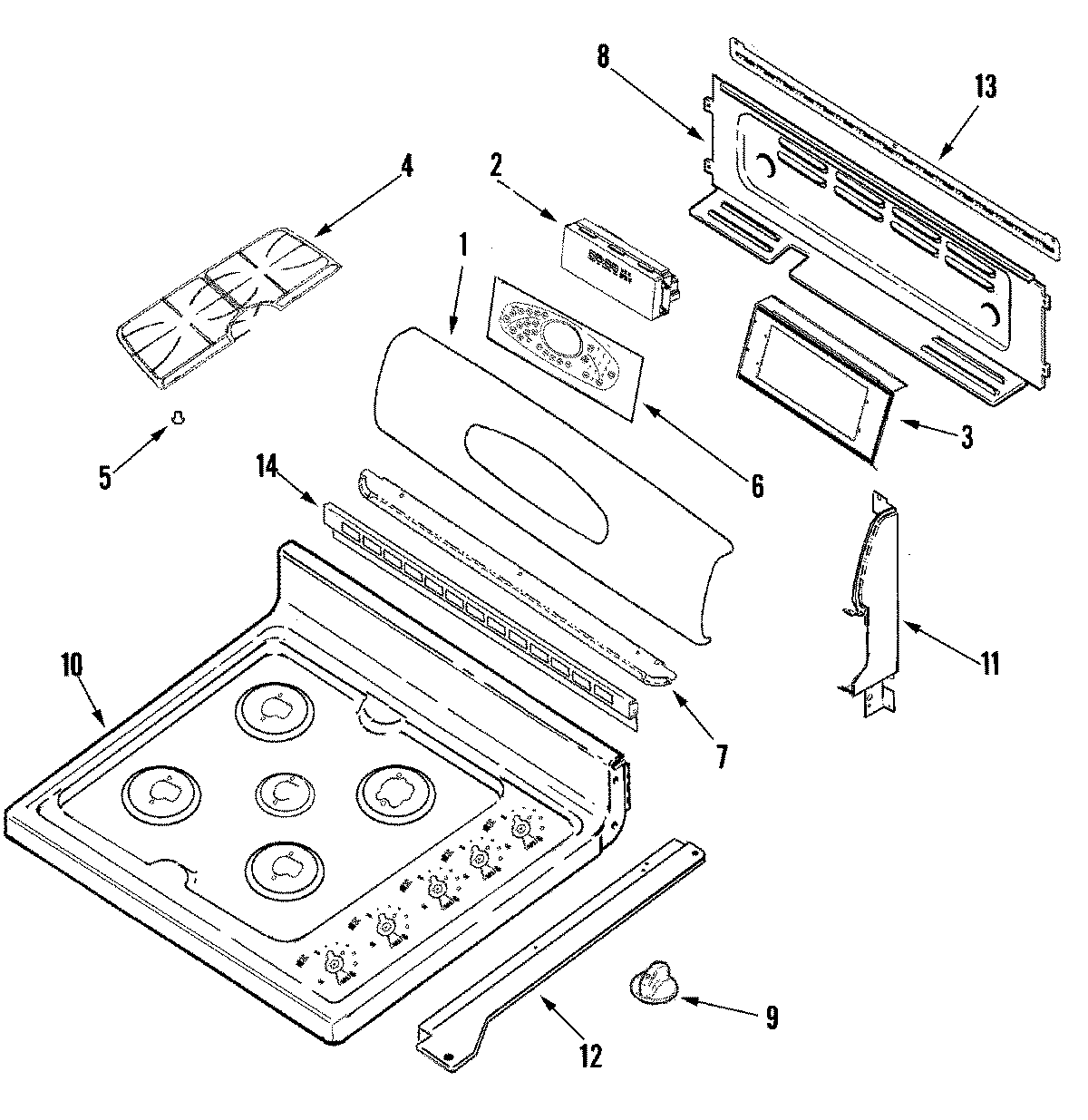

MGR6775BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010072
2WPW10166969 Whirlpool Electronic Control Board
3BRACKET, CLOCK
4MAY 74010125
5W10919249 Whirlpool Burner Grate Foot
6MAY 7728P497-60
7MAY 74009800
774003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8WP400021-1 Whirlpool Screw
8MAY 71001394
8MAY 74011109
9WP74005934 Whirlpool Grommet
9WPL 74010079
10COOKTOP
11WP98008545 Whirlpool Screw
11MAY 74010201
11WP74003976 Whirlpool Screw
11MAY 74010202
12MAY 74007367
12MAY 74007369
12MAY 74007366
13MAY 74010084
13SCREW
14MAY 7101P147-60
14MAY 74009797
