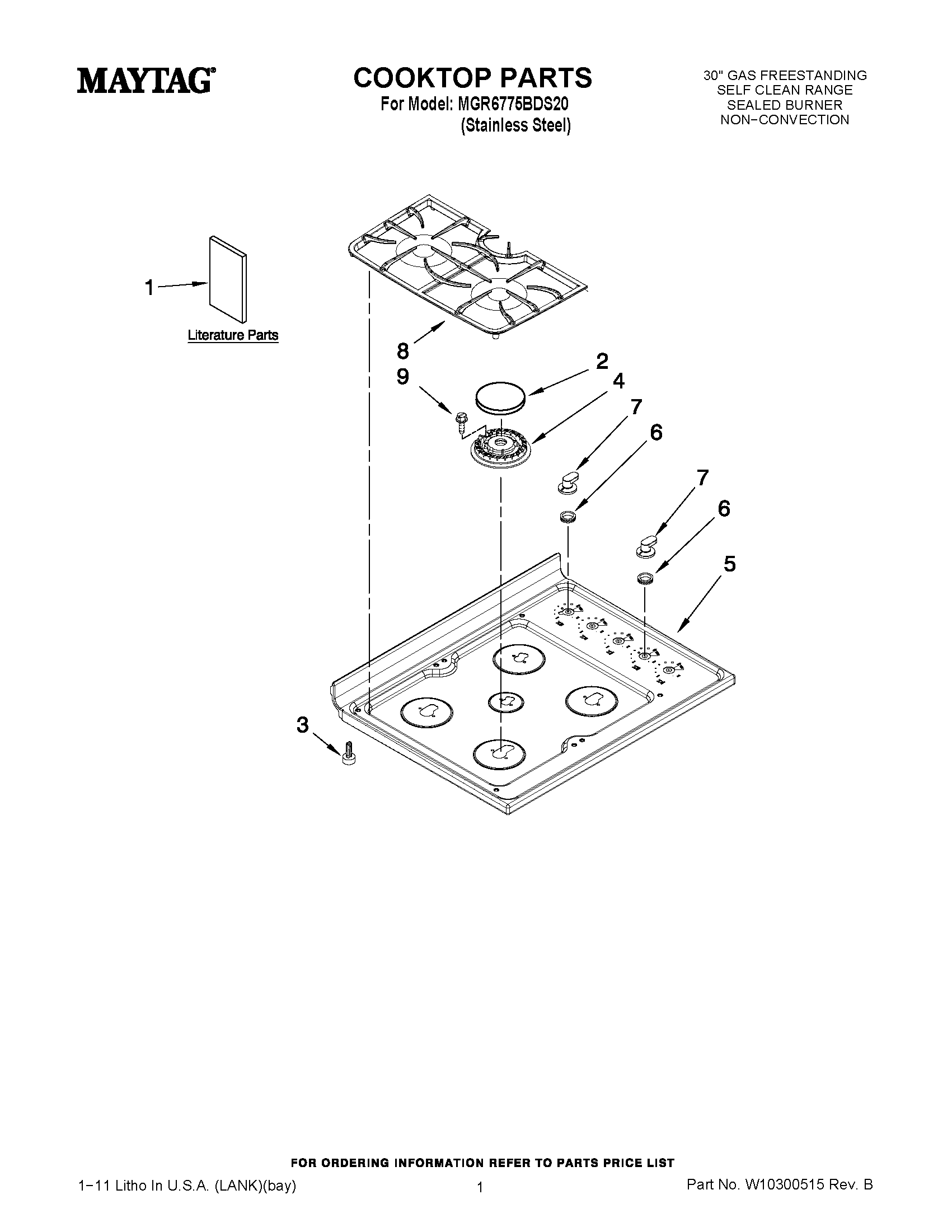

MGR6775BDS20 01 – COOKTOP PARTS

MGR6775BDS20 01 – COOKTOP PARTS

Written by

in

MGR6775BDS20 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8113P707-60
1MAY 8101P623-60
1DIAGRAM, WIRING
1TIPS, SAFE COOKING (FRENCH)
2CAP, BURNER (BLACK (LR/RR/RF))
2CAP, BURNER (BLACK (LF))
2CAP, BURNER (BLACK (3))
2CAP, BURNER (BLACK (1))
3GLIDE, MAIN TOP
4HEAD, BURNER (LR/RR/LF)
4HEAD, BURNER CTR.
4BURNER (LR/RR/RF)
4HEAD, BURNER (RF)
5COOKTOP (BLK)
6GROMMET, KNOB (4)
7MAY 7733P423-60
8GRATE, BURNER (2) (INCL. BUMPERS)
9SCREW
