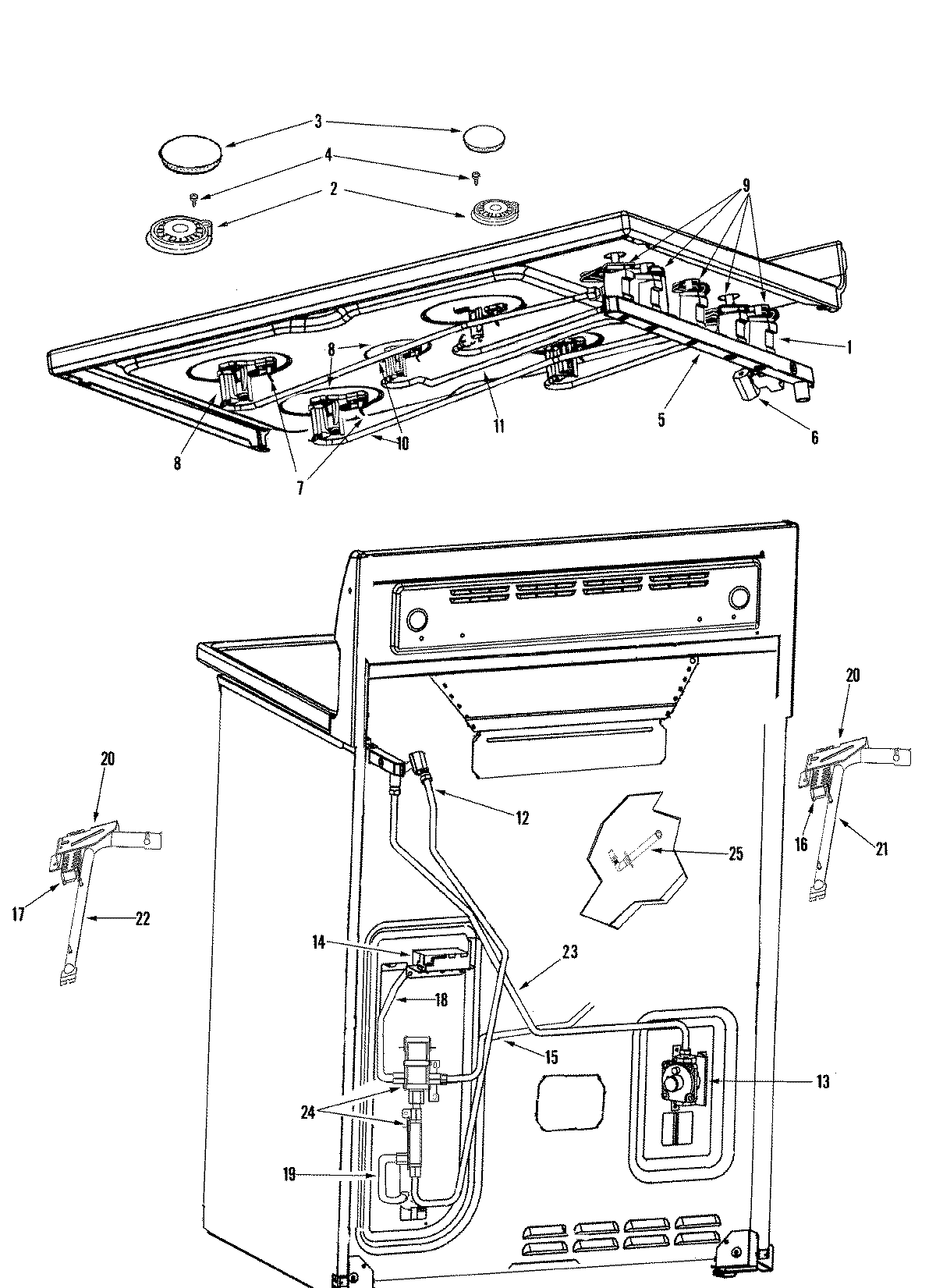

MGR6775BDW 05 – GAS CONTROLS

Products

Position	Product
1	MAY 12002269
1	MAY 12002268
1	MAY 74009416
2	WPW10406878 Whirlpool Burner Base (16K)
2	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
2	WPW10406243 Whirlpool Burner Head Auxiliary 6K
3	WP74007421 Whirlpool Burner Cap
3	WP74007752 Whirlpool Burner Cap (Medium Gray)
3	CAP, BURNER (SMR-GRY)
3	WP74007420 Whirlpool Large Gray Burner Cap
4	WP400021-1 Whirlpool Screw
5	MAY 7513D535-60
5	MAY 74009904
6	MAY 12002271
7	WP8523793 Whirlpool Oven Surface Igniter
8	WP7527P021-60 Whirlpool Orifice Holder
8	WP74007961 Whirlpool Holder
8	WP7527P023-60 Whirlpool Orifice Holder
8	WP7527P028-60 Whirlpool Dishwasher Orifice Holder
9	MAY W10136715
9	12002791 Whirlpool Igniter Switch Set
9	WP74008212 Whirlpool Seal Switch
11	MAY 74009240
12	MAY 74011291
13	MAY 74007387
14	74009098 Whirlpool Spark Module
15	MAY 74011292
16	WP74007966 Whirlpool Broil Igniter
17	SCREW (10-24X5/16-NI)
17	IGNTR-OVEN
18	MAY 74011293
19	MAY 74011296
19	MAY 74007451
20	MAY 74007426
21	MAY 74010093
22	NUT, WING
22	MAY 74010094
23	MAY 74010098
24	WP74011290 Whirlpool Bake Valve
24	MAY 74011297
25	WP3387230 Whirlpool Screw
25	MAY 74010612
