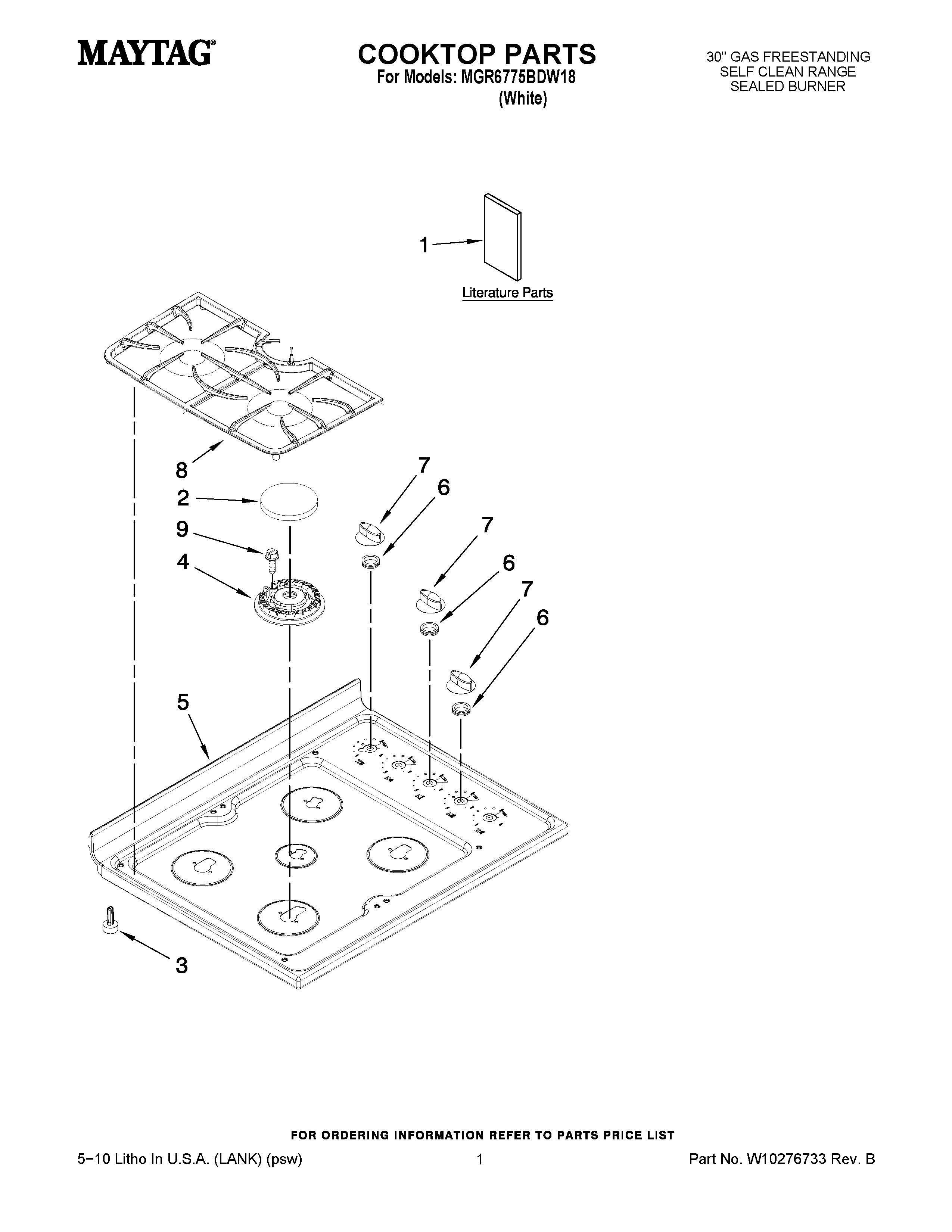

MGR6775BDW18 01 – COOKTOP PARTS

MGR6775BDW18 01 – COOKTOP PARTS

Written by

in

MGR6775BDW18 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1DIAGRAM, WIRING
1MAY 8113P707-60
1MAY 8101P623-60
2MAY W10237747
2MAY W10237743
2MAY W10237742
2MAY W10237745
3GLIDE, MAIN TOP
4HEAD, BURNER (RF)
4HEAD, BURNER (LR/RR/LF)
4HEAD, BURNER CTR.
4BURNER (LR/RR/RF)
5COOKTOP
6GROMMET, KNOB (4)
7MAY 7733P425-60
8MAY 7518P288-60
9WP3368921 Whirlpool Screw
