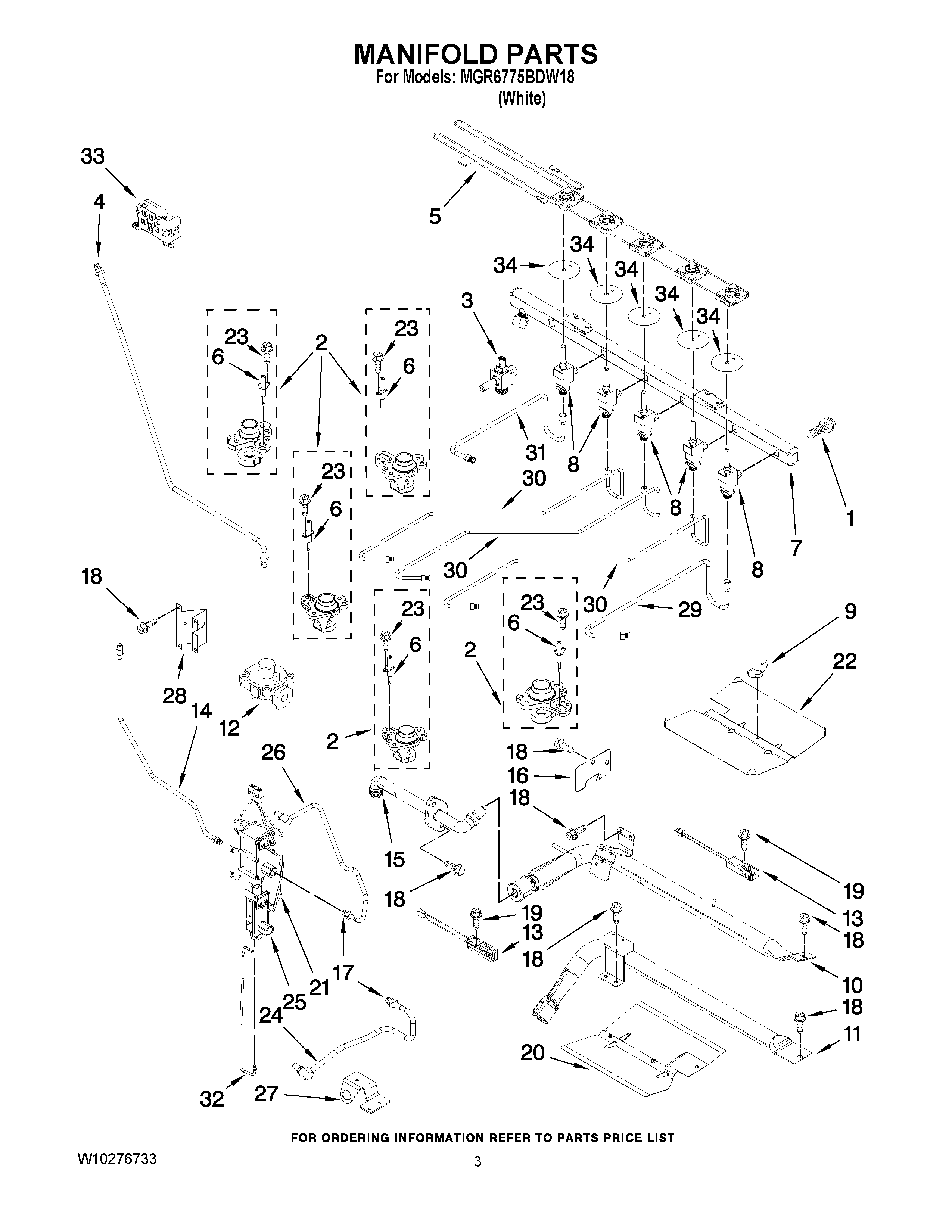

MGR6775BDW18 03 – MANIFOLD PARTS

Products

Position	Product
NI	INSULATOR, ORIFICE IGNITOR
NI	KIT, LP
1	SCREW
2	HOLDER, ORIFICE (LR/RR/RF)
2	HOLDER, ORIFICE ((LF))
2	HOLDER, ORIFICE ((RR))
2	ORIFICE HOLDER (12K) (LEFT FRONT)
3	MAY 7502P565-60
4	MAY 7506P422-60
5	HARNESS, IGNITER (WITH SWITCHES)
6	Ignitor, Top Burner (4)
7	MAY 7513P529-60
8	VALVE ((LF))
8	VALVE (LR/RR/RF)
8	VALVE (CENTER 5K (1))
9	NUT, WING
10	MAY 7505P323-60
11	MAY 7505P324-60
12	MAY 7510P089-60
13	Igniter (Bake)
13	MAY 7432P130-60
14	MAY 7506P429-60
15	MAY 7507P400-60
16	MAY 4005F421-45
17	MAY 7103P195-60
18	MAY 7101P388-60
19	SCREW (10-24X5/16-NI)
20	MAY 3601F339-45
21	MAY 5171P603-60
22	MAY 3601F358-45
23	MAY 8273062
24	MAY 7507P395-60
25	MAY 7501P221-60
26	MAY 7507P396-60
27	MAY 3801F681-45
28	MAY 3801F691-51
29	Tubing (RF)
30	Tubing (LR & LF)
31	TUBING (CENTER)
32	MAY 7506P428-60
33	MAY 7431P053-60
34	COVER, VALVE SW
