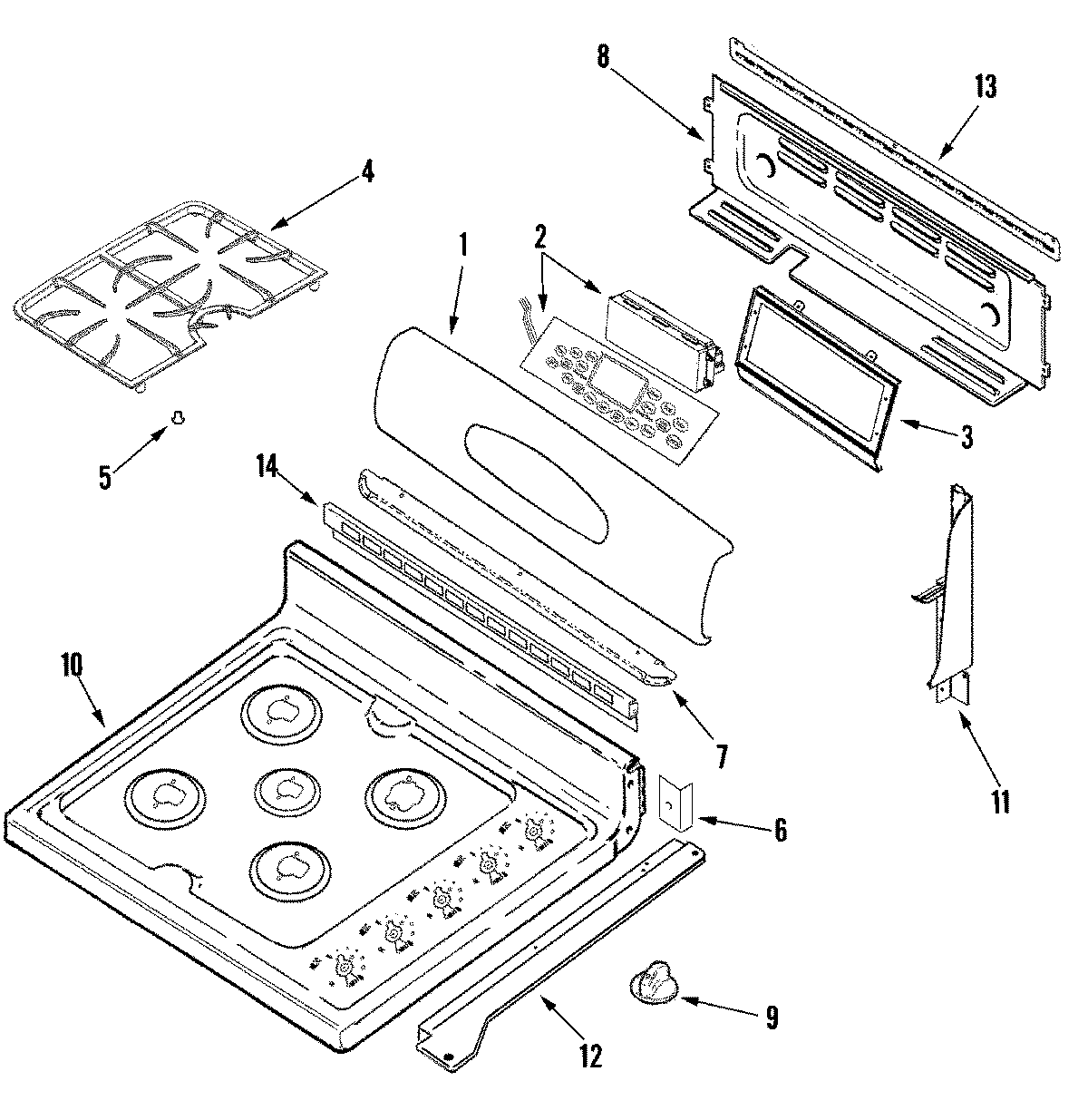

MGR6875ADB 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6875ADB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6875ADB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010113
2WP5701M802-60 Whirlpool Control Panel
3MAY 74010058
4MAY 74010125
5W10919249 Whirlpool Burner Grate Foot
6MAY 74010106
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7MAY 74009656
774003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8MAY 74010087
8WP400021-1 Whirlpool Screw
9WP74005934 Whirlpool Grommet
9WPL 74010079
10MAY 74010116
11WP74003976 Whirlpool Screw
11WP74009541 Whirlpool Screw Assembly
11MAY 74009670
11MAY 74009673
12MAY 74007367
12MAY 74007366
12MAY 74007369
13MAY 74010084
13SCREW
14MAY 7101P147-60
14MAY 74009797
