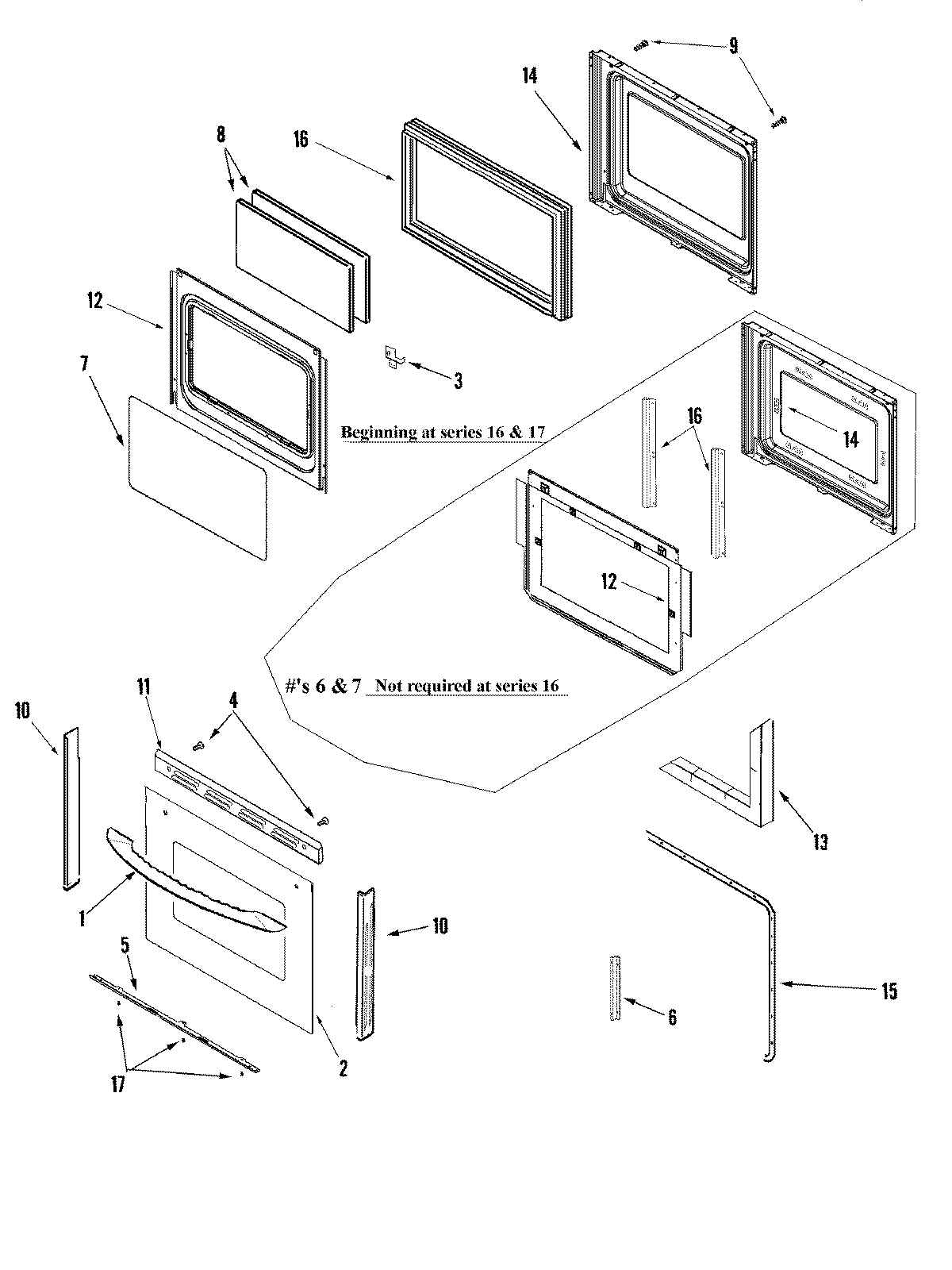

MGR6875ADB 03 – DOOR (LOWER)

MGR6875ADB 03 – DOOR (LOWER)

Written by

in

MGR6875ADB 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011767 Whirlpool Door Handle
2MAY 12002395
3SCREW (10ABX1/4P TR ZN)
3WP74005546 Whirlpool RU Spacer
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74003650
7GLASS, DOOR
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F116-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
10WP3608F117-70 Whirlpool Door Trim
11MAY 74009689
11WP98008545 Whirlpool Screw
12MAY 74009502
12MAY 7101P356-60
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14LINING, DOOR
14NUT, SNAP (ROUND-WHT)
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
163801F886-51 Whirlpool Mounting Bracket
16SCREW
16SCREW, 8 X 1/2
16FRAME, GLASS
