MGR6875ADB 05 – GAS CONTROLS

MGR6875ADB 05 – GAS CONTROLS

Written by

in

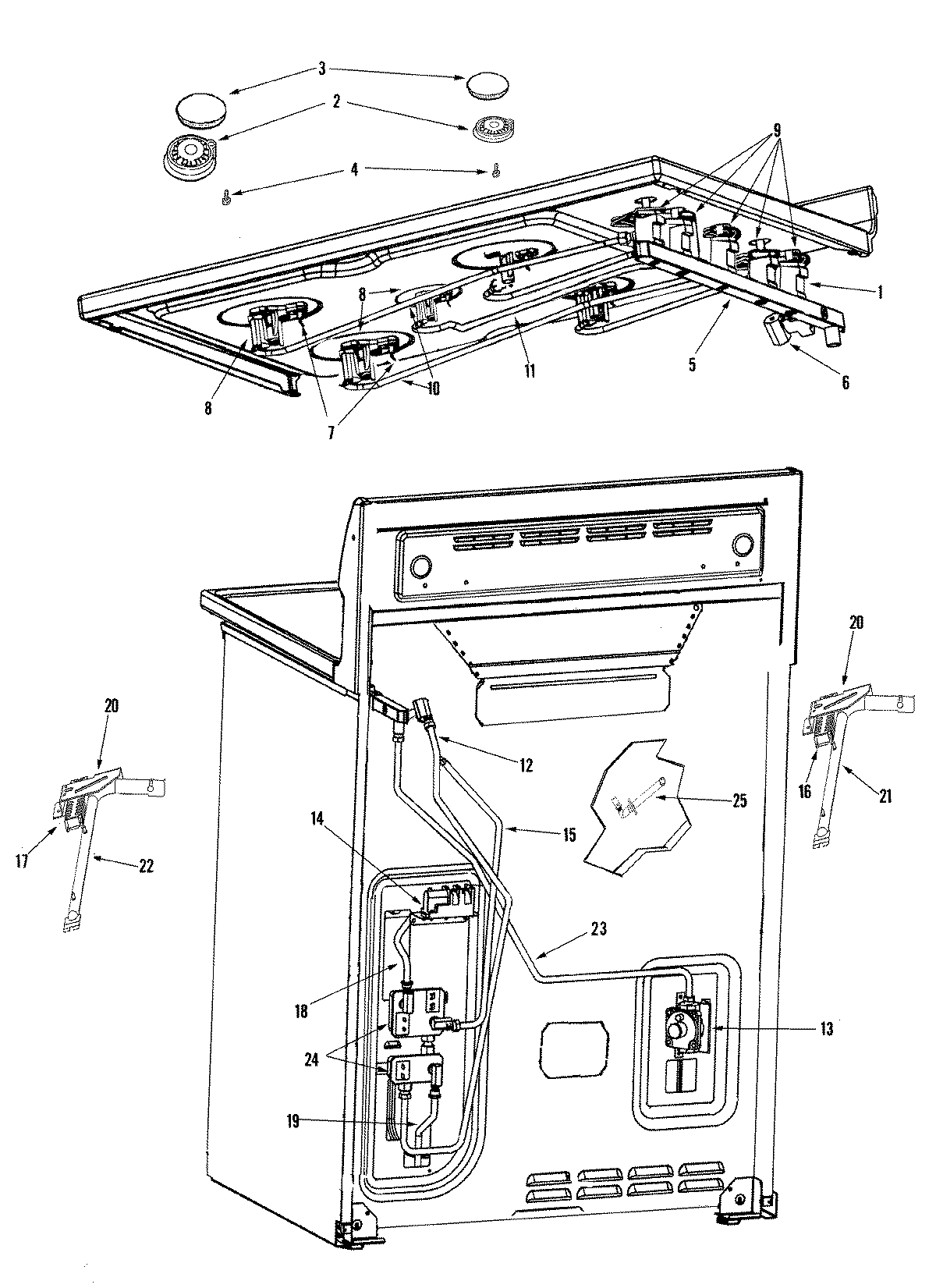

MGR6875ADB 05 – GAS CONTROLS

Products

PositionProduct
1MAY 12002268
1MAY 12002269
112002270 Whirlpool Valve Kit and Screw 16K
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WPW10406878 Whirlpool Burner Base (16K)
3WP74007925 Whirlpool Burner Cap
3WP74007415 Whirlpool Burner Cap
3WPW10154101 Whirlpool Burner Cap
3WP3191898 Whirlpool Surface Burner Cap Black
4WP400021-1 Whirlpool Screw
5MAY 74009904
5MAY 7513D535-60
6MAY 12002271
7WP8523793 Whirlpool Oven Surface Igniter
8WP7527P028-60 Whirlpool Dishwasher Orifice Holder
8WP7527P023-60 Whirlpool Orifice Holder
8WP7527P021-60 Whirlpool Orifice Holder
8WP74007961 Whirlpool Holder
9WP74008212 Whirlpool Seal Switch
9MAY W10136716
912002791 Whirlpool Igniter Switch Set
10MAY 74009240
11Tubing, (Center)
12MAY 74011291
12MAY 74010096
13MAY 74007387
1474009098 Whirlpool Spark Module
15MAY 74010095
15MAY 74011292
16WP74007966 Whirlpool Broil Igniter
17IGNTR-OVEN
17SCREW (10-24X5/16-NI)
18MAY 74011293
18MAY 74009246
19MAY 74007425
19MAY 74011296
19MAY 74007451
19MAY 74009247
20MAY 74007426
21MAY 74010093
22NUT, WING
22MAY 74010094
23MAY 74010098
24MAY 74007408
24SCREW
24WP74011290 Whirlpool Bake Valve
25MAY 74009901
25WP3387230 Whirlpool Screw
25MAY 74009910
25MAY 74010612
