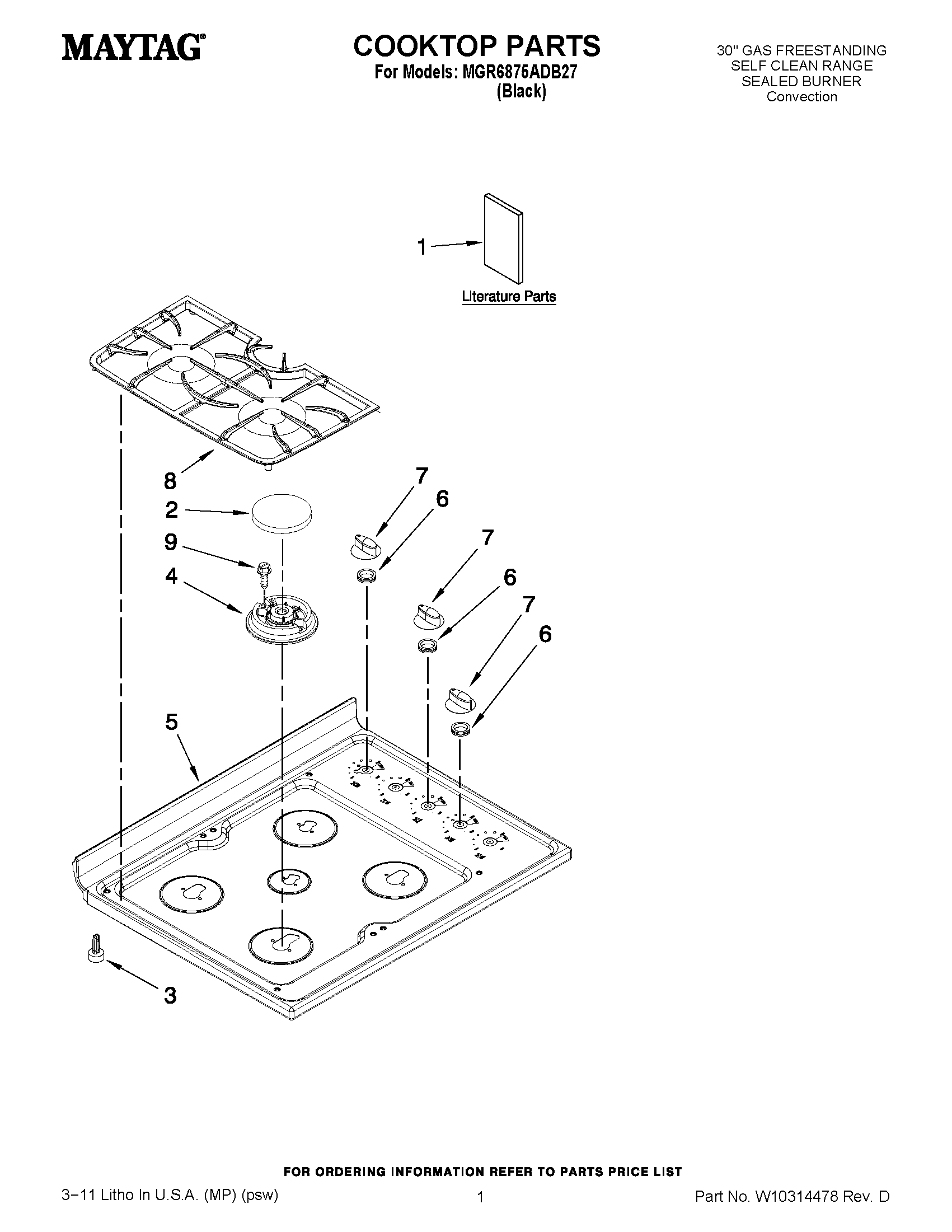

MGR6875ADB27 01 – COOKTOP PARTS

MGR6875ADB27 01 – COOKTOP PARTS

Written by

in

MGR6875ADB27 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1INSTRUCTIONS, LP CONVERSERSION
1MAY 8119P217-60
1MAY 8113P740-60
1MAY 8101P623-60
2CAP, BURNER (BLACK (LR/RR/RF))
2CAP, BURNER (BLACK (LF))
2CAP, BURNER (BLACK (3))
2CAP, BURNER (BLACK (1))
3GLIDE, MAIN TOP
4HEAD, BURNER (RF)
4BURNER (LR/RR/RF)
4HEAD, BURNER (LR/RR/LF)
4HEAD, BURNER CTR.
5COOKTOP (BLK)
6GROMMET, KNOB (4)
7MAY 7733P423-60
8GRATE, BURNER (INCLUDES BUMPERS)
9SCREW
