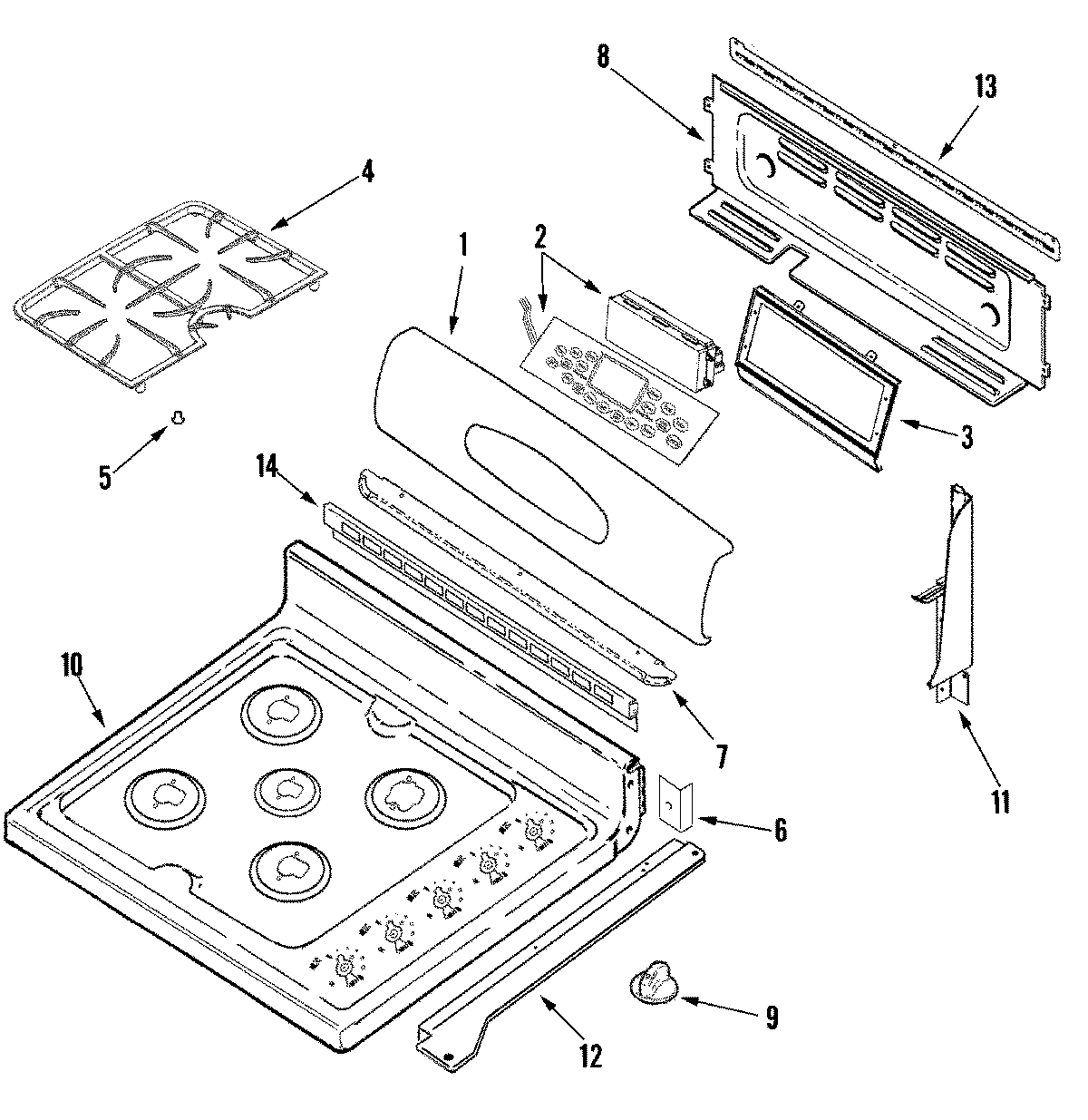

MGR6875ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6875ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6875ADQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010115
2MAY 74009985
3MAY 74010058
4MAY 74010127
5W10919249 Whirlpool Burner Grate Foot
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6MAY 74010106
7MAY 74007583
7MAY 74010100
8WP400021-1 Whirlpool Screw
8MAY 74010087
9MAY 74010080
9WP74005934 Whirlpool Grommet
10MAY 74010118
11WP74003976 Whirlpool Screw
11WP98008545 Whirlpool Screw
11MAY 74009668
11MAY 74009671
12MAY 74007369
12MAY 74007366
12MAY 74007367
13MAY 74010084
13SCREW
14MAY 7101P147-60
14MAY 74009796
