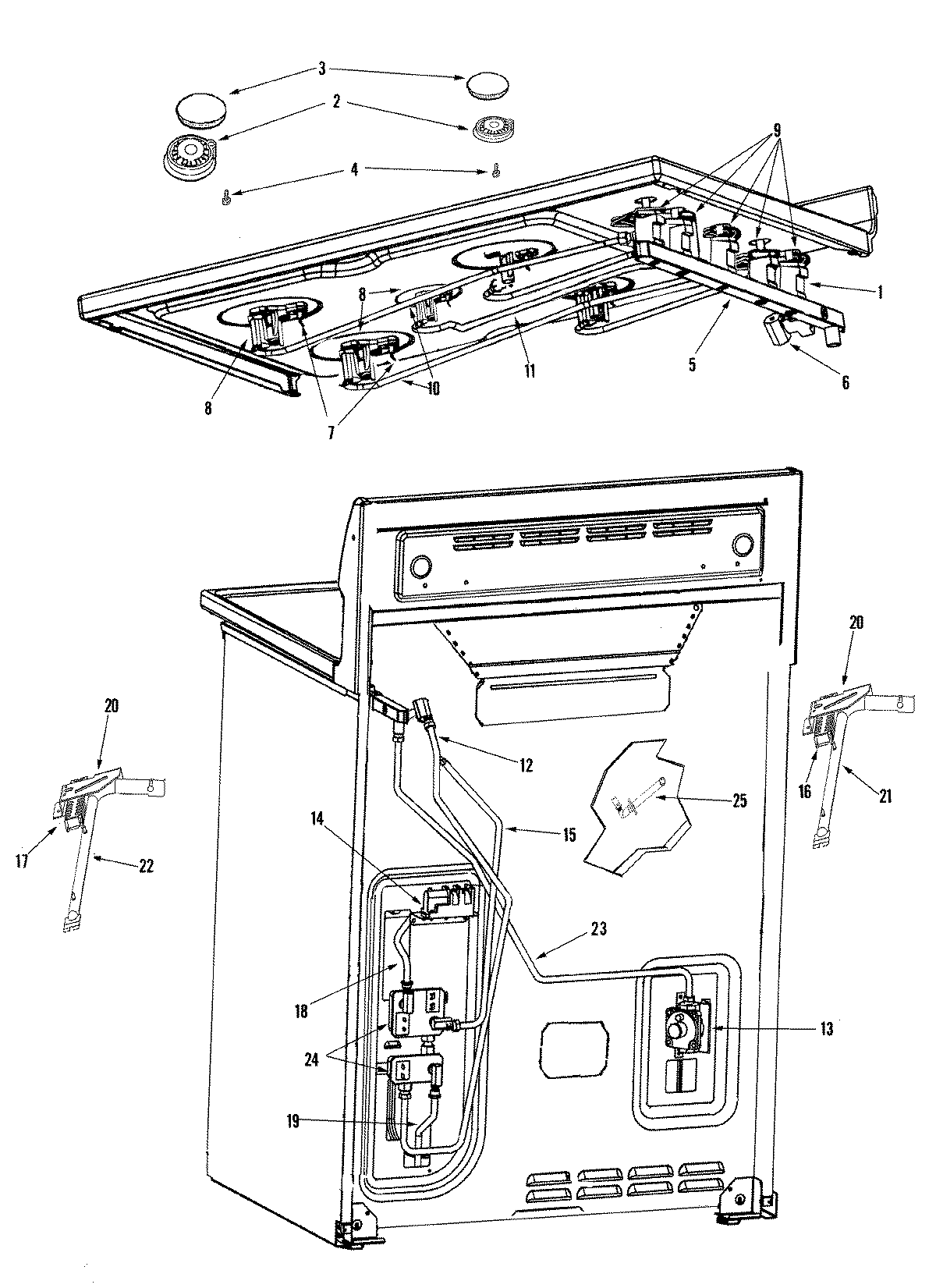

MGR6875ADQ 05 – GAS CONTROLS

Written by

Products

Position	Product
1	MAY 12002268
1	MAY 12002269
1	12002270 Whirlpool Valve Kit and Screw 16K
2	WPW10406878 Whirlpool Burner Base (16K)
2	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
2	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2	WPW10406243 Whirlpool Burner Head Auxiliary 6K
3	WP74007418 Whirlpool Burner Cap
3	WP74007417 Whirlpool Burner Cap
3	WP74007751 Whirlpool Burner Cap
3	WP74007419 Whirlpool Burner Cap
4	WP400021-1 Whirlpool Screw
5	MAY 74009904
6	MAY 12002271
7	WP8523793 Whirlpool Oven Surface Igniter
8	WP74007961 Whirlpool Holder
8	WP7527P021-60 Whirlpool Orifice Holder
8	WP7527P023-60 Whirlpool Orifice Holder
8	WP7527P028-60 Whirlpool Dishwasher Orifice Holder
9	WP74008212 Whirlpool Seal Switch
9	12002791 Whirlpool Igniter Switch Set
10	MAY 74009240
11	Tubing, (Center)
12	MAY 74011291
12	MAY 74010096
13	MAY 74007387
14	74009098 Whirlpool Spark Module
15	MAY 74010095
15	MAY 74011292
16	WP74007966 Whirlpool Broil Igniter
17	SCREW (10-24X5/16-NI)
17	IGNTR-OVEN
18	MAY 74009246
18	MAY 74011293
19	MAY 74007451
19	MAY 74011296
19	MAY 74007425
19	MAY 74009247
20	MAY 74007426
21	MAY 74010093
22	MAY 74010094
22	NUT, WING
23	MAY 74010098
24	MAY 74007408
24	SCREW
24	WP74011290 Whirlpool Bake Valve
25	WP3387230 Whirlpool Screw
25	MAY 74009910
25	MAY 74009901
25	MAY 74010612
