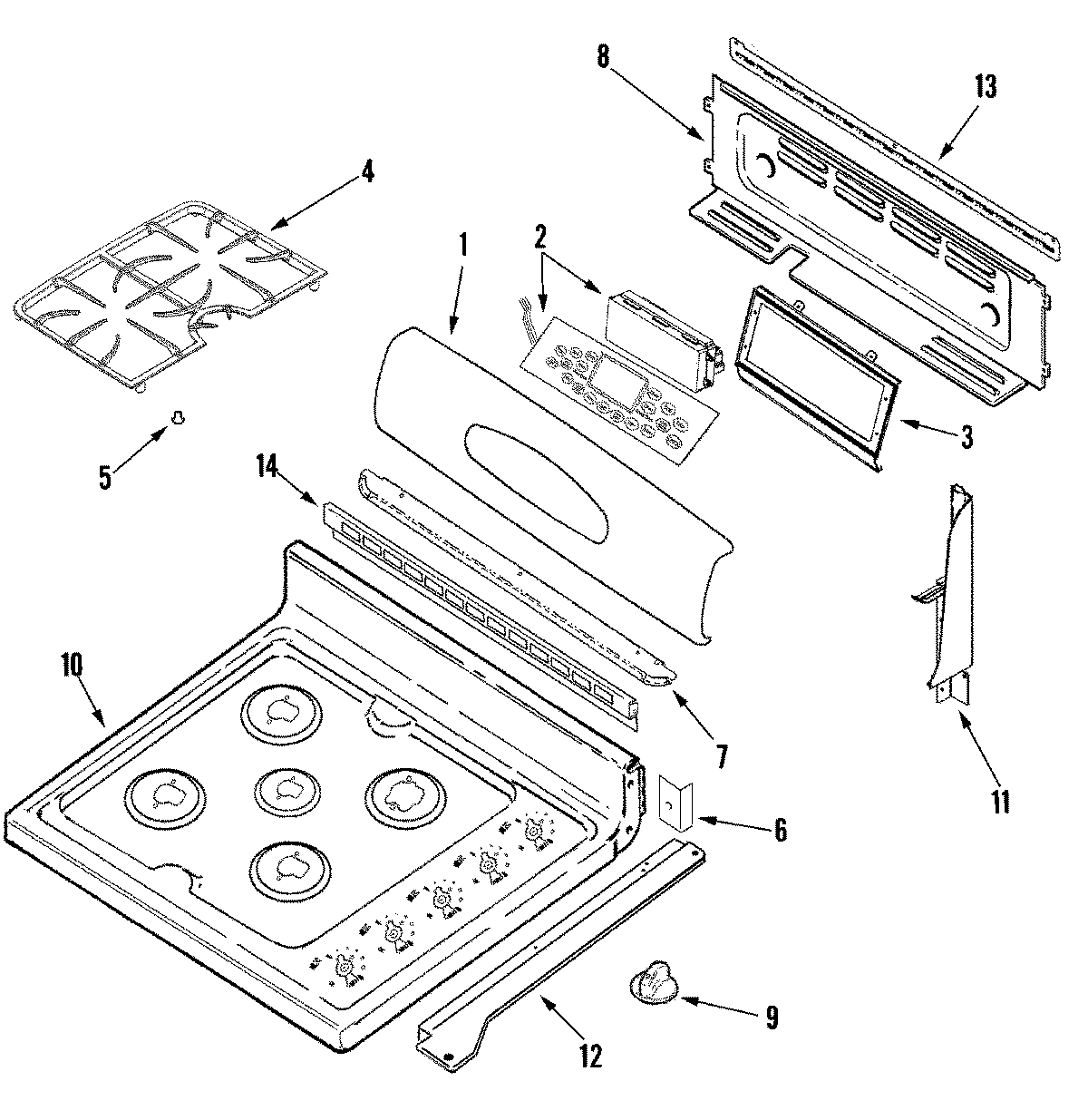

MGR6875ADS 02 – CONTROL PANEL/TOP ASSEMBLY

MGR6875ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR6875ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010112
2WP5701M802-60 Whirlpool Control Panel
3MAY 74010058
4MAY 74010125
5W10919249 Whirlpool Burner Grate Foot
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6MAY 74010106
774003975 Whirlpool Screw P1 (8ABX3/8-BLK)
7MAY 74009656
8MAY 74010087
8WP400021-1 Whirlpool Screw
9WPL 74010079
9WP74005934 Whirlpool Grommet
10MAY 74010116
11MAY 74009670
11MAY 74009673
11WP74009541 Whirlpool Screw Assembly
11WP74003976 Whirlpool Screw
12MAY 74007367
12MAY 74007369
12MAY 74007366
13SCREW
13MAY 74010084
14MAY 74009797
14MAY 7101P147-60
