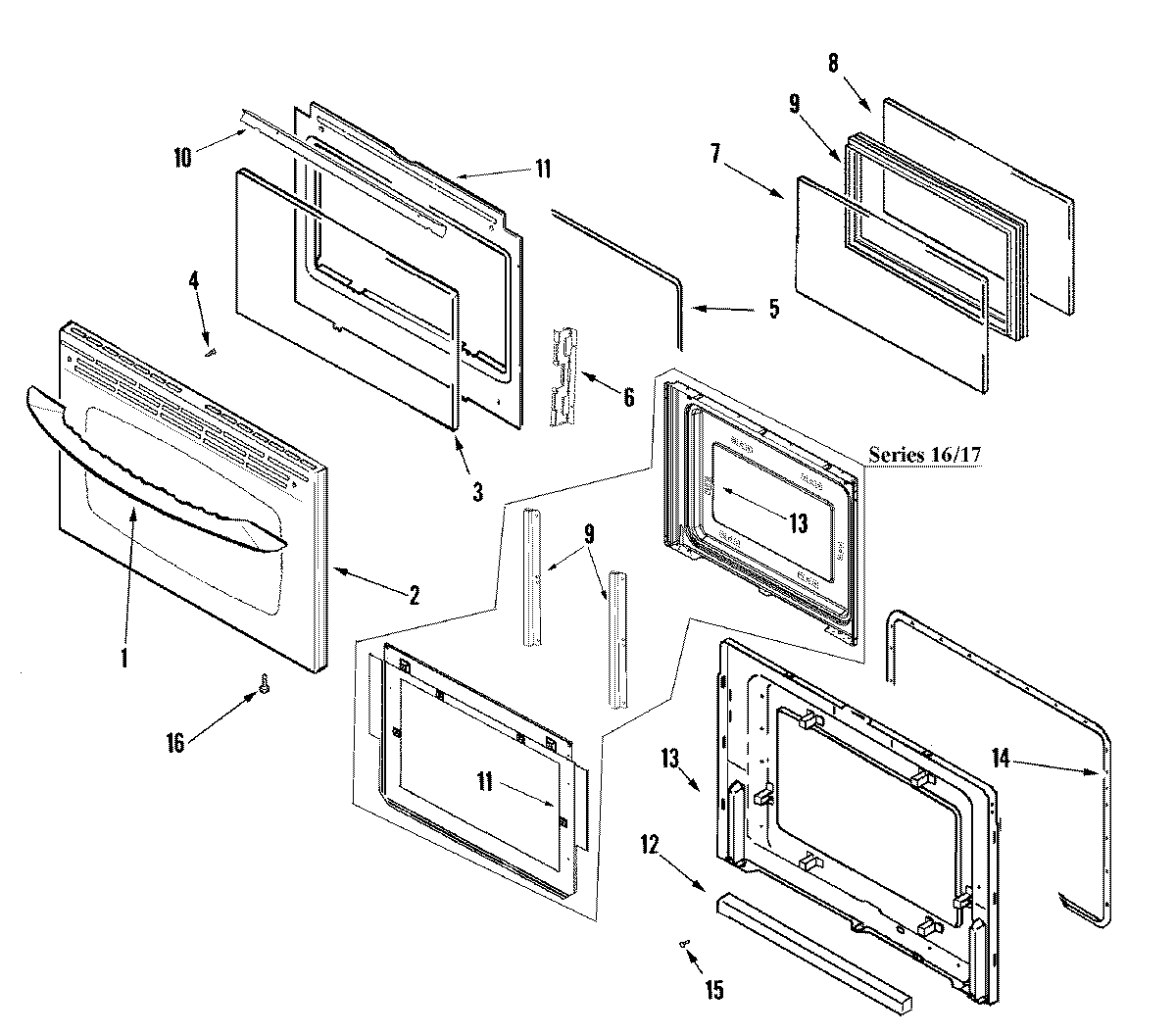

MGR6875ADS 03 – DOOR (LOWER-STL)

MGR6875ADS 03 – DOOR (LOWER-STL)

Written by

in

MGR6875ADS 03 – DOOR (LOWER-STL)

Products

PositionProduct
1WP7701P526-60 Whirlpool Door Handle
2NUT, SNAP (ROUND-BLK)
2MAY 12002465
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
4MAY 74011772
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
93801F886-51 Whirlpool Mounting Bracket
9FRAME, GLASS
9SCREW, 8 X 1/2
10MAY 74011921
10MAY 74010040
113601F373-51 Whirlpool Baffle
11MAY 74009502
12INSULATION, OVEN DOOR
13LINING, DOOR
13MAY 74003642
14GASKT-DOOR OVEN
16SCREW
