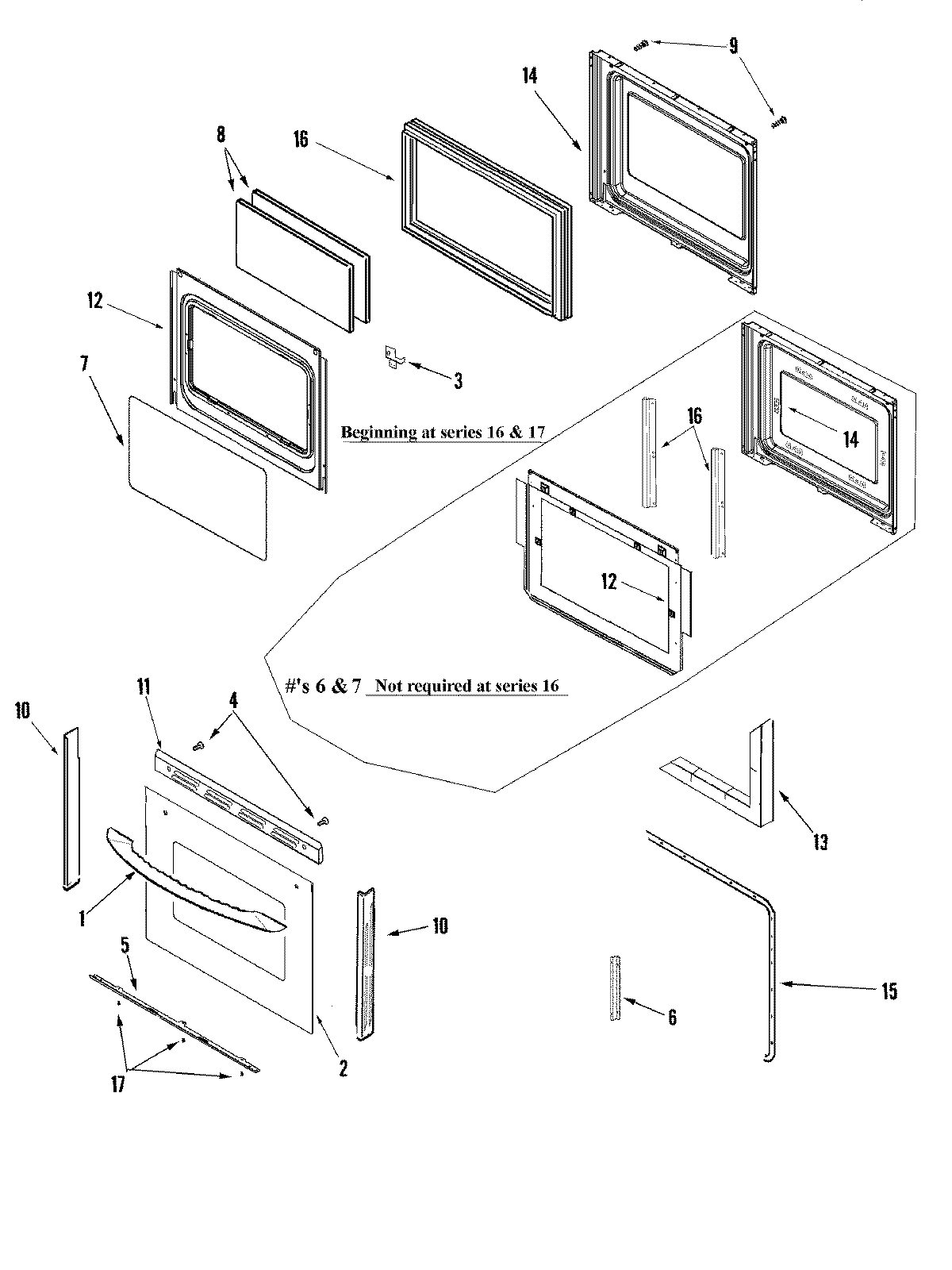

MGR6875ADW 03 – DOOR (LOWER)

MGR6875ADW 03 – DOOR (LOWER)

Written by

in

MGR6875ADW 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011768 Whirlpool Door Handle
2MAY 12002396
3SCREW (10ABX1/4P TR ZN)
33801F832-45 Whirlpool Bracket
3WP74005546 Whirlpool RU Spacer
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7GLASS, DOOR
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F116-71 Whirlpool Door Trim
10WP3608F117-71 Whirlpool Door Trim
10WP74009014 Whirlpool Double Tape
11WP3608F141-71 Whirlpool Door Trim
11WP98008544 Whirlpool Screw Assembly
12MAY 74009502
123601F373-51 Whirlpool Baffle
12MAY 7101P356-60
13INSULATION, OVEN DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
14NUT, SNAP (ROUND-WHT)
14LINING, DOOR
15GASKT-DOOR OVEN
163801F886-51 Whirlpool Mounting Bracket
16SCREW, 8 X 1/2
16FRAME, GLASS
16SCREW
