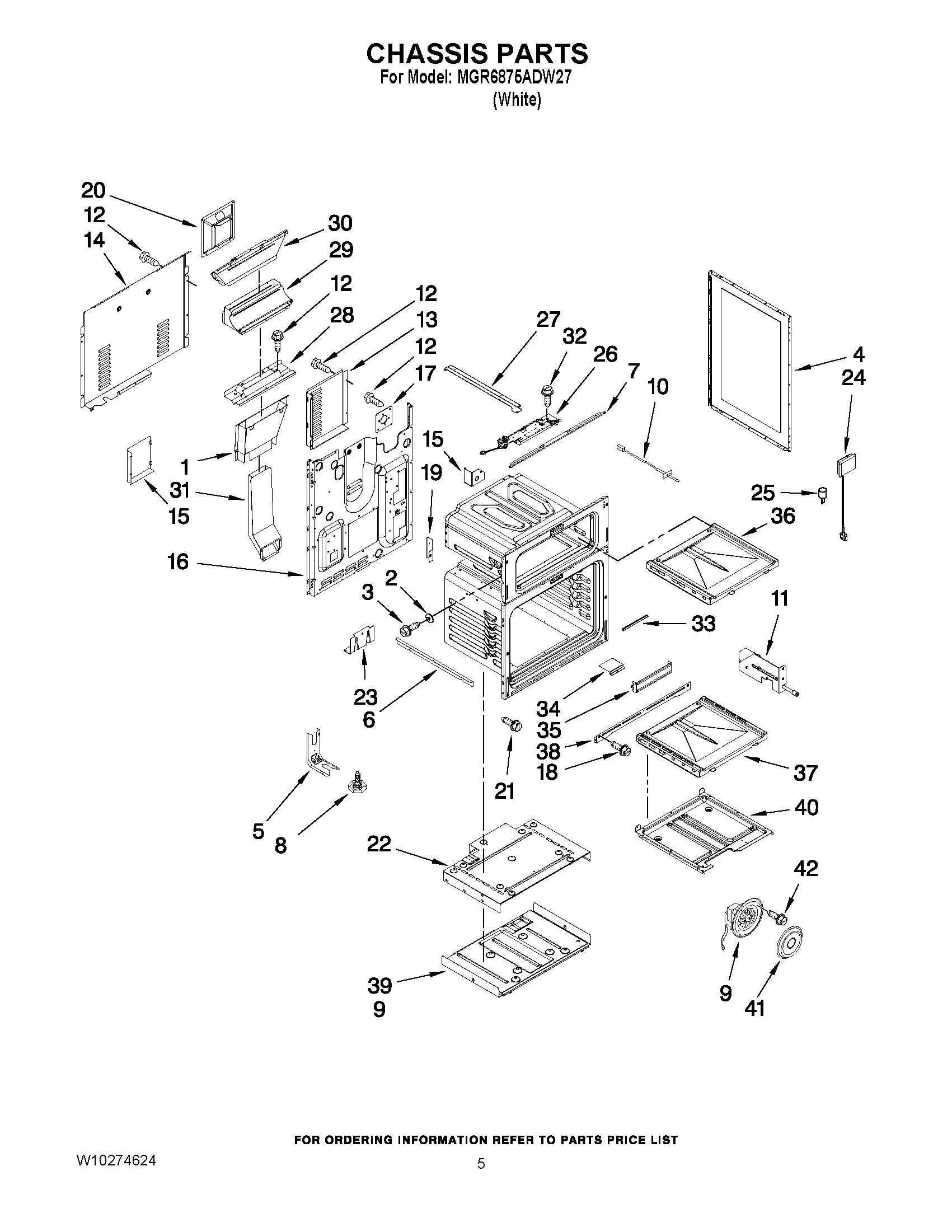

MGR6875ADW27 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P415-60
NI	MAY 7002P419-60
NI	MAY 7002P310-60
NI	MAY 7002P413-60
1	MAY 3826W047-45
2	MAY 8004P024-60
3	MAY 7101P618-60
4	Panel, Side (White) (2)
5	BRACKET, ANTI-TIP
6	MAY 3823F015-51
7	MAY 3801F924-80
8	Leg, Leveling
9	MAY W10206589
10	Sensor, Oven
10	MAY 7430P045-60
11	MAY 7450P108-60
12	MAY 7101P388-60
13	MAY 4005F743-51
14	COVER, MAIN WIRE
15	MAY 3801F706-51
15	MAY 3801F705-51
16	MAY W10180198
17	MAY 3807F647-45
18	MAY 7101P636-60
19	MAY 3807F644-45
19	MAY 3807F643-45
22	COVER, RETAINER
23	MAY W10260703
24	ASSEMBLY, LIGHT
25	BULB, OVEN
26	MAY 8002P077-60
27	BOTTOM, BURNER BOX (LEFT)
27	BOTTOM, BURNER BOX (RIGHT)
28	MAY 3601F321-50
29	MAY 3826W042-45
30	MAY 4022W055-45
31	MAY 3826W052-45
32	Screw (Black) (2)
33	MAY 7212P066-60
34	MAY 4005F736-45
35	MAY 3601F308-19
36	MAY 2205F055-19
37	MAY 2205F051-19
38	TRIM, KICKPLATE (BLACK)
39	RETAINER, INSUL BOTTOM
40	MAY 3401F090-45
40	MAY 3401F091-45
41	MAY 3605F338-19
42	MAY 7101P385-60
