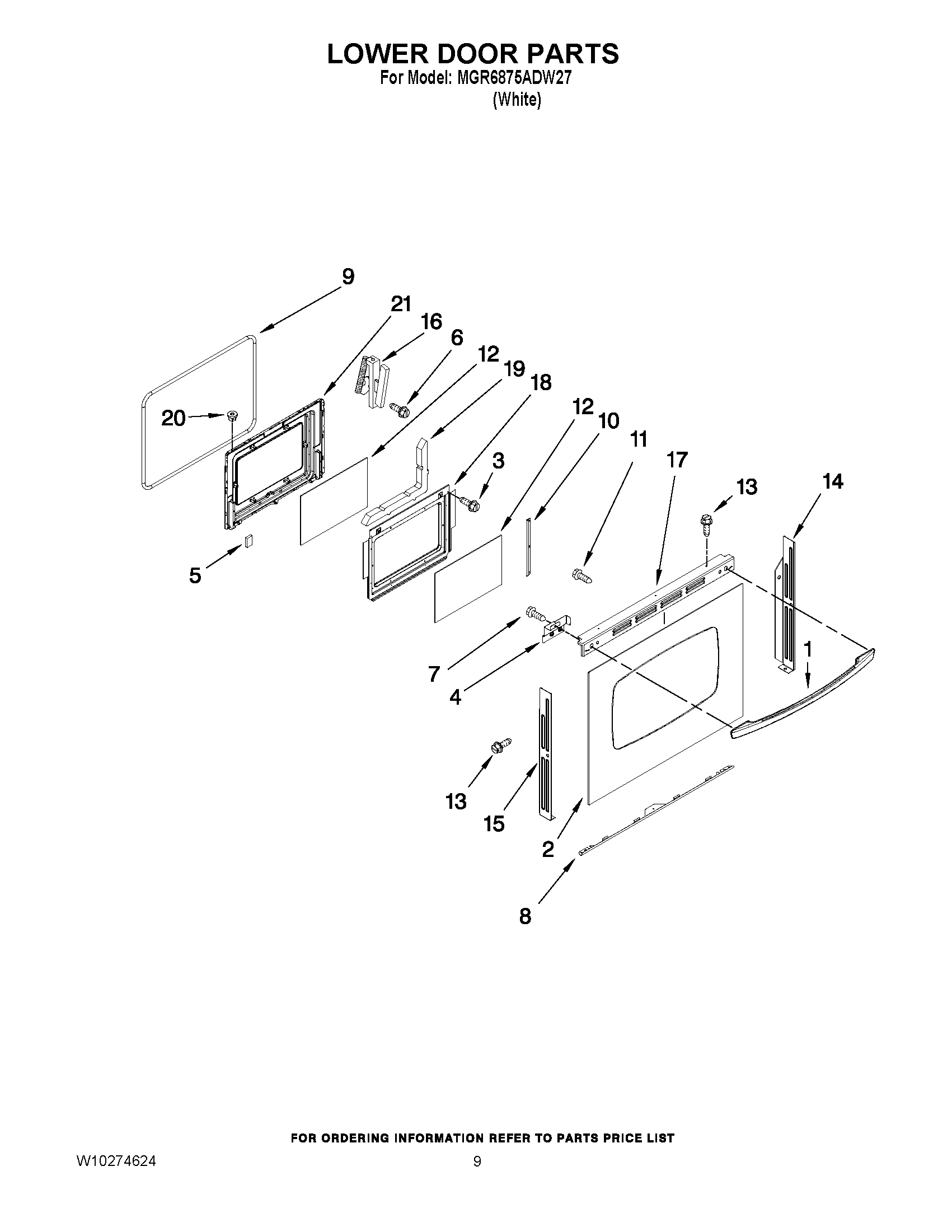

MGR6875ADW27 06 – LOWER DOOR PARTS

Products

Position	Product
1	MAY 7701P517-60
2	GLASS, DOOR (INCL. FOIL TAPE) (WHITE)
3	MAY 7101P388-60
4	MAY 3801F832-45
4	MAY 3801F831-45
5	MAY 8010P130-60
6	SCREW (10ABX1/4P TR ZN)
8	MAY 3807F708-71
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	MAY 7101P681-60
14	MAY 3608F116-71
15	MAY 3608F117-71
16	MAY 7106P141-60
17	MAY 3608F141-71
18	MAY 3601F373-51
19	MAY 7002P246-60
20	MAY 7103P141-60
20	NUT, SNAP (ROUND-WHT)
21	MAY 2402W312-19
