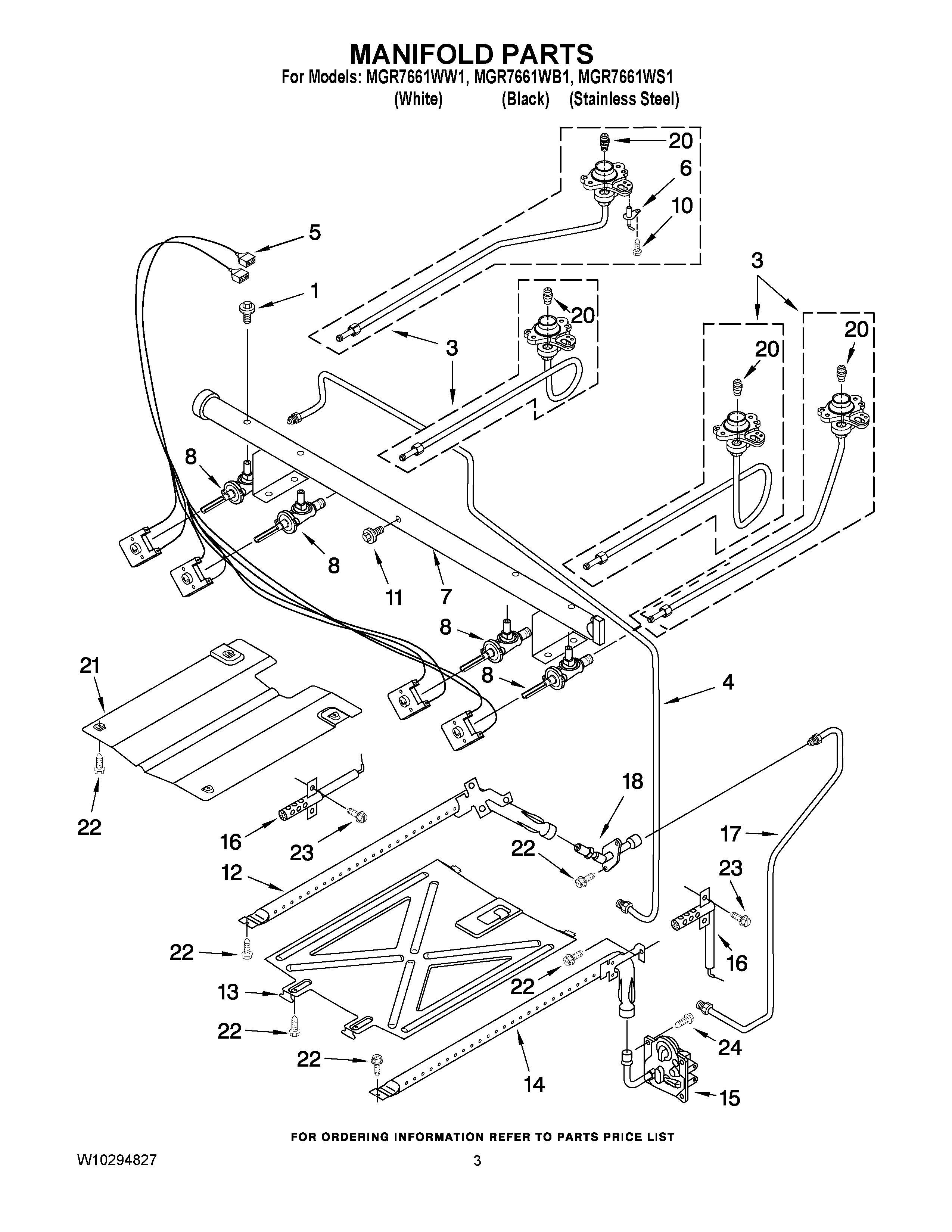

MGR7661WB1 03 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 4)
1	MAY 8273096
3	TUBING, BURNER (W/ORIFICE (LEFT REAR))
3	TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3	Tubing, Burner W/Orifice (Right Front)
3	TUBING, BURNER (W/ORIFICE (LEFT FRONT))
4	Tubing (Manifold to Regulator)
5	MAY 8523406
6	Electrode (4)
7	MAY W10176502
8	Valve (LF – RF – LR)
8	VALVE(RIGHT REAR)
10	MAY 8273062
11	BOLT
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	Valve/Regulator
16	Igniter (Broil)
16	ELECTRODE, BAKE
17	MAY 8272222
18	MAY 3186489
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	MAY W10185023
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
23	Screw
24	SCREW
