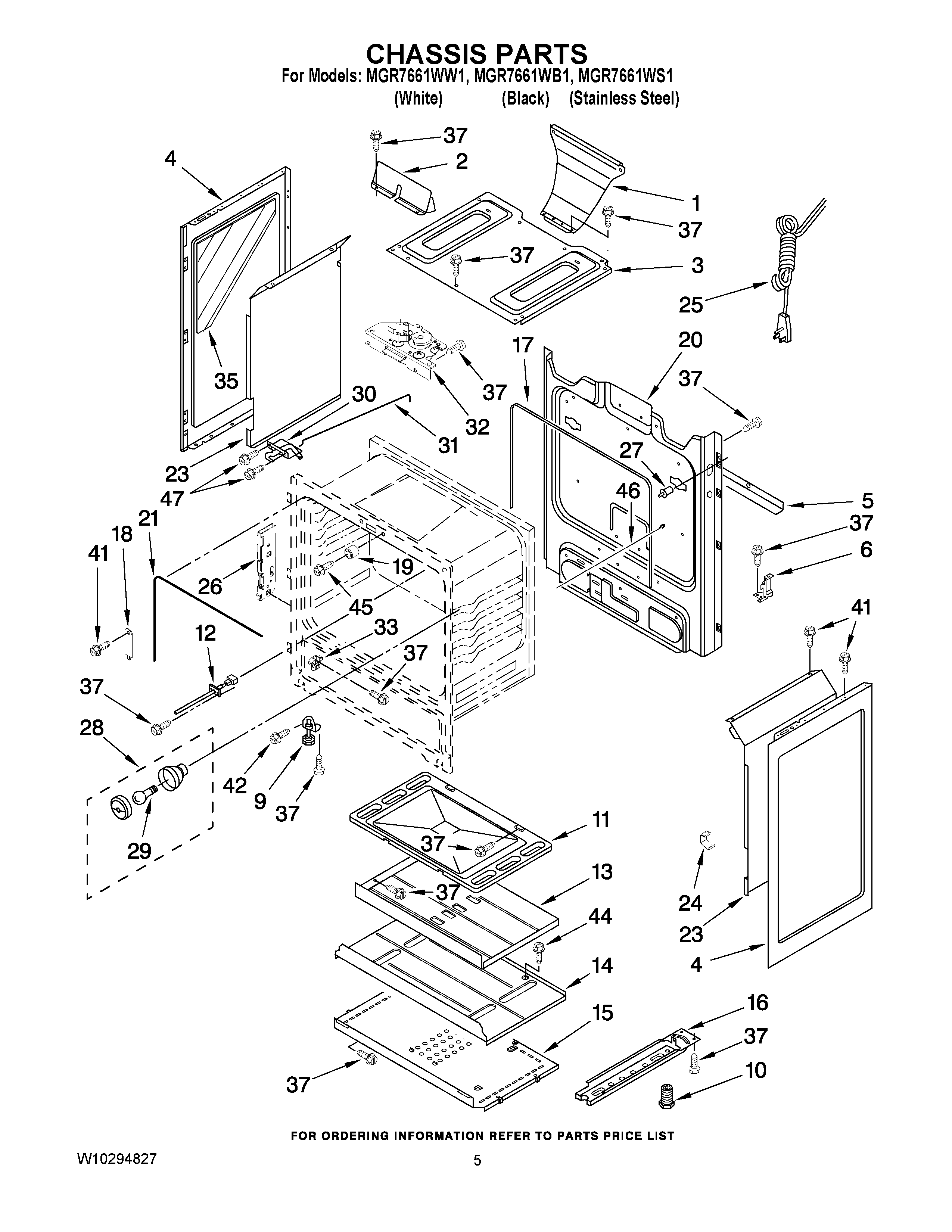

MGR7661WB1 04 – CHASSIS PARTSadmin2025-04-26T09:14:26+00:00MGR7661WB1 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | MAY 8272613 |
| NI | INSULATION, WRAP |
| 1 | BOX, FLUE |
| 2 | SHIELD, FLUE |
| 3 | BOX-BURNER, GAS SEALED |
| 4 | MAY 8053832 |
| 4 | Panel, Side (2) (White) |
| 5 | MAY 8053971 |
| 6 | BRACKET, MANIFOLD |
| 9 | MAY 3196037 |
| 10 | FOOT, LEVELING |
| 11 | BOTTOM, OVEN |
| 12 | SENSOR, OVEN |
| 13 | BAFFLE, BURNER OVEN |
| 14 | SHIELD, HEAT |
| 15 | SHIELD, LOWER |
| 16 | RAIL, BASE |
| 17 | MAY W10008830 |
| 18 | Clip,Door Mntg(2) |
| 19 | SPACER, DOOR |
| 20 | MAY W10222733 |
| 21 | MAY 8522416 |
| 23 | MAY 9761449 |
| 23 | MAY 9761448 |
| 24 | CLIP, PANEL |
| 25 | Cord, Power |
| 26 | BRKT - MOUNTING |
| 27 | MAY 9757262 |
| 28 | MAY 3196701 |
| 29 | BULB, OVEN LIGHT |
| 30 | ASSEMBLY, DOOR LATCH (FRONT) |
| 31 | ROD, PUSH LATCH |
| 32 | ASSEMBLY, DOOR LATCH (REAR) |
| 33 | Glide, Drawer |
| 35 | MAY W10182346 |
| 37 | Screw (White) |
| 37 | MAY 3196152 |
| 41 | MAY W10031780 |
| 42 | Screw |
| 44 | Screw |
| 45 | Screw (Black) |
| 46 | ROD, DOOR SWITCH |
| 47 | SCREW |
