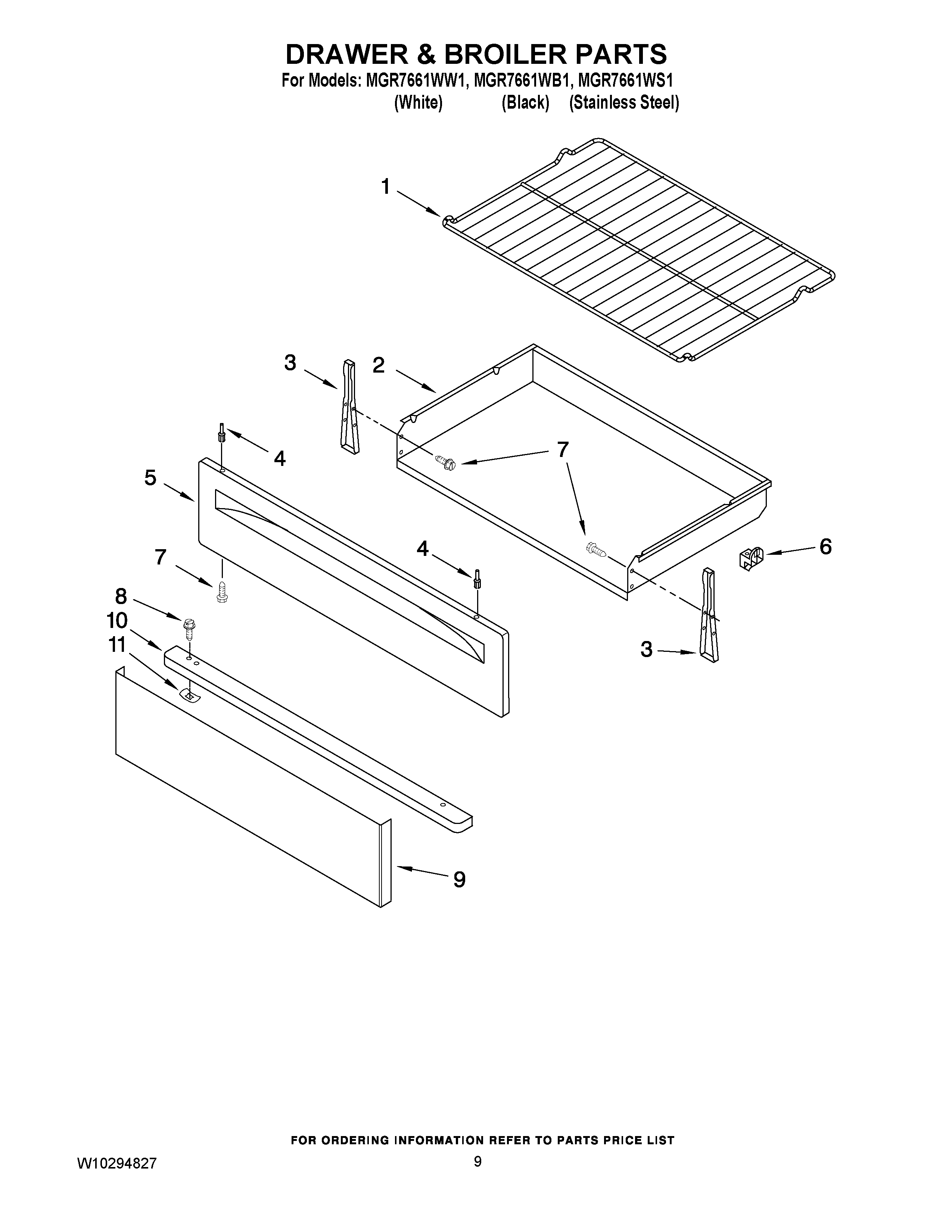

MGR7661WB1 06 – DRAWER & BROILER PARTS

MGR7661WB1 06 – DRAWER & BROILER PARTS

Written by

in

MGR7661WB1 06 – DRAWER & BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	MAY 9761031
3	Bracket, Drawer(2)
4	RIVET, PUSH (BLACK)
4	RIVET, PUSH (WHITE)
5	MAY W10022100
5	MAY W10022090
5	PANEL, DRAWER (BLACK)
6	GLIDE, DRAWER
8	Screw (Black)
9	PANEL (STLS STEEL)
10	Handle(Stls.Model)
11	CLIP(STLS.MODEL)
