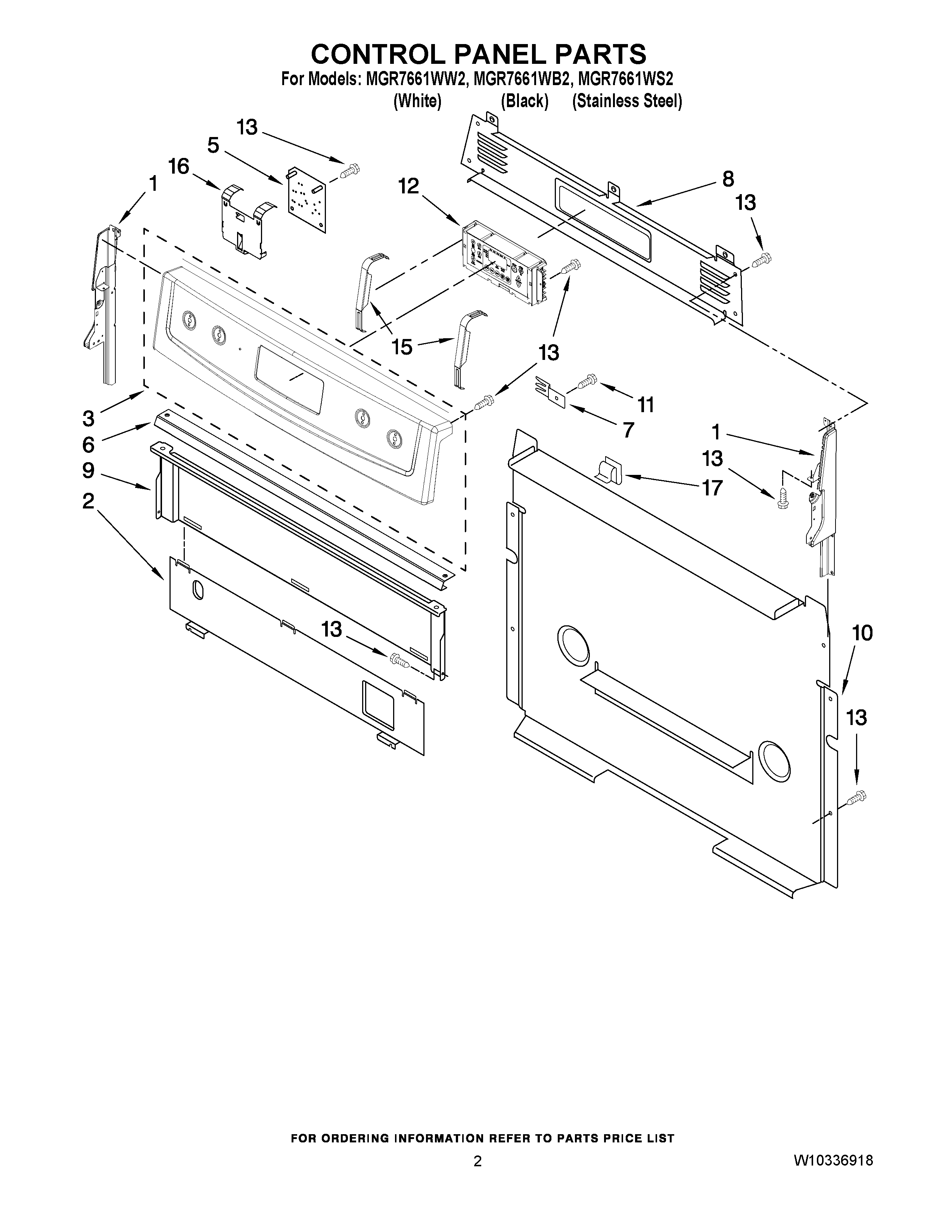

MGR7661WB2 02 – CONTROL PANEL PARTSadmin2025-04-26T09:13:03+00:00MGR7661WB2 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 2 | SHIELD, HEAT |
| 3 | MAY W10292029 |
| 3 | MAY W10292030 |
| 3 | MAY W10292031 |
| 5 | MAY 9758080 |
| 6 | BRKT-MNTG,CONSOLE |
| 7 | BRACKET, REAR COOKTOP |
| 8 | COVER, UPPER |
| 9 | SHIELD, HEAT |
| 10 | COVER, BACK |
| 11 | SCREW |
| 12 | CONTROL, RANGE LCC95 (WHITE / LCC95) |
| 12 | CONTROL, RANGE LCC95 (BLACK / LCC95) |
| 13 | SCREW |
| 15 | BRACKET, MOUNTING, EOC |
| 16 | Brkt-Mntg, DSI |
| 17 | MAY 8273564 |
