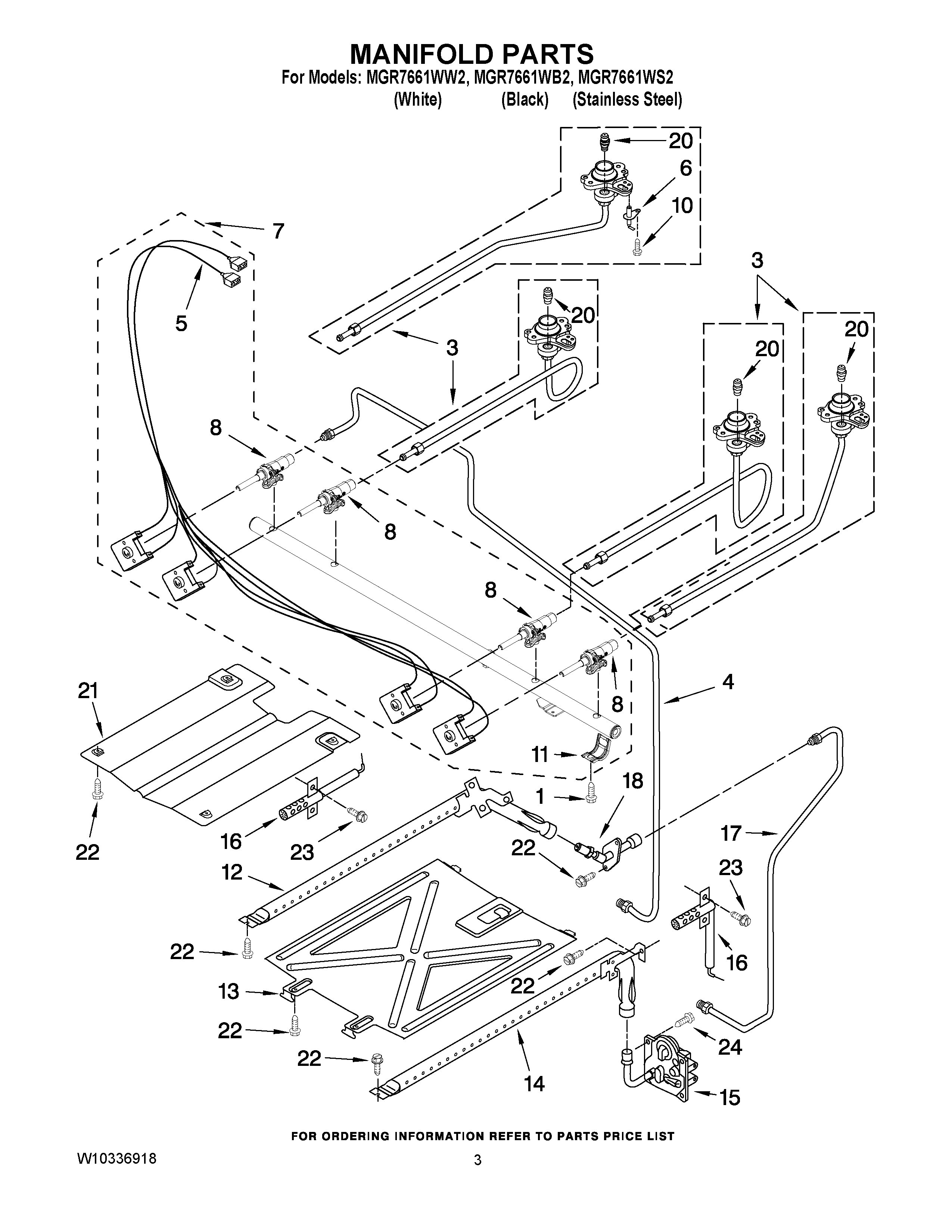

MGR7661WB2 03 – MANIFOLD PARTS

MGR7661WB2 03 – MANIFOLD PARTS

Written by

in

MGR7661WB2 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (KIT OF 4)
1SCREW, VALVE
3Tubing, Burner W/Orifice (Right Front)
3TUBING, BURNER (W/ORIFICE (LEFT FRONT))
3TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3TUBING, BURNER (W/ORIFICE (LEFT REAR))
4TUBING (MANIFOLD TO REGULATOR)
5MAY W10295998
6Electrode (4)
7MAY W10314242
8VALVE, GAS (LEFT REAR)
8VALVE, GAS (RIGHT REAR)
10MAY 8273062
11BRACKET, SADDLE VALVE
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15Valve/Regulator
16Igniter (Broil)
16ELECTRODE, BAKE
17MAY 8272222
18MAY 3186489
20MAY W10185023
20ORIFICE, NATURAL (9.5K) (LEFT REAR)
20ORIFICE, NATURAL (5K) (RIGHT REAR)
21SPREADER, FLAME (BROILER)
22SCREW
23Screw
24SCREW
